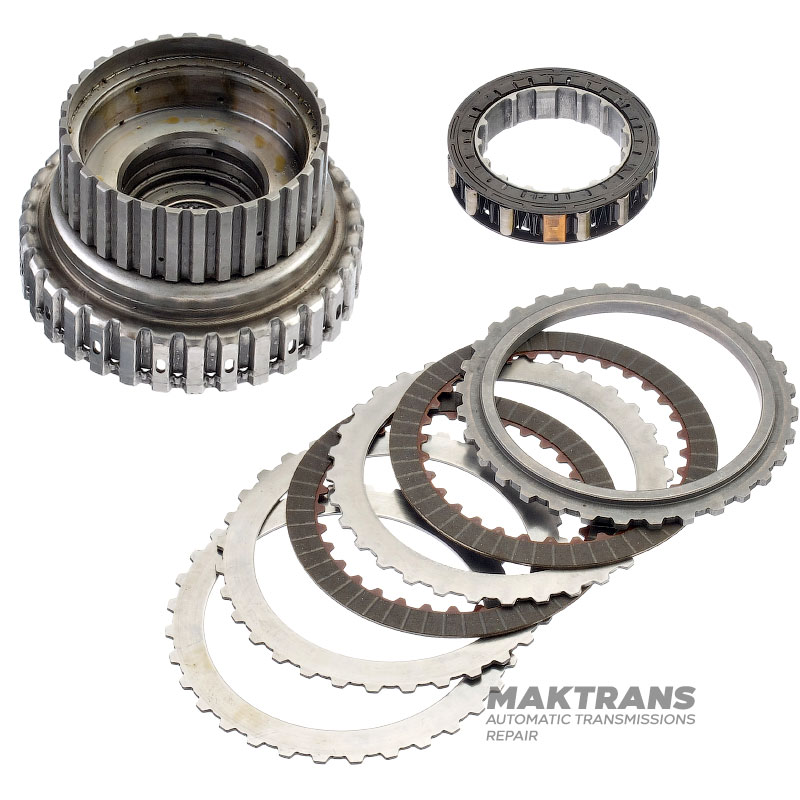

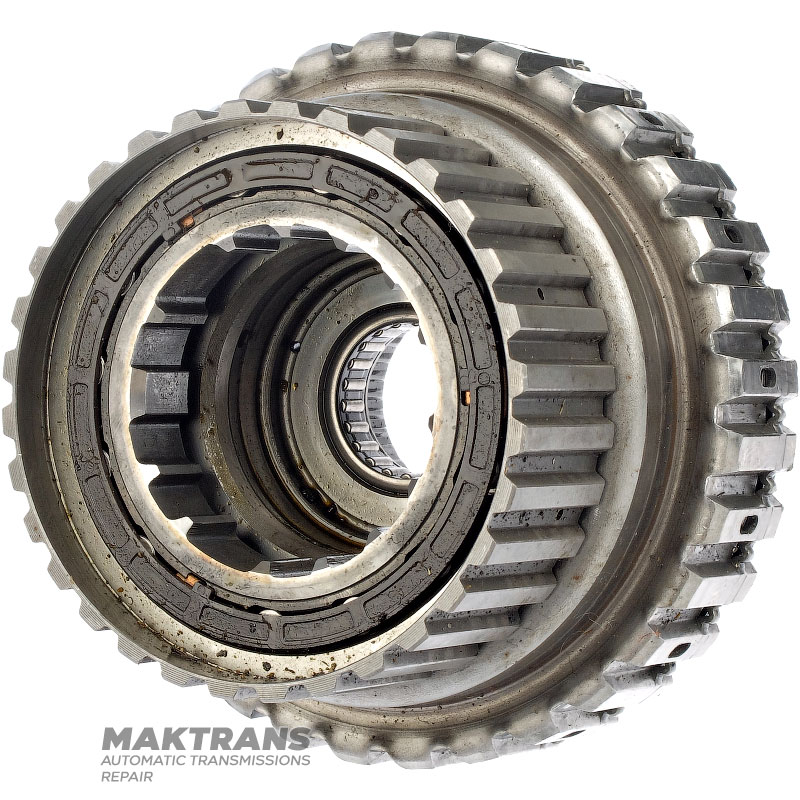

Drum DIRECT Clutch MAZDA FNR5 - with overrunning clutch, 2 friction discs (thickness 11.45 mm)

• Total height - 75 mm;
• The outer diameter of the DIRECT Clutch drum is 125.25 mm;
• The height from the piston to the retaining ring (on the inside) is 12 mm;

Reduction Brake Hub:

• Hub height - 33 mm;
• The outer diameter of the hub is 95.80 mm;

DIRECT Clutch Steel and Friction Disc Set:

Pressure disk:

• Thickness - 5.80 mm / 3 mm;
• Inner diameter - 94.25 mm;
• Number of teeth - 32 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 1.80 mm;
• Outer diameter - 115 mm;
• Number of teeth - 32 pcs.;
• Number of discs included - 2 pcs.;

Steel disc:

• Thickness - 1.60 mm;
• Inner diameter - 94.25 mm;
• Number of teeth - 32 pcs.;
• Number of discs included - 3 pcs.;
