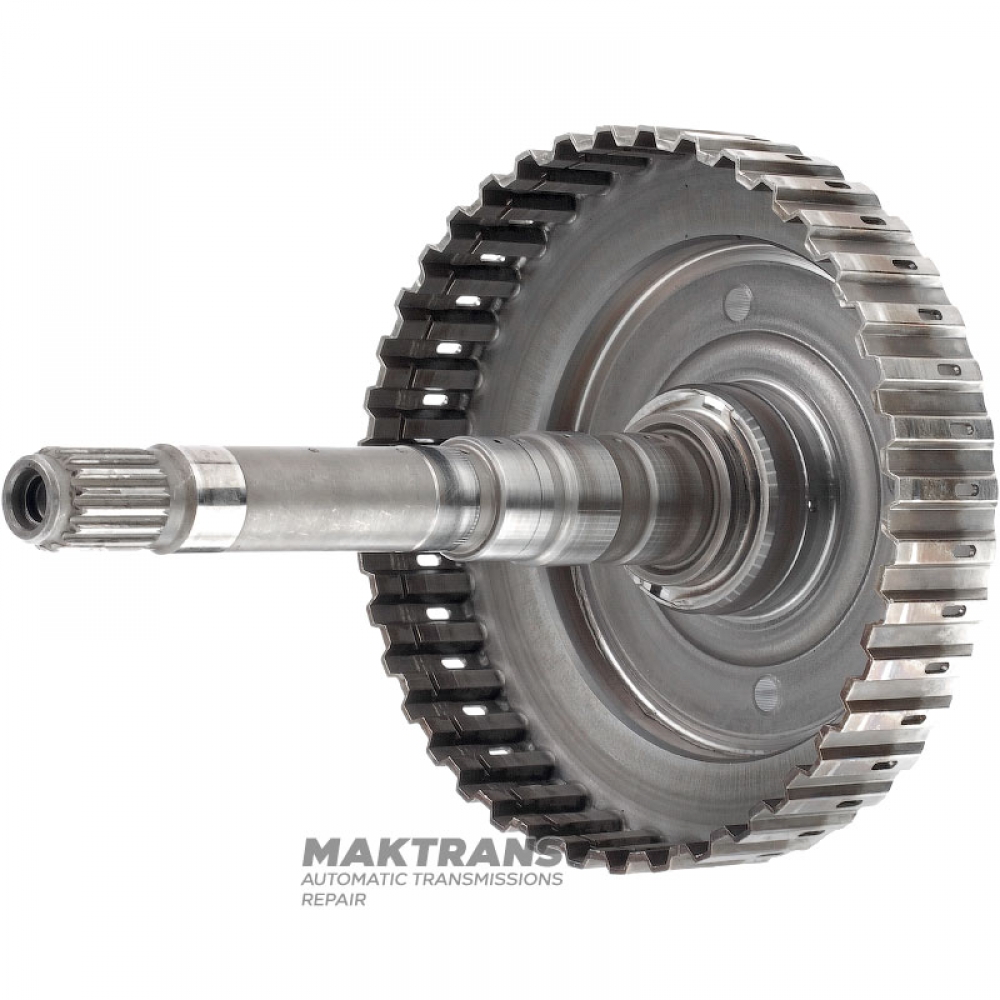

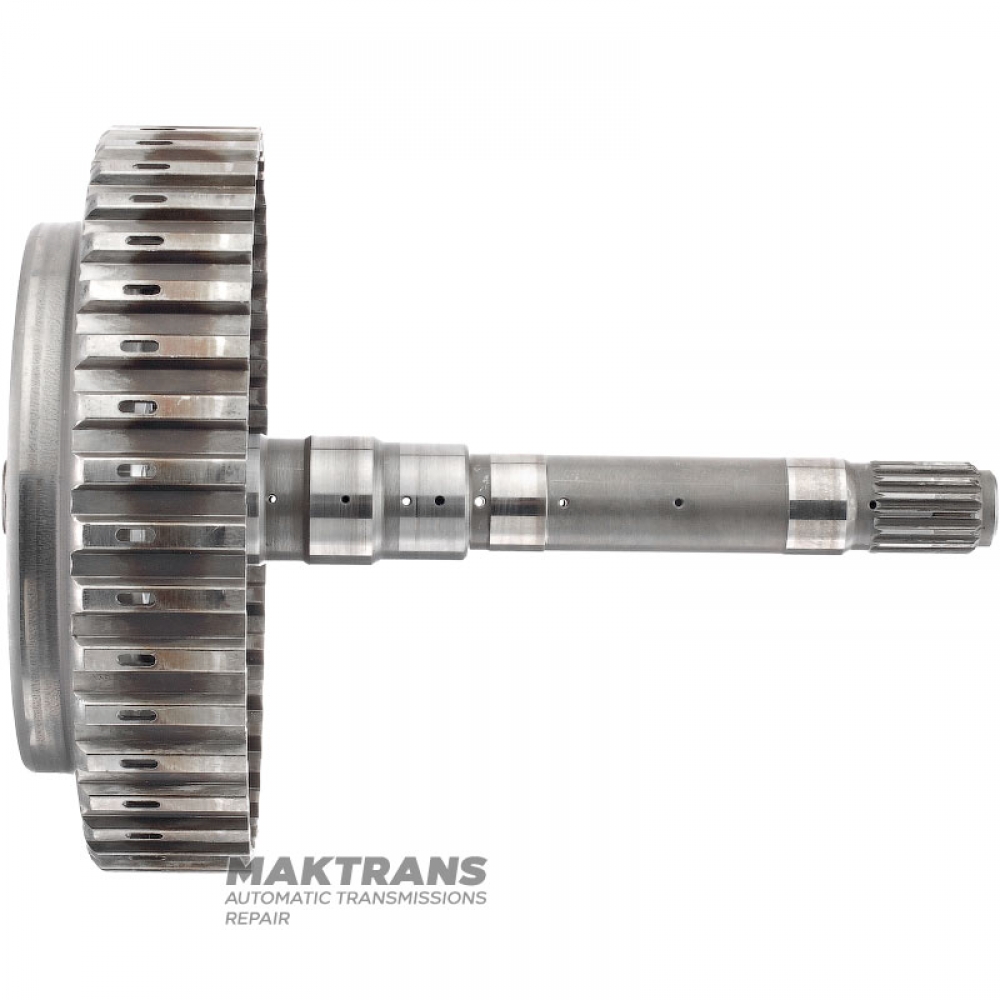

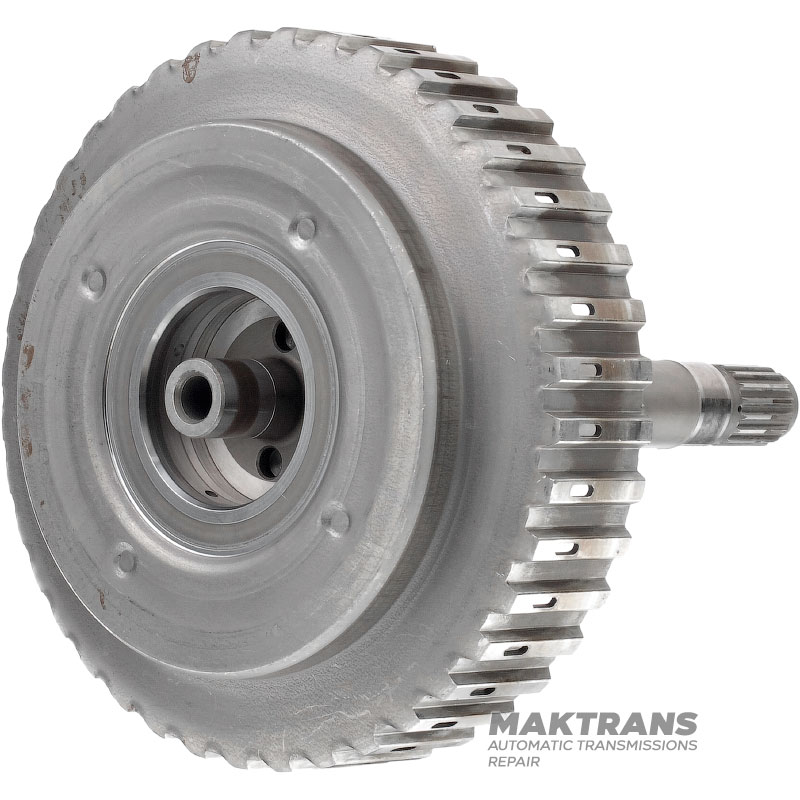

Drum Direct Clutch TOYOTA U140 / U240 35605-28010 3560528010 - empty, without discs and pistons

• Total height - 226 mm;
• Outer diameter of the drum - 169.50 mm;
• Number of splines on the shaft - 16 pcs.;
• The outer diameter of the spline part is 21.40 mm;
• Outer diameter of the working parts of the shaft:
  • 23mm;
  • 27.30 mm;
  • 30.15 mm;

The height from the retaining ring to the end of the drum is 3.3 mm;

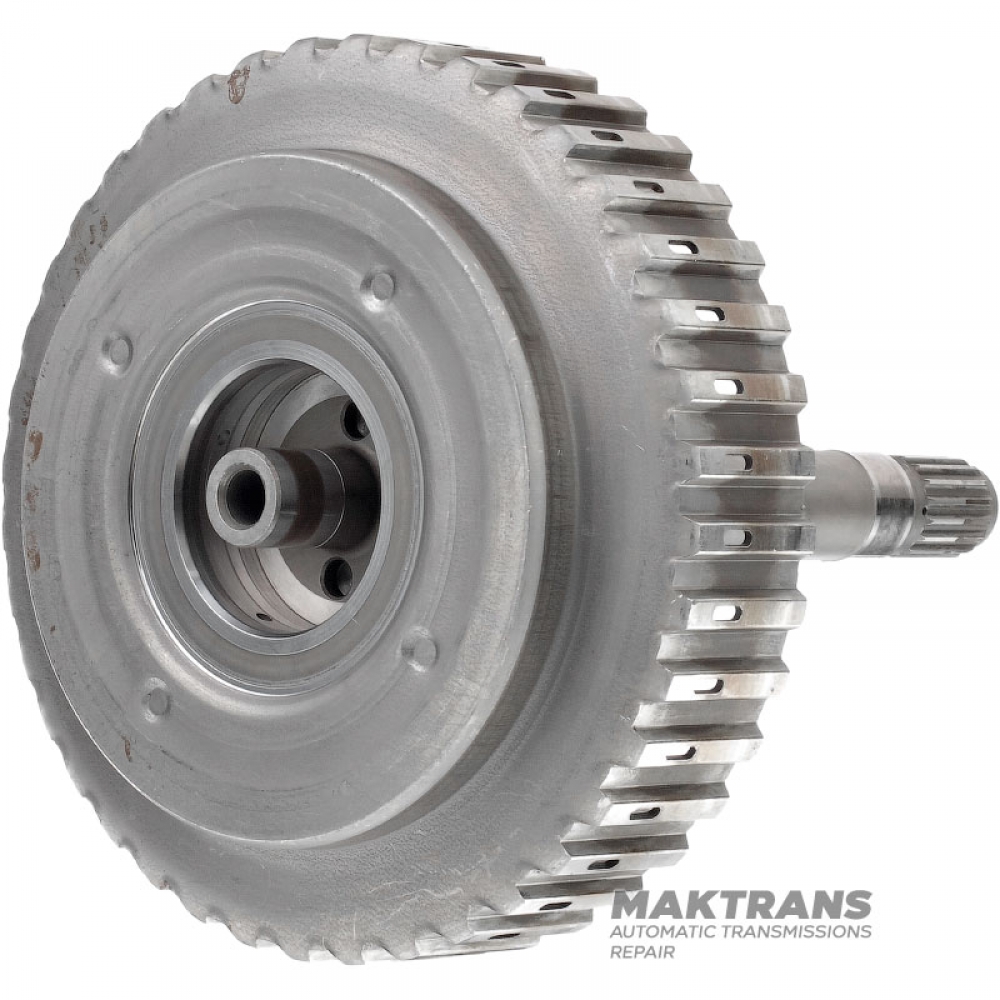

Rear side of the drum:

• Pilot height - 27.50 mm;
• Pilot diameter - 17.90 mm;
• Inner diameter for the hub - 48.60 mm;
• Depth under the hub - 20 mm;
