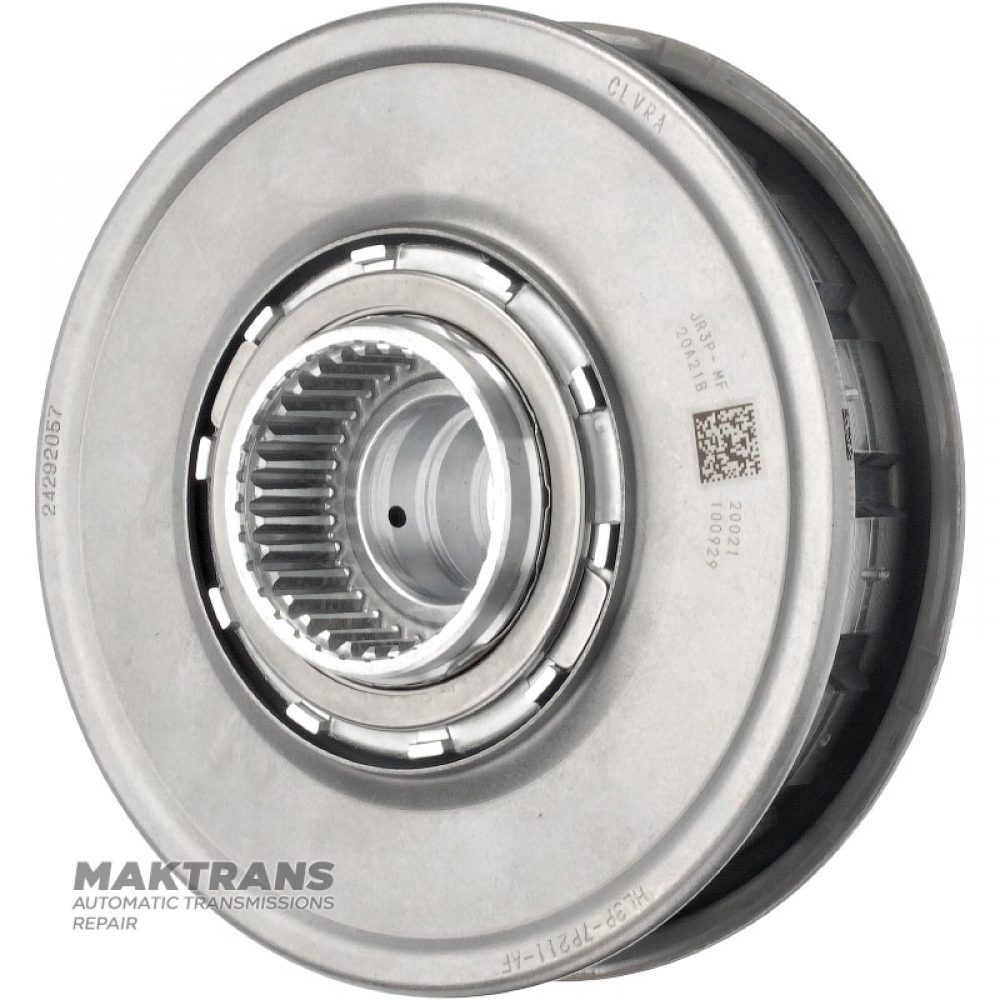

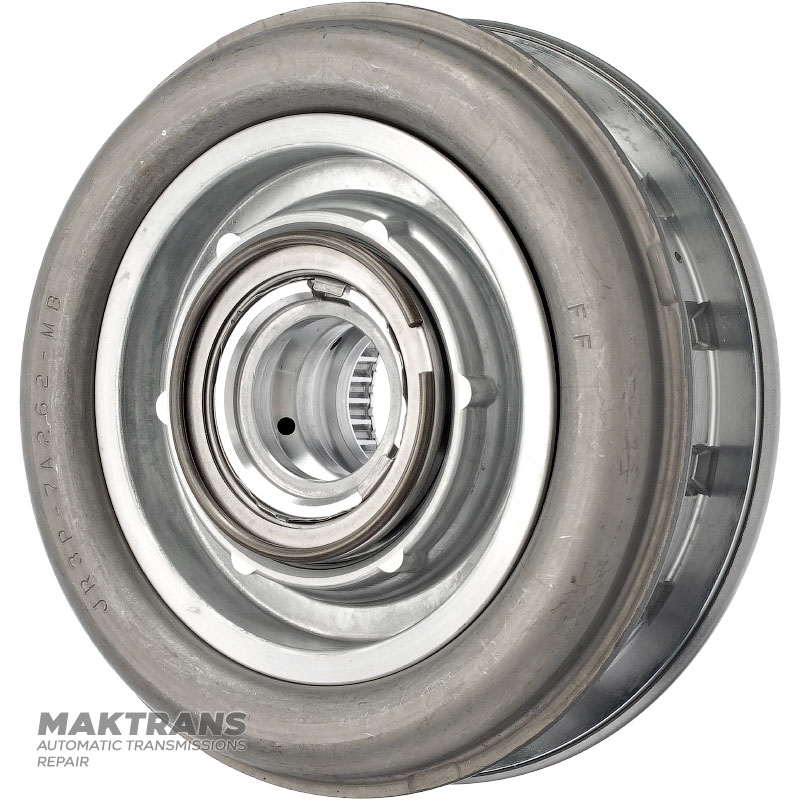

Drum E Clutch (without discs) FORD 10R80 - JR3P-7A262-MB (piston for package with 4 friction discs)

Drum:

• Total height - 62 mm;
• The height of the disk seat is 33 mm;
• The number of teeth on the drum for a set of discs is 15 pcs.;
• The outer diameter of the case is 160.30 mm;
• Outer diameter of the drum - 137 mm;
• Inner diameter - 32.75 mm;
• The number of splines on the inside of the drum is 32 pcs.;

Rubberized piston:

• Total height - 37 mm;
• Height to the thrust part - 22 mm;
• Outer diameter - 159.85 mm;
• The outer diameter of the rubberized part is 113.60 mm;
• Inner diameter - 67.50 mm;
  Marking - JR3P-7A262-MB;

Aluminum piston:

• Overall height - 18.40 mm;
• Outer diameter - 113.45 mm;
• Inner diameter - 65.10 mm;
• Marking - HL3P-7P169-CA, 24270357;

Return spring:

• Outer diameter - 112.55 mm;
