Drum E Clutch ZF 8HP90, 8HP90A, 8HP90A HIS, 8HP90A74 - 7 friction discs, 1091471010, 1091471008, 0501325663

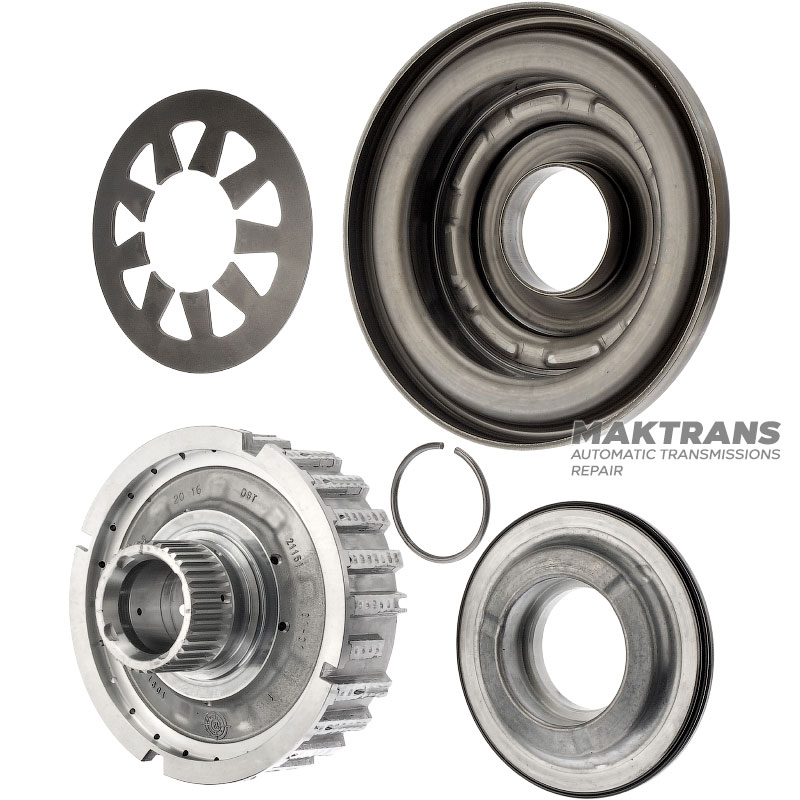

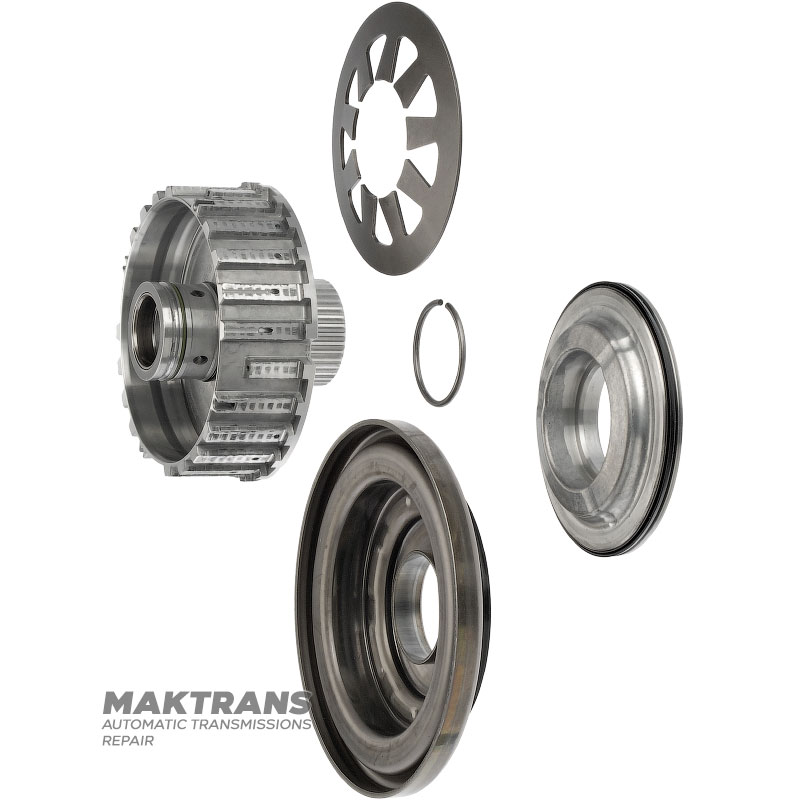

E Clutch Drum:

• Overall height - 89 mm;
• Number of splines - 38 pcs.;
• Drum height - 43.30 mm;
• Outer diameter - 137 mm;

Rubberized piston:

• Height - 36 mm;
• Outer diameter - 161.60 mm;
• Inner diameter - 45.75 mm;
• The outer diameter of the rubberized part is 117.15 mm;

Aluminum piston

• Overall height - 23.50 mm;
• Outer diameter - 108.35 mm;
• Inner diameter - 44.80 mm;

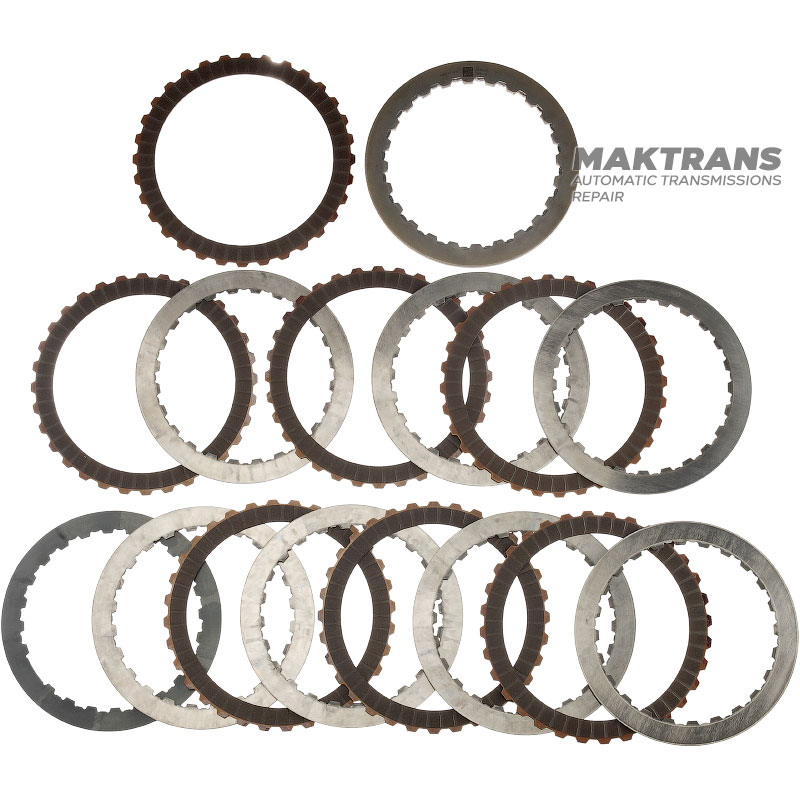

Set of steel and friction discs:

• The total thickness of the set is 33.25 mm;

Support disk:

• Thickness - 3.60 mm;
• Outer diameter - 163.45 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.10 mm;
• Inner diameter - 135.70 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 7 pcs.;

Steel disk:

• Thickness - 2.10 mm;
• Outer diameter - 163.30 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 7 pcs.;

Spring disc:

• Thickness - 0.50 mm;
• Outer diameter - 163.30 mm;
• Number of teeth - 22 pcs.;
• Number of discs in the set - 1 pc.;
