Drum FORWARD Clutch Aisin Warner 30-40LE, 30-80LE / TOYOTA A343 - empty, without discs (height from piston to stopper 25.50 mm)

Name: Drum FORWARD Clutch Aisin Warner 30-40LE, 30-80LE / TOYOTA A343 - empty, without discs (height from piston to stopper 25.50 mm)
Brand: AISIN WARNER
Price: 72 USD
Availability: InStock

Worldwide Shipping 🌎

Product Code:

ART24-0810-5

Product model copied to clipboard

Brand

AISIN WARNER

Availability: 1

Weight (kg): 2

the asking price is $72.00

Shipping Icon Shipping to United States from $63.32

Main Specifications

Condition (used, new): used and inspected

Type: FORWARD Clutch drum

Equipment level: without FORWARD Clutch disc kit

Available Options

Stock Place:	Availability:	Price:	Qty:
Ukraine	1 pcs.	$72.00

Qty:

Product overview
Shipping & Payment
Questions - Answers (0)
Gearbox works better with (2)

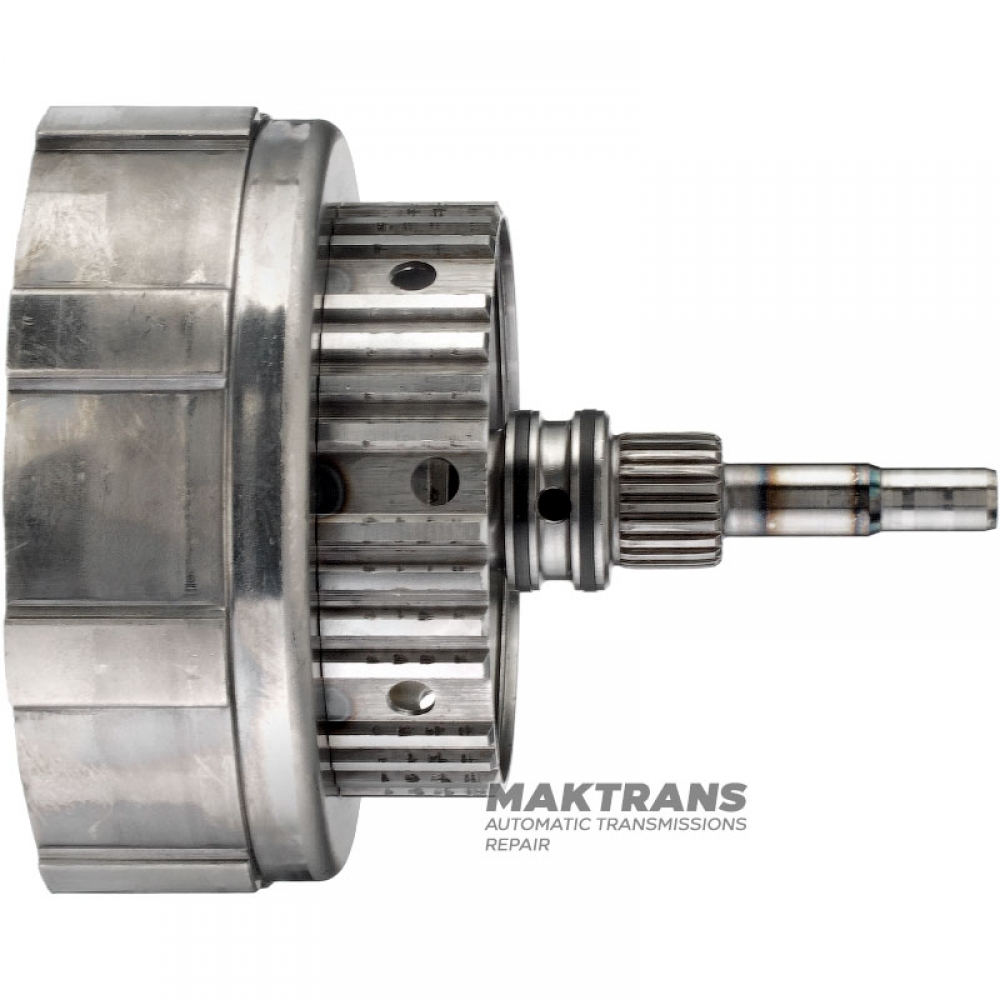

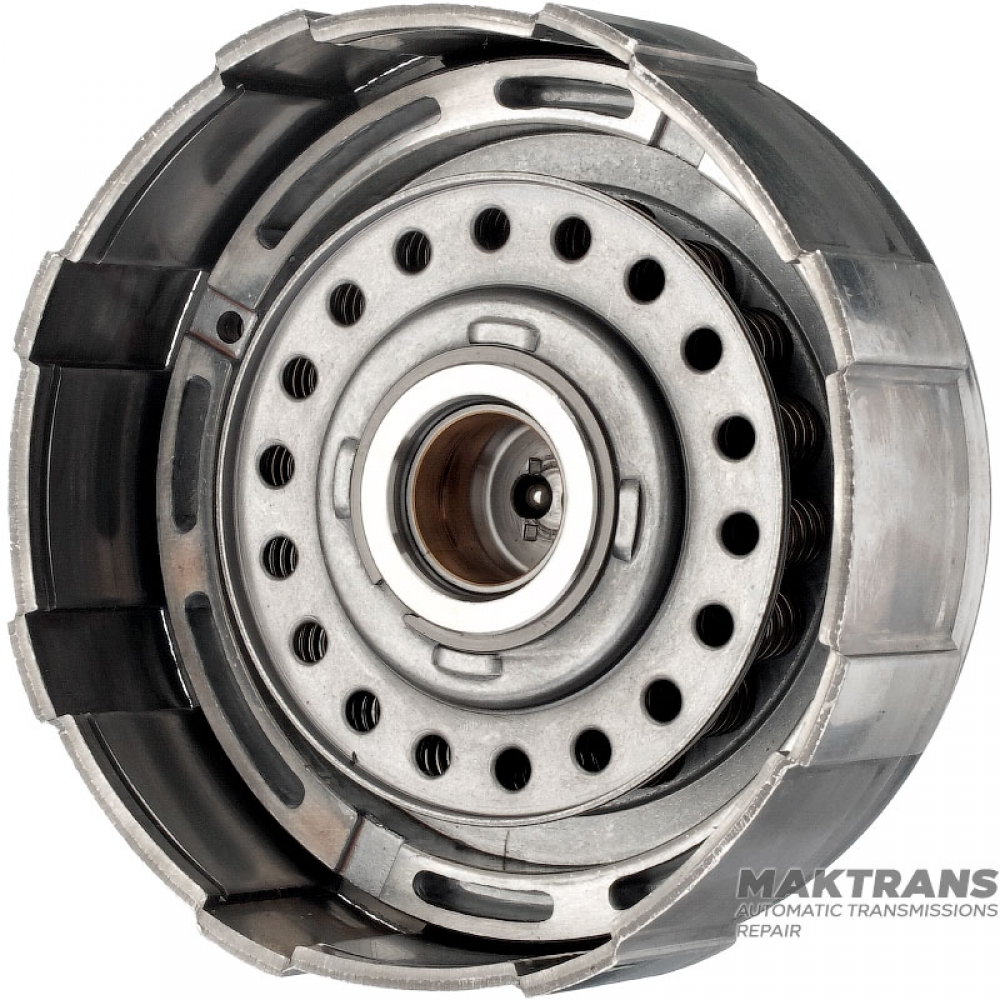

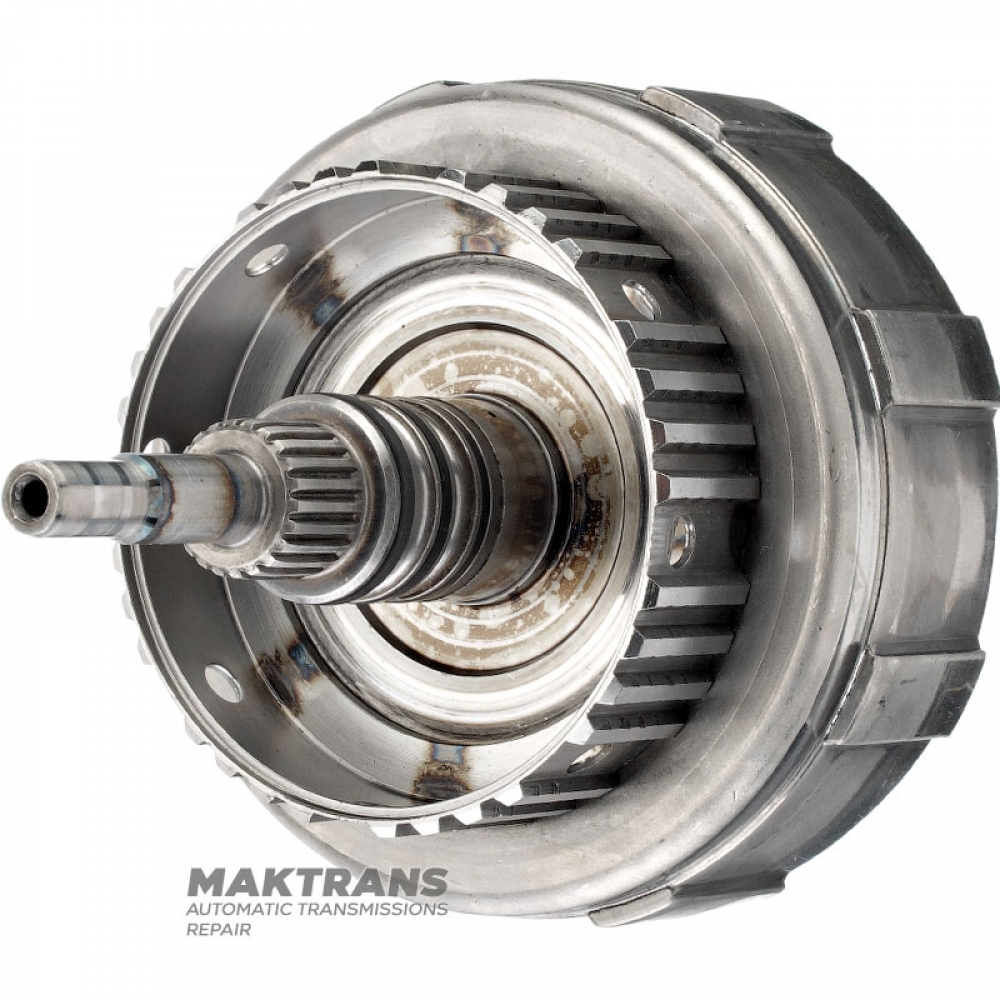

Drum Forward Clutch:

Overall height - 162 mm;
The height of the shaft from the base of the drum is 115 mm;
Number of splines on the shaft - 22 pcs.;
Outer diameter of spline part - 23.90 mm;
Outer diameter over Teflon rings - 31.45 mm;
Hub height - 28 mm;
The outer diameter of the hub is 103.80 mm;
Height from piston to retaining ring - 25.50 mm;

Tags: 9052035001, 3560350010, 3560222020, 9030199058, 9030139005, 3570140020
