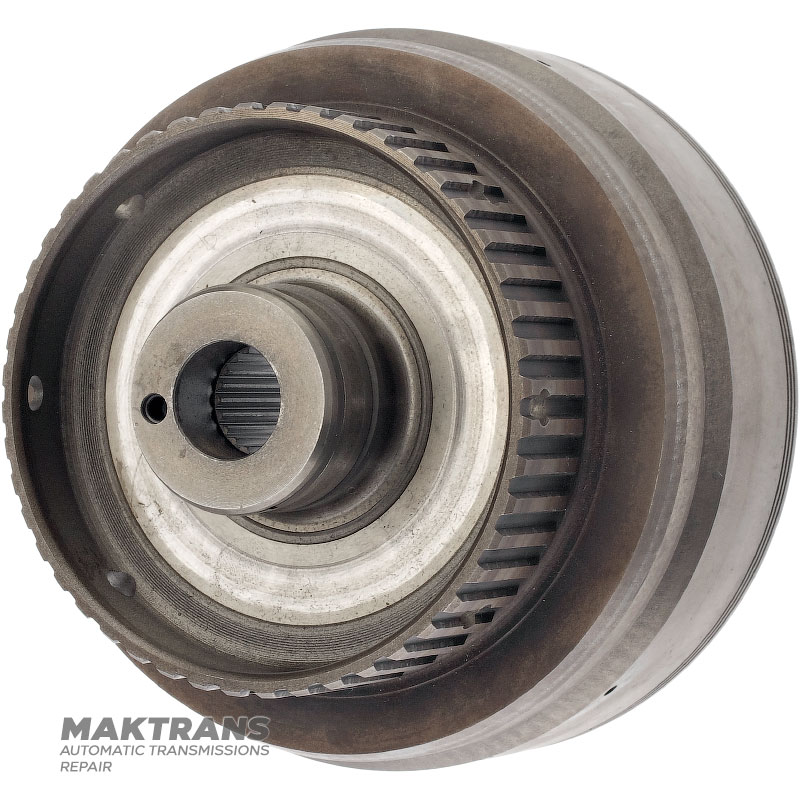

FORWARD Clutch Drum FORD A4LD, 4R44E, 4R55E, 5R55E, 5R55N, 5R55S, 5R55W 83DT 7A511-DB — hub with Teflon rings, 5 friction discs (total thickness of disc set 24 mm)

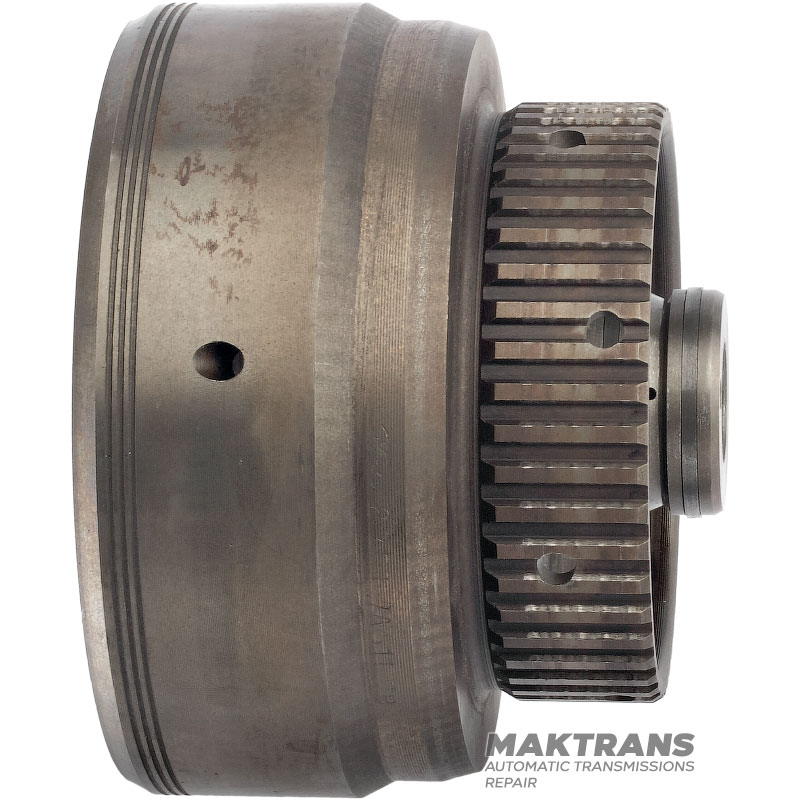

Drum FORWARD Clutch:

• Overall height - 97 mm;
• Drum outer diameter - 132 mm;
• Direct Clutch Hub Outer Diameter - 99.15mm;
• Number of splines on the Direct Clutch hub - 48 pcs.;
• The outer diameter of the central caliper hub is 37.35 mm;
• Number of splines on the inner side - 22 pcs.;
• Height from piston to retaining ring - 26 mm;

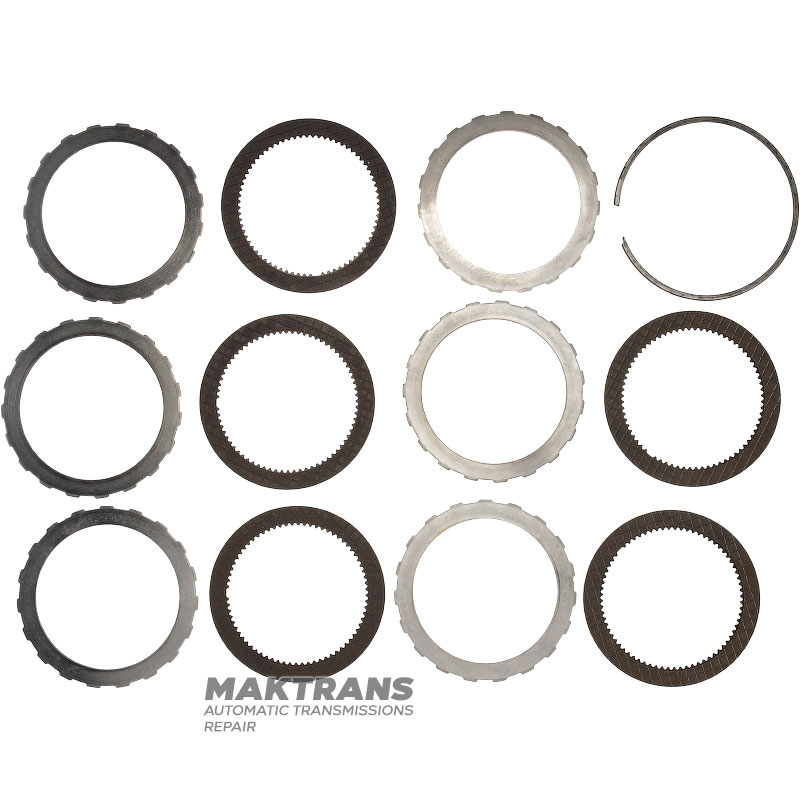

FORWARD Clutch Steel and Friction Disc Set:

• The total thickness of the set is 24 mm;

Support disk:

• Thickness - 5.60 mm;
• Inner diameter - 96.35 mm;
• Number of teeth - 19 pcs.;
• Number of disks in the set - 1 pc.;

Friction disc:

• Thickness - 1.90 mm;
• Outer diameter - 118 mm;
• Number of teeth - 71 pcs.;
• Number of teeth in the set - 5 pcs.;

Steel disk:

• Thickness - 1.75 mm;
• Inner diameter - 96.70 mm;
• Number of teeth - 19 pcs.;
• Number of discs in the set - 5 pcs.;

Tags: E5TZ 7A360-A, 83DT 7A511-DB
