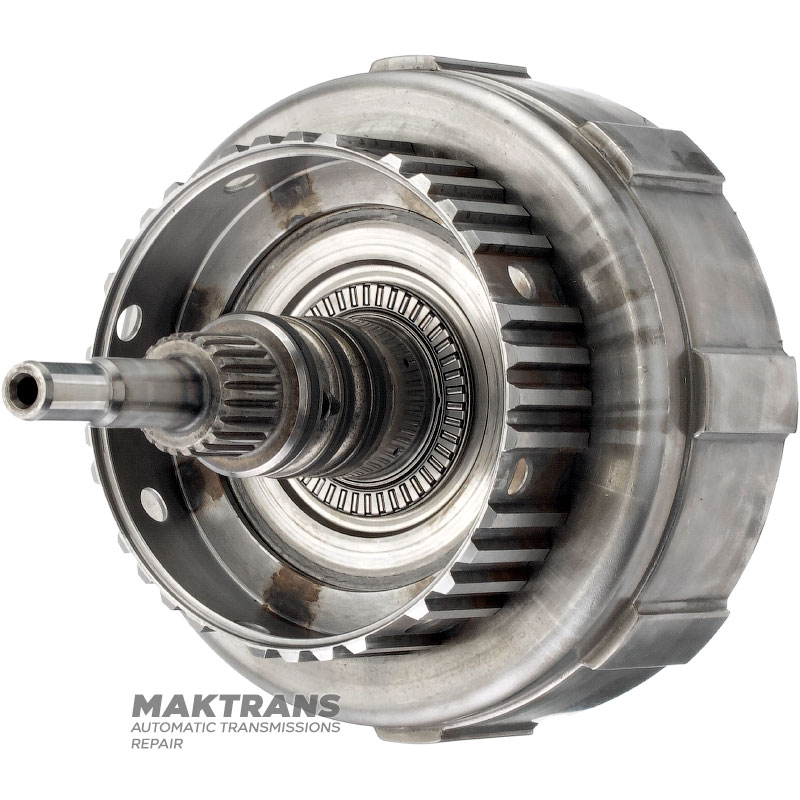

Drum FORWARD Clutch TOYOTA A340E / A340F 3570122050 - 5 friction discs (total thickness of the set 23.10 mm)

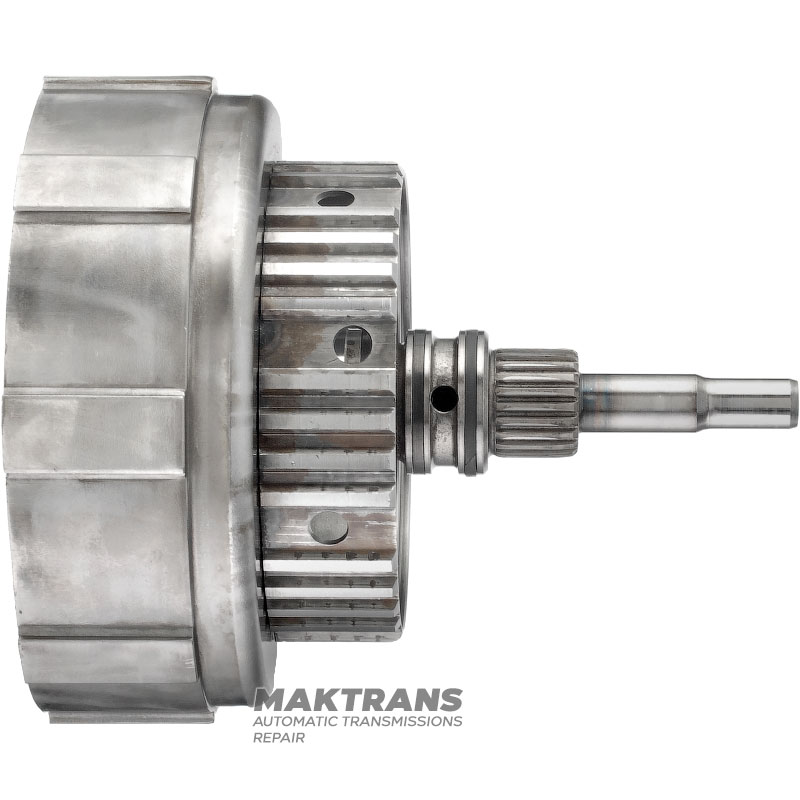

Drum FORWARD CLUTCH:

• Overall height - 162 mm;
• The height of the shaft from the base of the drum is 115 mm;
• Number of splines on the shaft - 22 pcs.;
• Outer diameter of spline part - 23.90 mm;
• Outer diameter over Teflon rings - 31.45 mm;
• Hub height - 28 mm;
• The outer diameter of the hub is 103.80 mm;

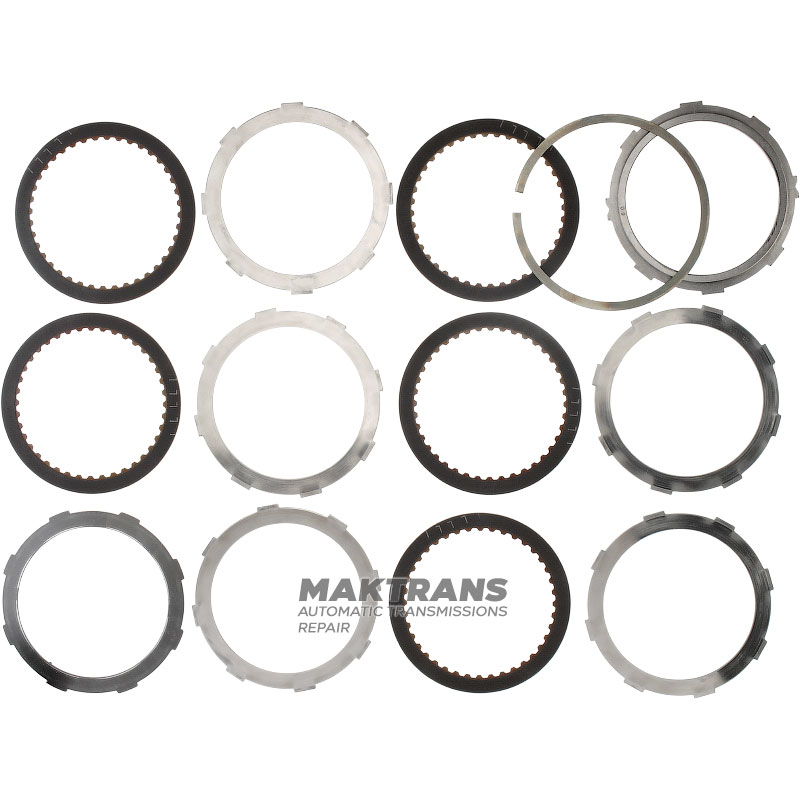

FORWARD Clutch Steel and Friction Disc Set:

• Height from piston to retaining ring - 27 mm;
• Total thickness of the set - 23.10 mm;

Support disk:

• Thickness - 3.20 (3.80) mm;
• Inner diameter - 105.50 mm;
• Number of teeth - 8 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.05 mm;
• Outer diameter - 126.25 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 105.50 mm;
• Number of teeth - 8 pcs.;
• Number of discs in the set - 5 pcs.;

Spring disc:

• Thickness - 1.80 mm;
• Inner diameter - 105.35 mm;
• Number of teeth - 8 pcs.;
• Number of discs in the set - 1 pc.;

Tags: 3560222020, 9030199058, 9030139005, 3560222020, 3570140020, 9052035001, 3560350010, 3567730150, 3563433020, 3563432010, 3563430160, 9052199001, 3567222010
