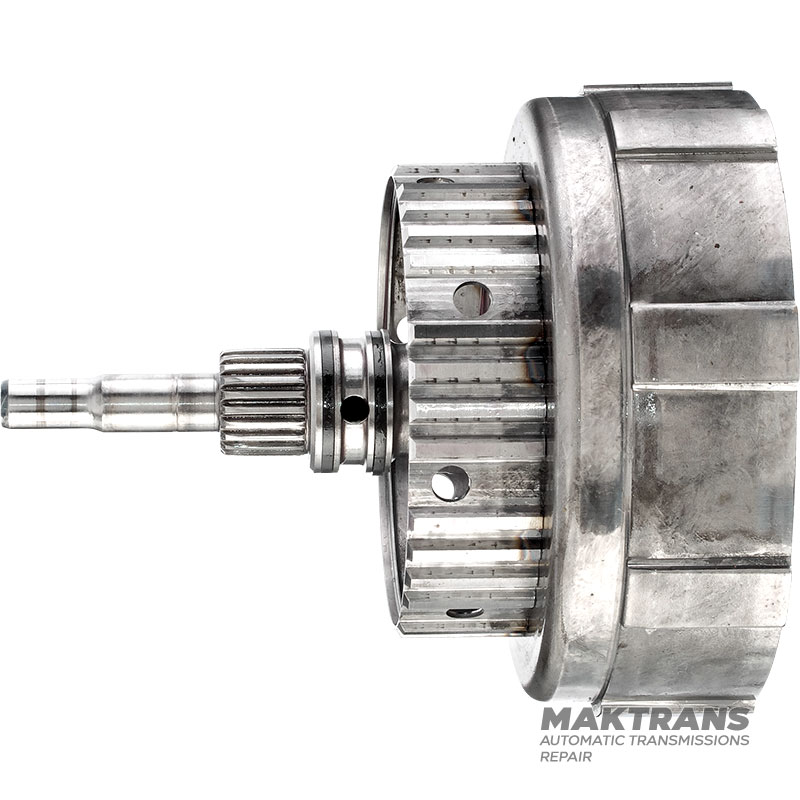

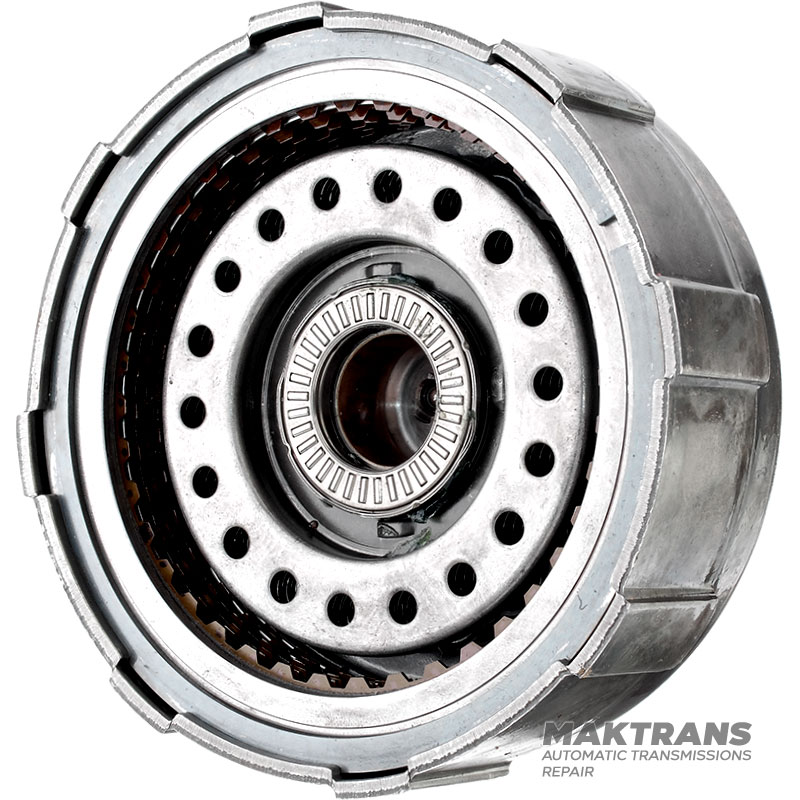

Drum FORWARD Clutch TOYOTA A340E / A340F 3570122050 – 6 friction discs

Drum Forward Clutch:

• Total height - 162 mm;
• The height of the shaft from the base of the drum is 115 mm;
• Number of splines on the shaft - 22 pcs.;
• The outer diameter of the spline part is 23.90 mm;
• Outer diameter of Teflon rings - 31.45 mm;
• Hub height - 28 mm;
• The outer diameter of the hub is 103.80 mm;

Set of steel and friction discs FORWARD Clutch:

• The total thickness of the set is 26 mm;

Support disk:

• Thickness - 3.80 mm;
• Inner diameter - 105.50 mm;
• Number of teeth - 8 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 1.65 mm;
• Outer diameter - 126.25 mm;
• Number of teeth - 40 pcs.;
• Number of discs included - 6 pcs.;

Steel disc:

• Thickness - 1.80 mm;
• Inner diameter - 105.50 mm;
• Number of teeth - 8 pcs.;
• Number of discs included - 6 pcs.;

Spring disc:

• Thickness - 1.80 mm;
• Inner diameter - 105.35 mm;
• Number of teeth - 8 pcs.;
• Number of discs included - 1 pc.;

Tags: 3560214012 3560330011 9052035001 3567230010 3563432010 3567726010 3563530040 3563530020 9052199001 9037425005 3578930110
