the asking price is €108.00
Shipping to United States from €50.51
Main Specifications
Condition (used, new):
used and inspected
Type:

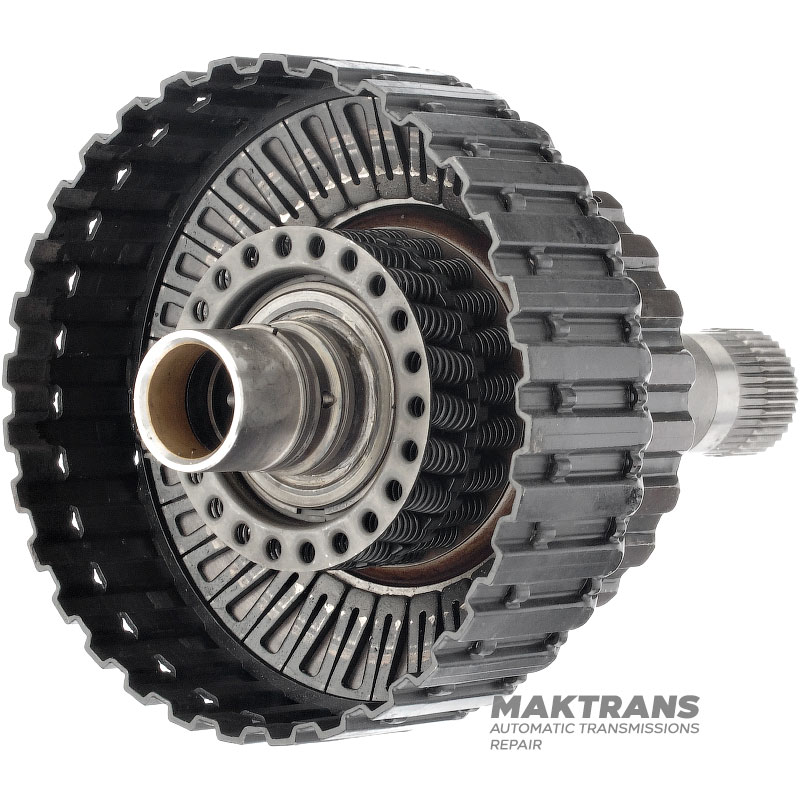

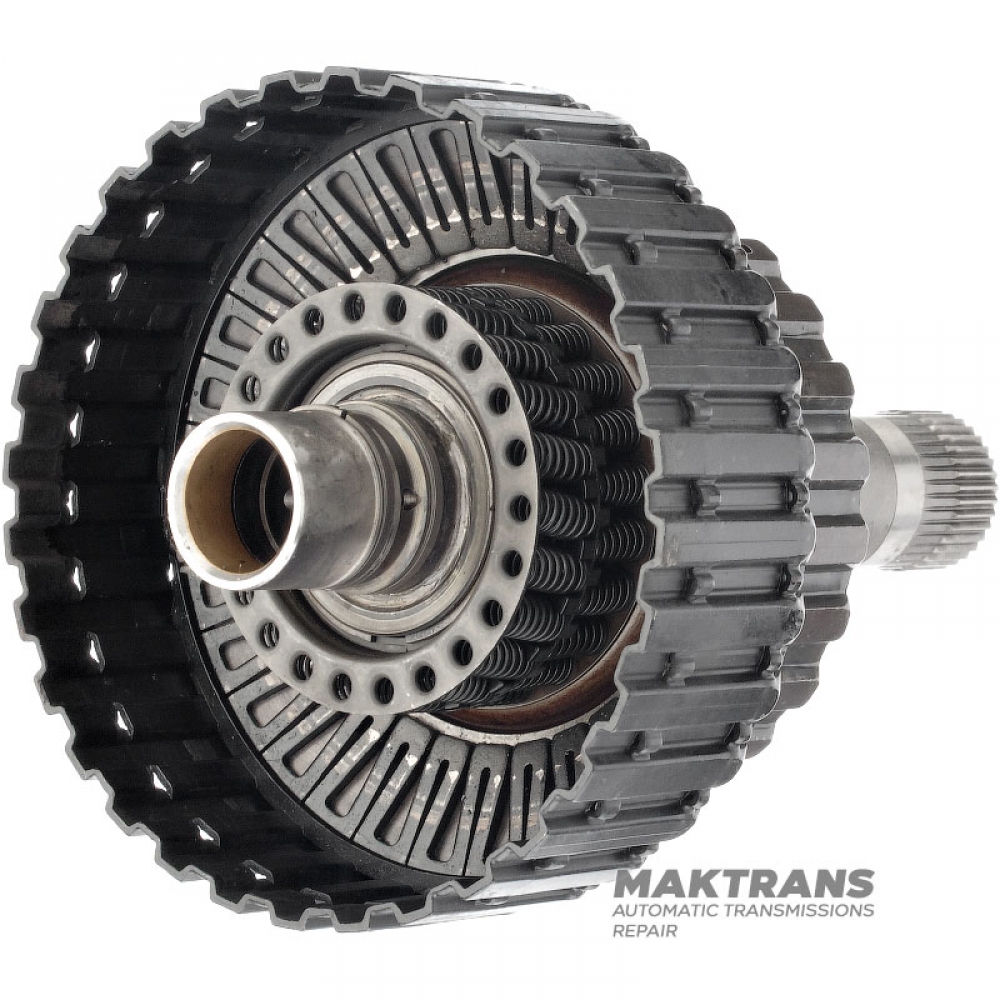

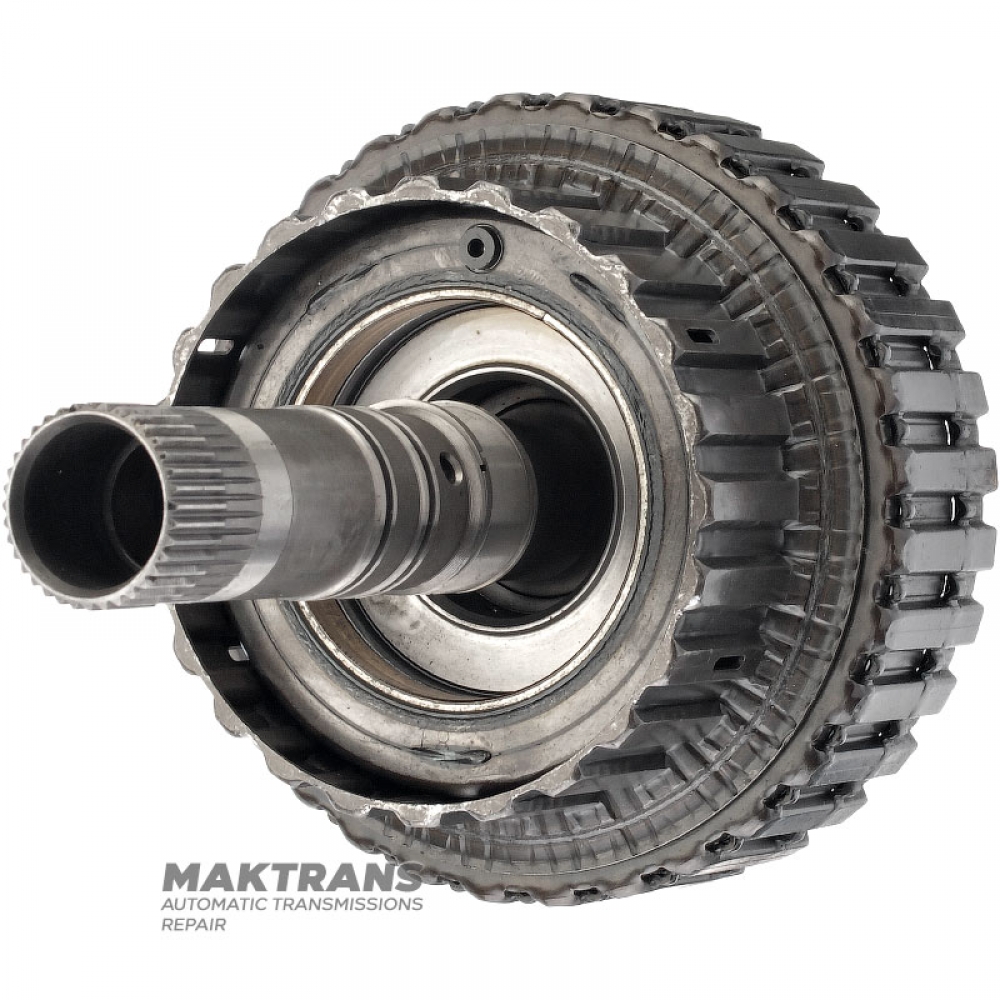

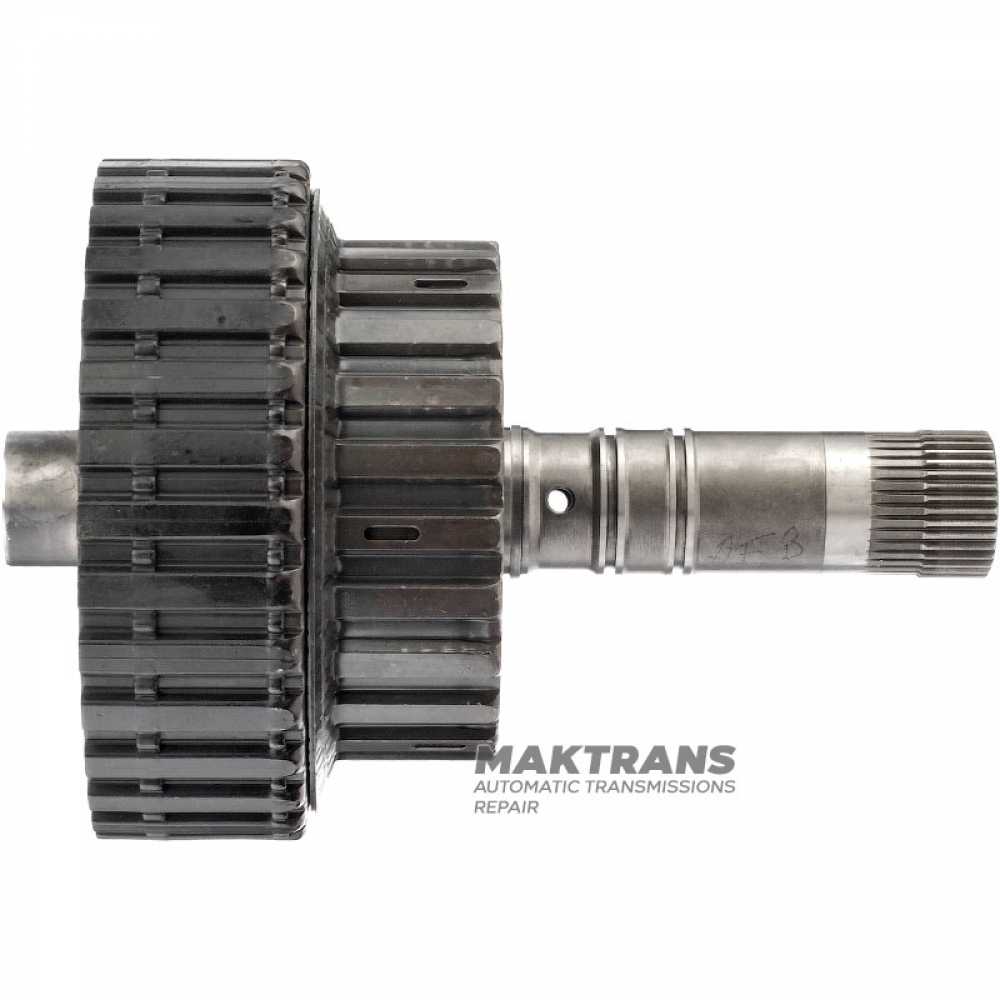

K1 Clutch Drum
Available Options
| Stock Place: | Availability: | Qty: |
| Ukraine | 1 pcs. |
  |
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Overall height - 192 mm;
- Number of splines - 36 pcs.;
- The outer diameter of the splined part is 29.20 mm;
- Inner diameter of the bushing (on the front side) - 62.65 mm;
- Reverse Clutch Hub Outer Diameter - 101.60mm;
- Forward Clutch Drum Outer Diameter - 132.70mm;
- Height from spring retaining ring to Forward Clutch package retaining ring - 21 mm;
