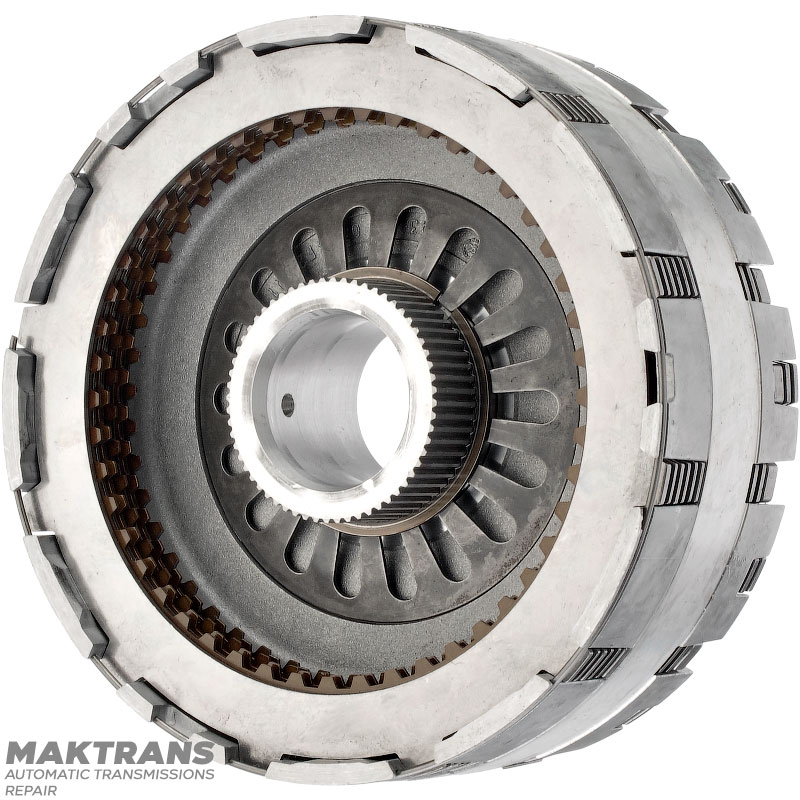

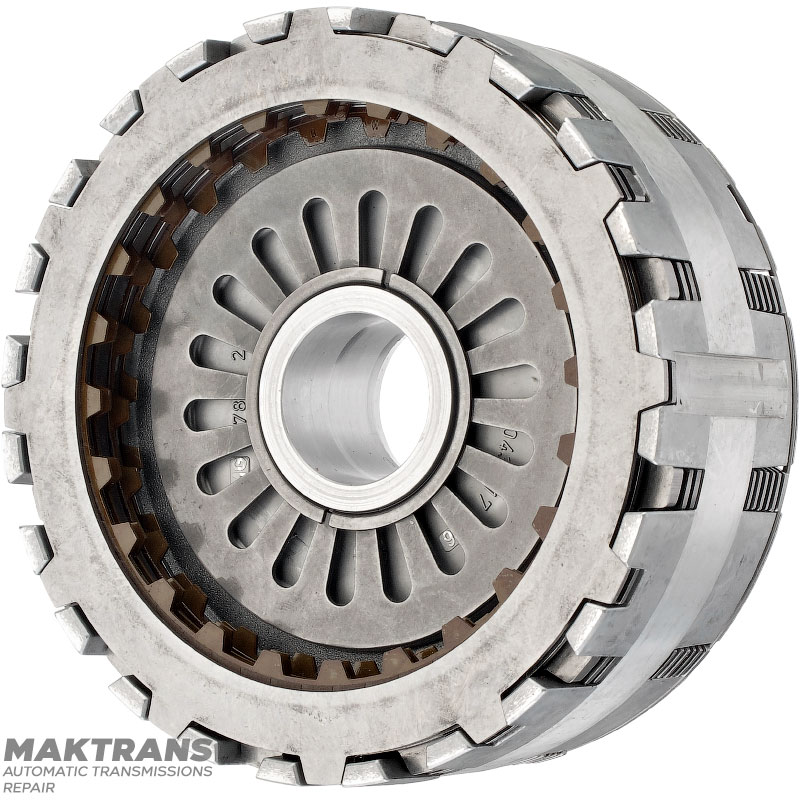

Drum Intermediate, Overrun, Reverse Clutch ZF 4HP22, 4HP24 — 1043417065, 1043417041 (Friction discs Intermediate, Overrun Clutch — 24 teeth, Reverse Clutch — 48 teeth)

Drum :

• Overall height - 63 mm;
• Inner diameter - 34.85 mm;
• Outer diameter - 156.85 mm;
• Number of splines on the hub - 60 pcs.;
• Outer diameter of spline part - 49.80 mm;

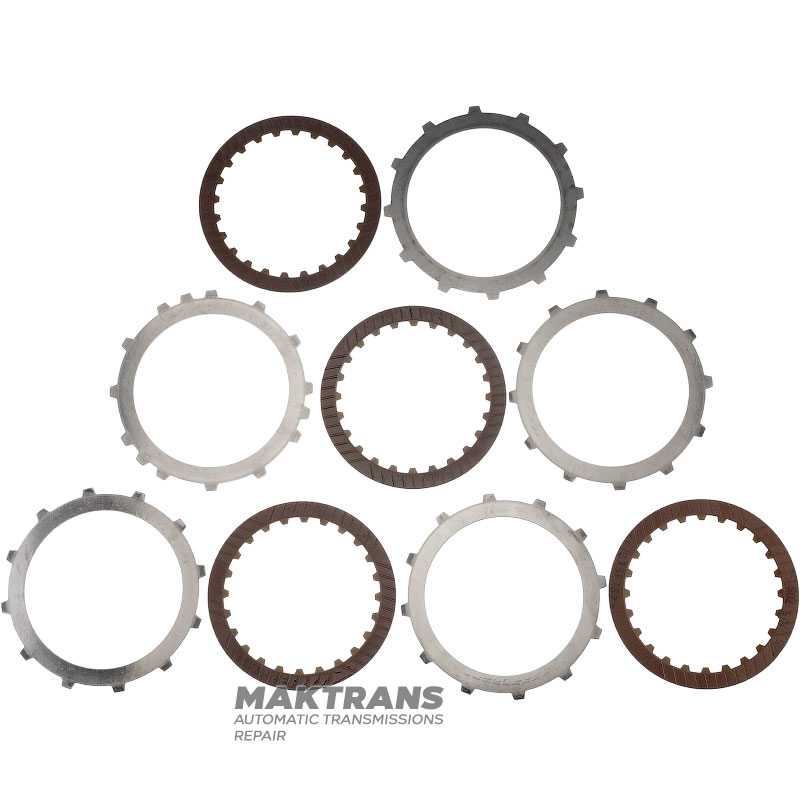

Intermеdiate Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 6.80 mm;


Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 143 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 118.85 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 2 pcs.;

Overrun Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 11.35 mm;

Support disk:

• Thickness - 4.55 mm;
• Inner diameter - 119.10 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 143 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 118.85 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 2 pcs.;

Reverse Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 15.75 mm;

Support disk:

• Thickness - 1.85 mm;
• Inner diameter - 119 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter -142.80 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 1.20 mm;
• Inner diameter - 119.10 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 5 pcs.;
