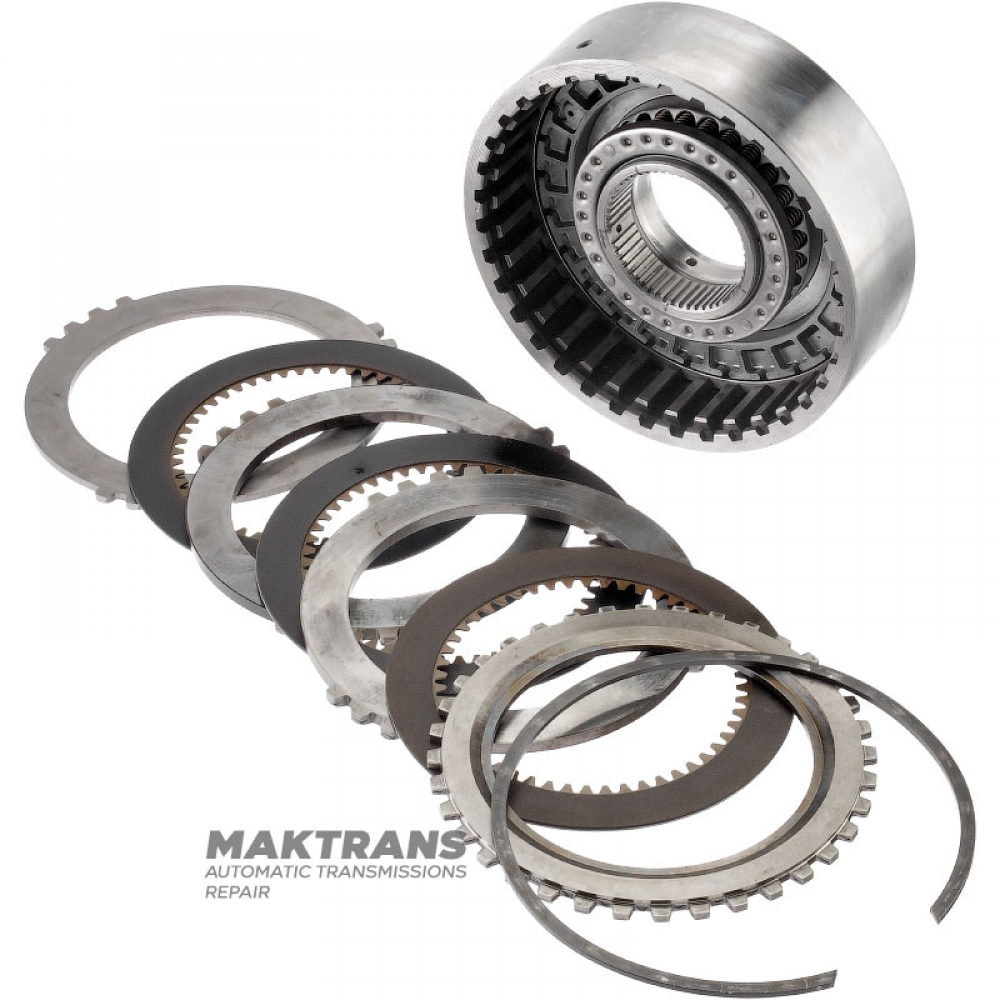

Drum K1 Clutch / B1 Brake Mercedes-Benz 722.0, 722.1, 722.2 - 3 friction discs (total thickness of the set 25.40 mm)

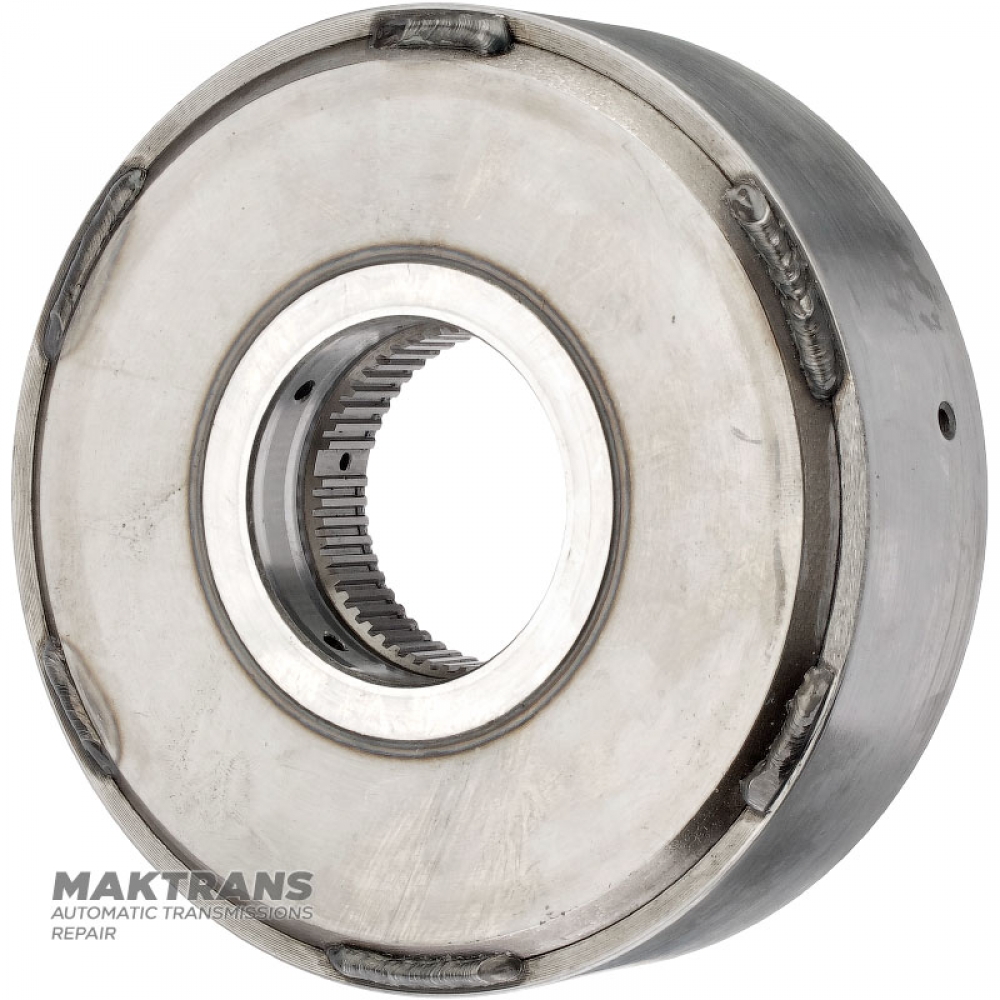

Drum:

• Total drum height - 48 mm;
• Drum outer diameter - 156.60 mm;
• Inner diameter under the hub - 56.95 mm;
• Number of splines on the inner side - 50 pcs.;
• Height from piston to retaining ring - 25 mm;

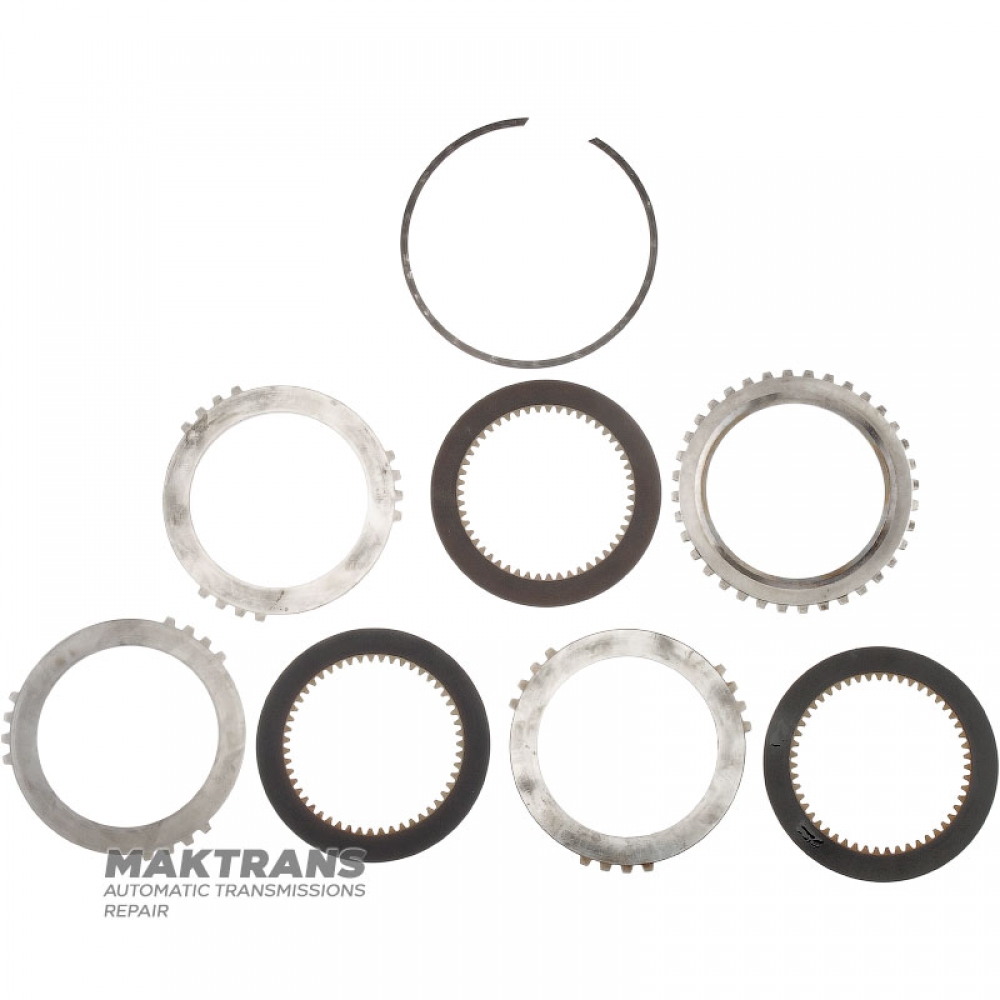

Set of steel and friction discs:

• The total thickness of the set is 25.40 mm;

Support disk:

• Thickness - 4.90 mm;
• Inner diameter - 103.20 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.25 mm;
• Outer diameter - 134.80 mm;
• Number of teeth - 51 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 4.05 mm;
• Inner diameter - 103.20 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 3.50 mm;
• Inner diameter - 103.20 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Tags: A 115 270 73 32, A 115 272 02 31, A 309 270 03 20, A 115 270 92 20, A 109 272 19 26, A 115 272 00 25, A 109 272 08 26, A 109 272 06 26, A 109 272 15 26, A 115 270 04 41, A1152707332, A1152720231, A3092700320, A1152709220, A1092721926, A1152720025, A1092720826, A1092720626, A1092721526, A1152700441
