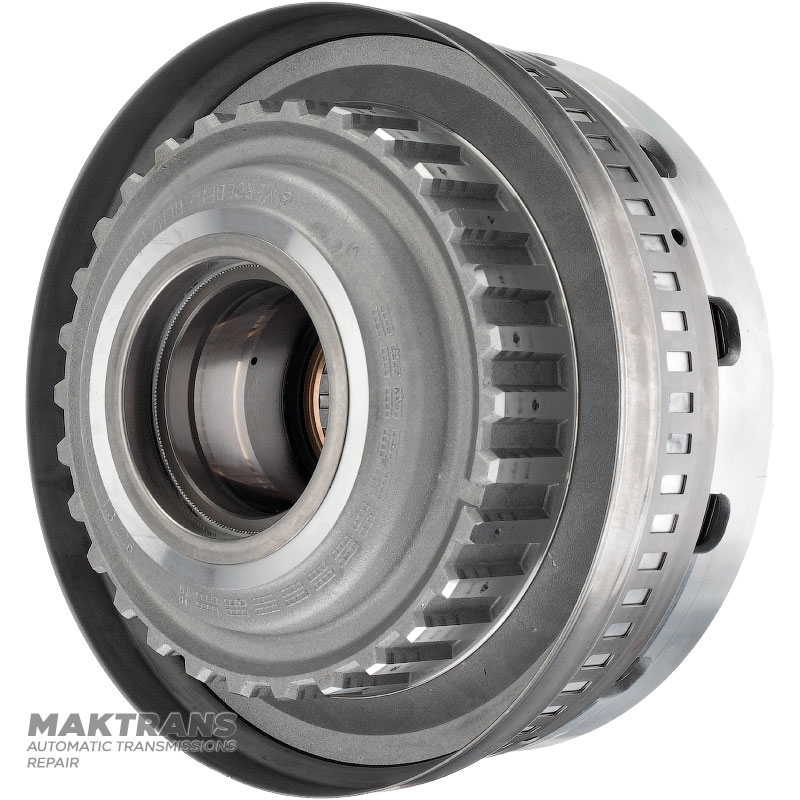

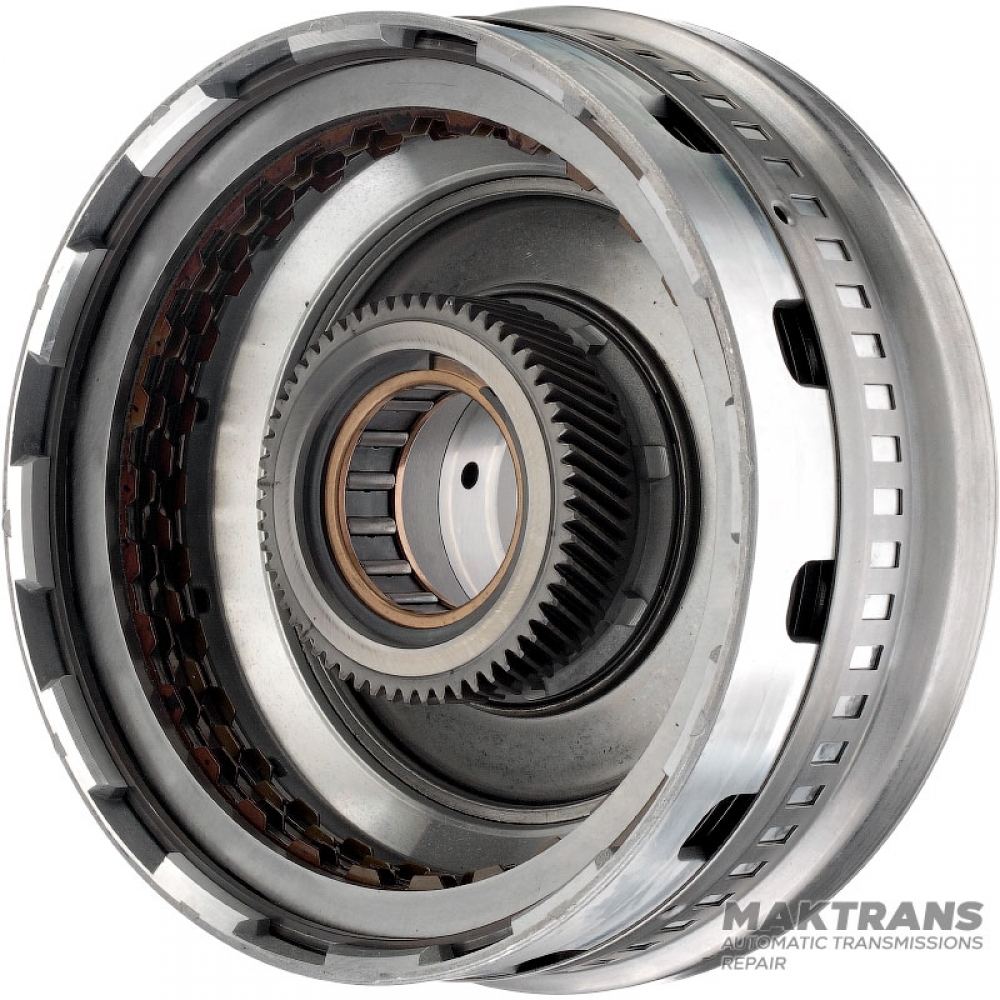

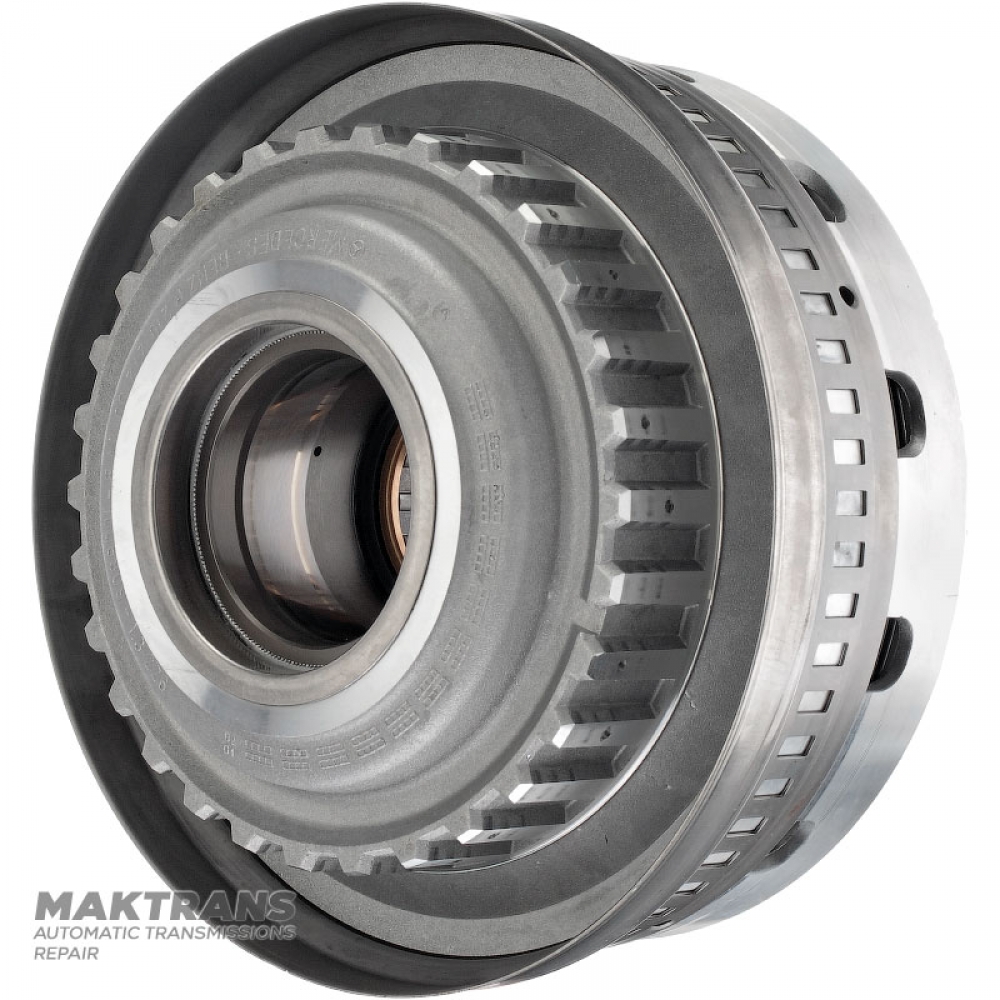

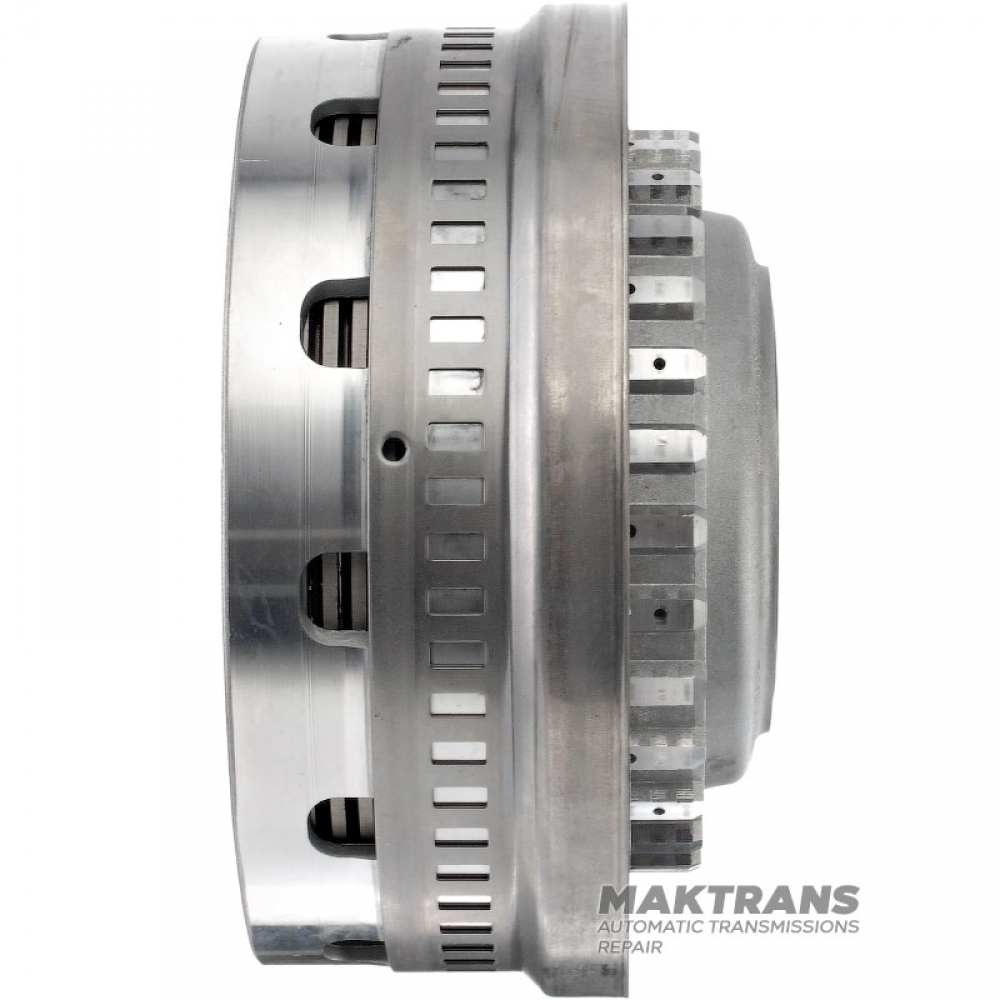

Drum K1 Clutch Mercedes-Benz 722.6 A2102720024B - 4 double-sided friction discs, 58 teeth (outer Ø 81.60 mm) sun gear)

K1 Clutch Drum:

• Total height - 104 mm;
• The outer diameter of the drum along the speed sensor ring is 192.15 mm;
• The height from the piston to the retaining ring (on the inside of the drum) is 26 mm;
• The number of teeth on the sun gear is 58 pcs.;
• The outer diameter of the sun gear is 81.60 mm;

K1 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 23.20 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 2.20 mm;
• Outer diameter - 173.05 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 4 pcs.;

Steel disc:

• Thickness - 2.75 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of discs included - 3 pcs.;

Steel disc:

• Thickness - 1.80 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of disks included - 1 piece;

Spring disc:

• Thickness - 1.50 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 3 pcs.;
• Number of discs included - 1 pc.;
