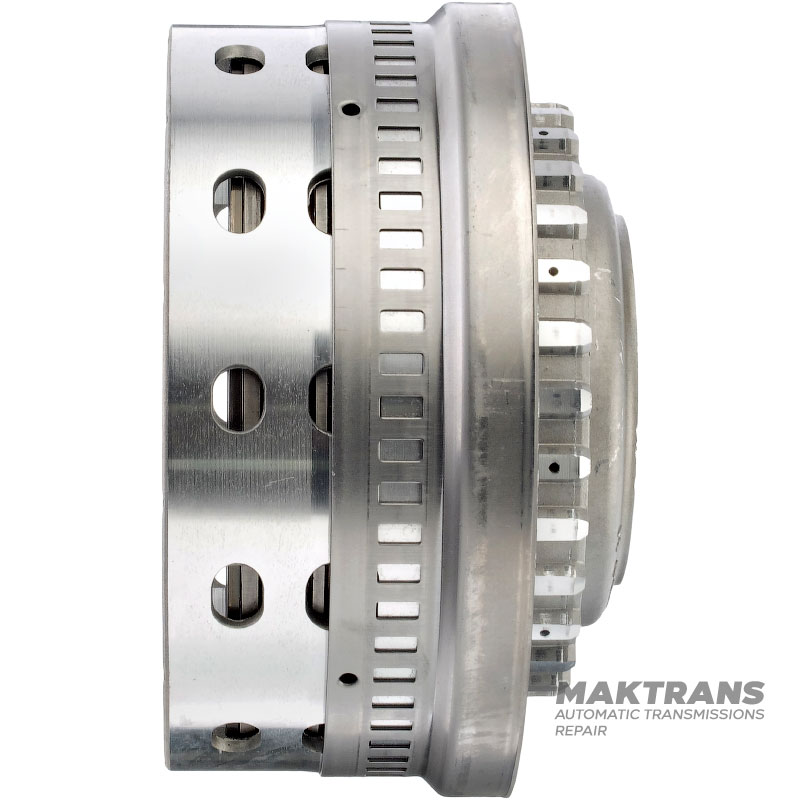

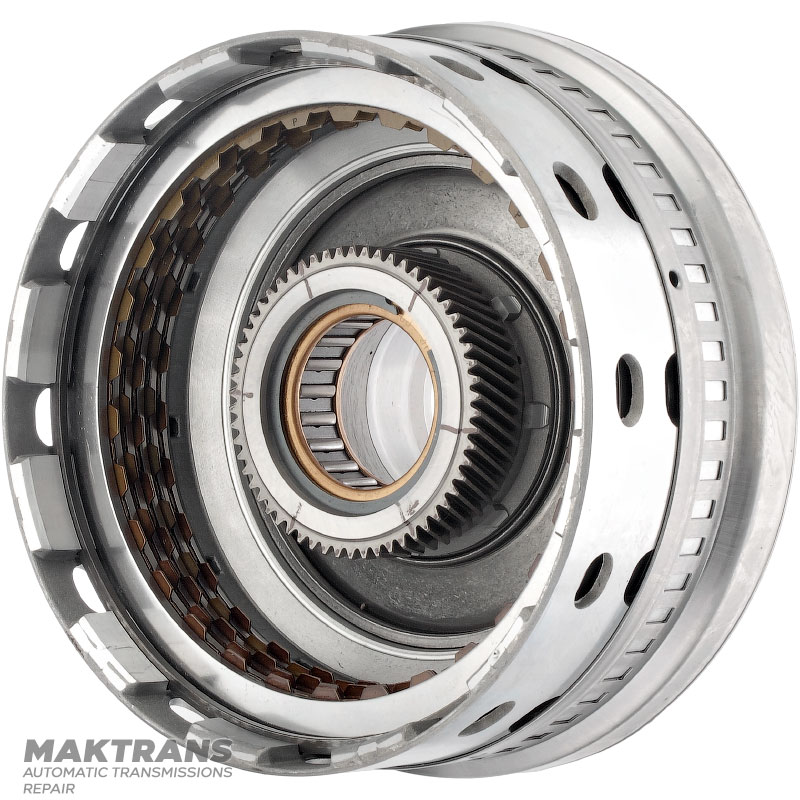

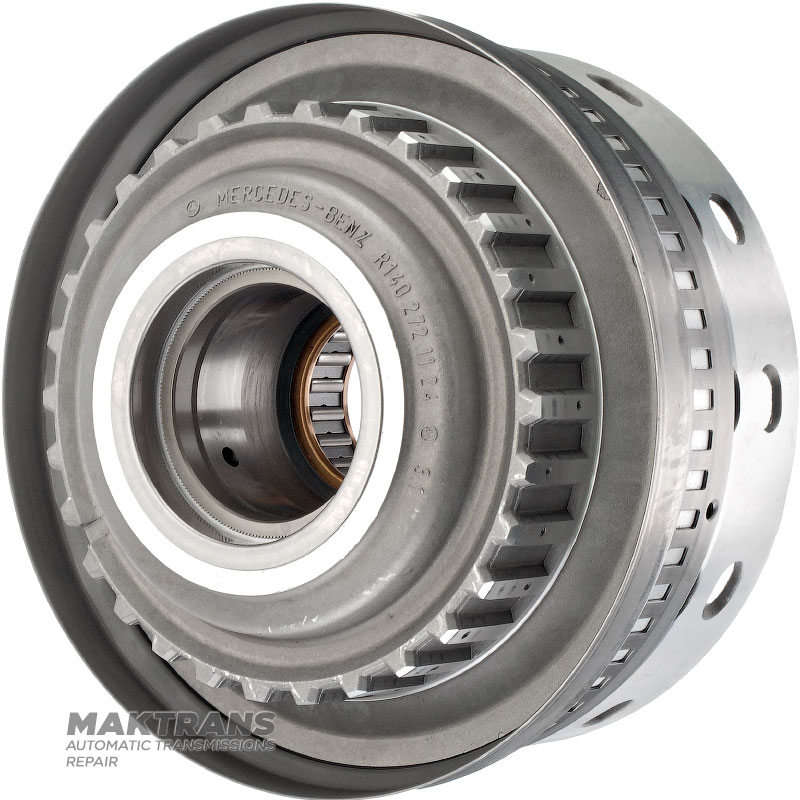

Drum K1 Clutch Mercedes-Benz 722.6 R1402721124 - gear 58 teeth (outer Ø 81.60 mm), 5 double-sided friction discs (total thickness of the set 28.05 mm)

K1 Clutch Drum:

• Total height - 104 mm;
• The outer diameter of the drum along the speed sensor ring is 192.15 mm;
• The height from the piston to the retaining ring (on the inside of the drum) is 31.50 mm;
• The number of teeth on the sun gear is 58 pcs.;
• The outer diameter of the sun gear is 81.60 mm;

  ---



K1 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 28.05 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 2.20 mm;
• Outer diameter - 173.05 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 5 pcs.;

Steel disc:

• Thickness - 2.80 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of discs included - 4 pcs.;

Steel disc:

• Thickness - 1.80 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of disks included - 1 piece;

Spring disc:

• Thickness - 1.50 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 3 pcs.;
• Number of disks included - 1 piece;

Tags: R1402721124 A1402721124 140 272 11 24
