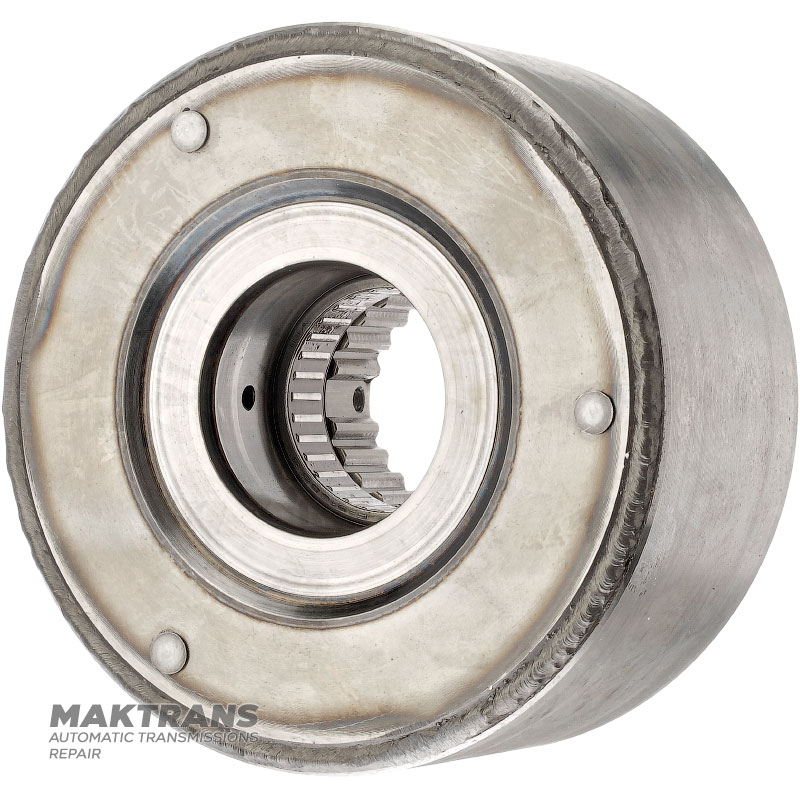

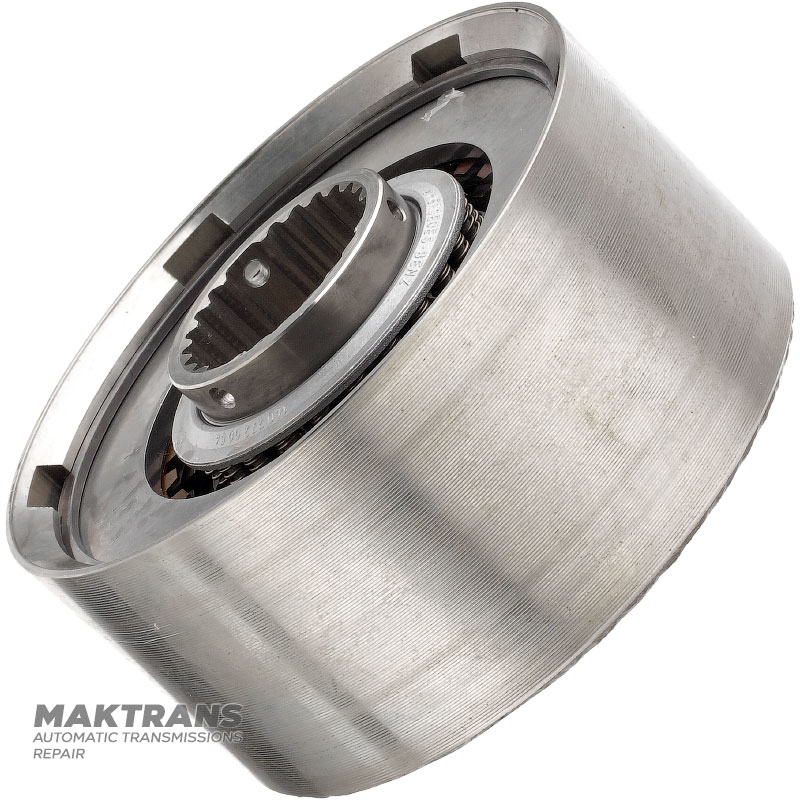

Drum K2 Clutch Mercedes-Benz 722.3 — A1402701528, A1262720725, A1262724726 (5 friction discs (total thickness of the set 33.50 mm))

K2 Clutch Drum:

• Total height - 70 mm;
• Drum outer diameter - 141.95 mm;
• Inner diameter under the hub - 49.70 mm;
• Number of splines on the inner side - 21 pcs.;
• Height from piston to retaining ring - 34 mm;

K2 Clutch Steel and Friction Disc Kit:

• Total thickness of the set - 33.50 mm;

Support disk:

• Thickness - 4.45 mm;
• Inner diameter - 88 mm;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.20 mm;
• Outer diameter -123.50 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 3 mm;
• Inner diameter - 88 mm;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 3.50 mm;
• Inner diameter - 88 mm;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 4.50 mm;
• Inner diameter - 88 mm;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 1 pc.;
