Main Specifications
Condition (used, new):
used and inspected
Type:
drum K3
Equipment level:
complete with disks
Number of friction plates:
4X4 single-sided friction discs
If you order more than 2 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 2 pcs. |
  |
| Ukraine | 111 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (3)

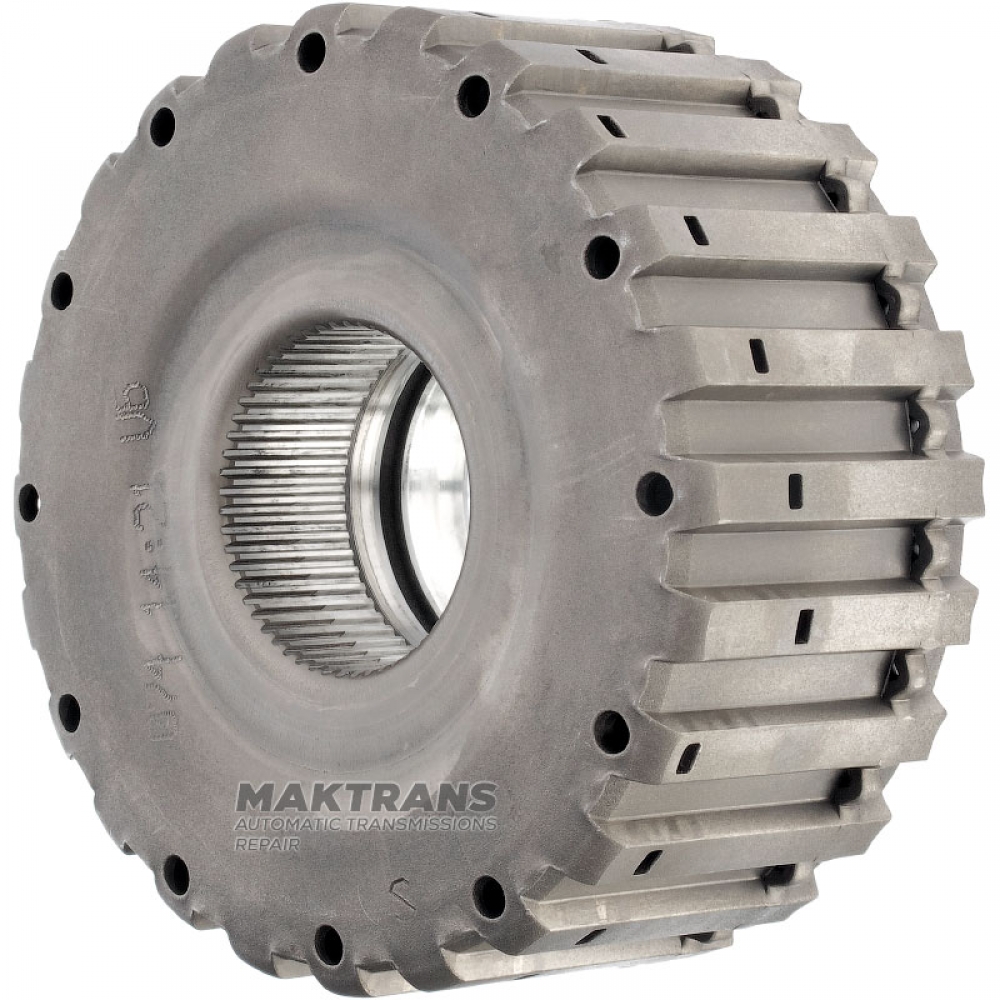

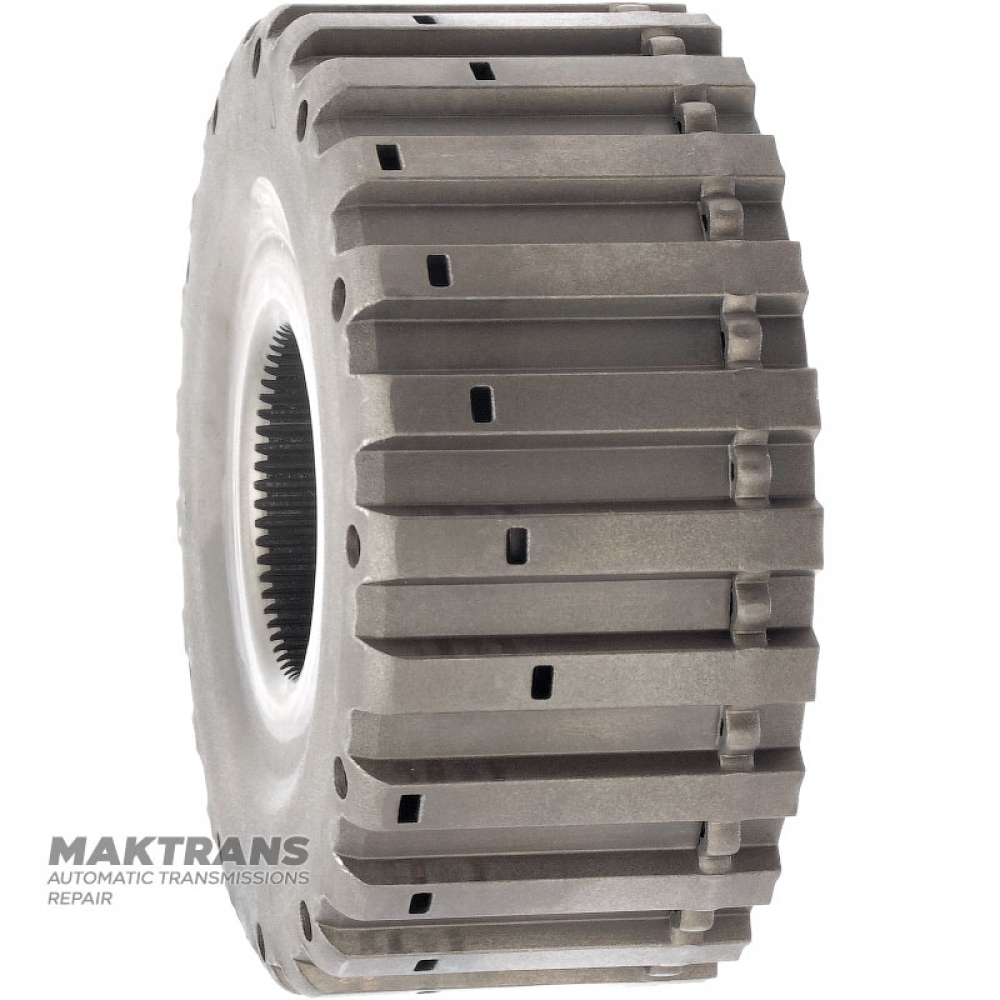

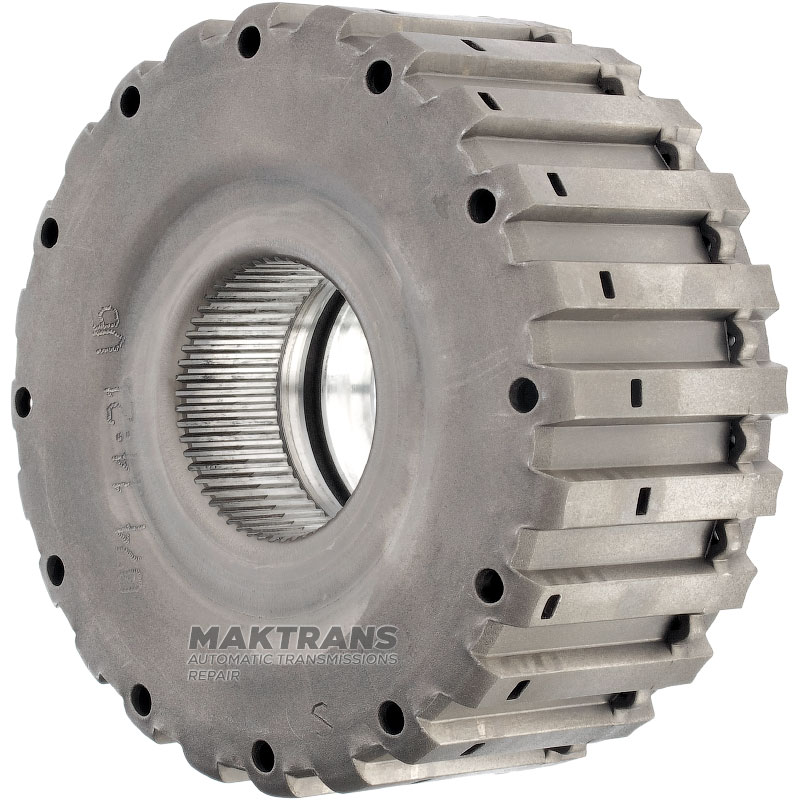

- The total height of the drum is 57 mm;
- Outer diameter of the drum - 128.30 mm;
- The number of splines on the inside of the drum is 56 pcs.;
- Height from piston to retaining ring - 23 mm;
- The height from the top edge to the retaining ring is 7 mm;

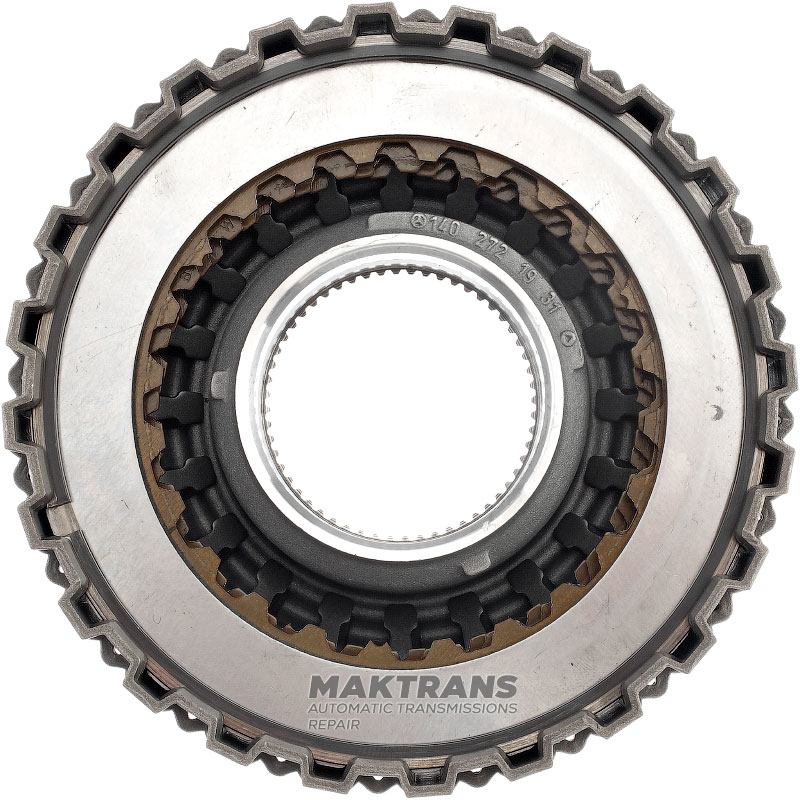

K3 Clutch Steel and Friction Disc Set:
- The total thickness of the set is 20.50 mm;
Pressure disk:
- Thickness - 4 mm;
- Inner diameter - 87.95 mm;
- Number of teeth - 24 pcs.;
- Number of disks included - 1 piece;
Friction disc (internal teeth):
- Thickness - 2.10 mm;
- Outer diameter - 114 mm;
- Number of teeth - 25 pcs.;
- Number of discs included - 4 pcs.;
Friction disc (outer teeth):
- Thickness - 2.05 mm;
- Inner diameter - 88.50 mm;
- Number of teeth - 24 pcs.;
- Number of discs included - 4 pcs.;
Spring disc:
- Thickness - 1.70 mm;
- Inner diameter - 87.90 mm;
- Number of teeth - 4 pcs.;
- Quantity included - 1 piece;
