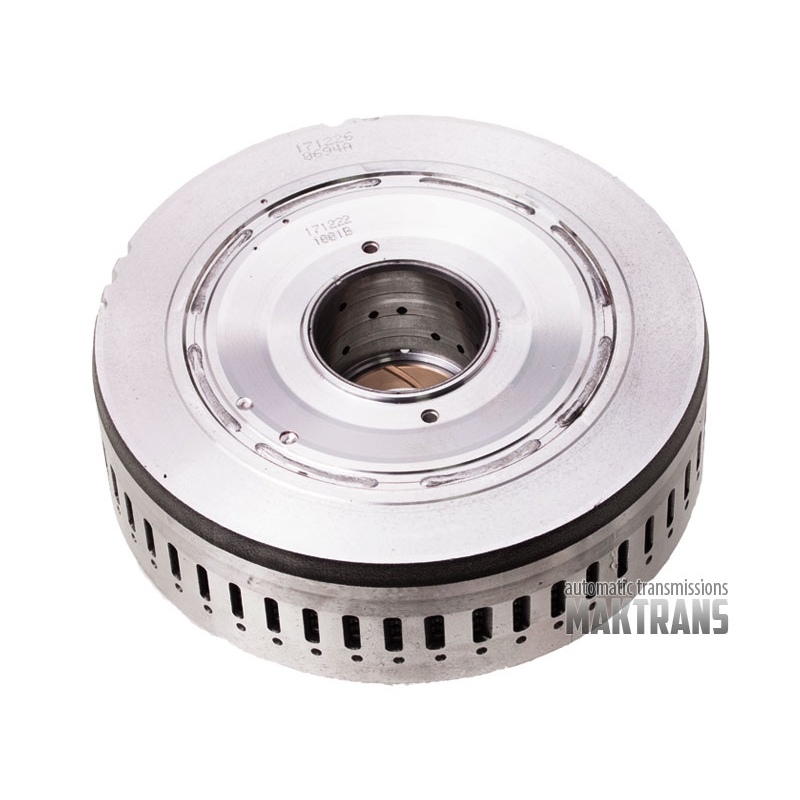

Drum C3 / C4 Clutch (removed from new transmissions) VAG 09S AQ300, AISIN WARNER AWF8G30, TOYOTA UB80E, UB80F — (C3 Clutch (outer pack) 3 friction discs / C4 Clutch 4 friction discs)

Interchangeable with a similar transmission drum TOYOTA UB80

• Total drum height - 54 mm;
• Drum outer diameter -179.55 mm;
• Inner diameter [from hub side] - 48 mm.
• The inner diameter of the sleeve is 40.05 mm.

K3 Clutch Steel and Friction Disc Kit:

• Total thickness of the package - 15.18 mm;
• Height [along the inside of the drum] from the piston to the seat of the retaining ring - 17 mm;

Support disk:

• Thickness - 4.30 mm;
• Number of teeth - 48 pcs.
• Inner diameter -149.65 mm.
• Quantity in the set - 1 pcs.

Friction disc:

• Thickness - 1.50 mm;
• Number of teeth - 45 pcs;
• Outer diameter - 166.60 mm;
• Quantity in the set - 3 pcs;

Steel disk:

• Thickness - 2 mm;
• Number of teeth - 48 pcs;
• Inner diameter - 149.60 mm;
• Quantity in the set - 2 mm;

Pressure disc:

• Thickness 3 mm.
• Number of teeth - 48 pcs;
• Inner diameter -149.70 mm;
• Quantity in the set - 1 piece;

K4 Clutch Steel and Friction Disc Set:

• ​Total thickness of the package - 16.45 mm.
• Height (along the inside of the drum) from the piston to the seat of the retaining ring - 17 mm;

Support disk:

• Thickness - 3.10 mm;
• Number of teeth - 32 pcs;
• Inner diameter -111 mm;
• Quantity in the set - 1 piece;

Friction disc:

• Thickness 1.45 mm.
• Number of teeth - 40 pcs.
• Outer diameter -126.80 mm.
• Quantity in the set - 4 pcs.

Steel disk:

• Thickness - 1.80 mm;
• Number of teeth - 32 pcs;
• Inner diameter - 111.15 mm;
• Quantity in the set - 4 pcs;
