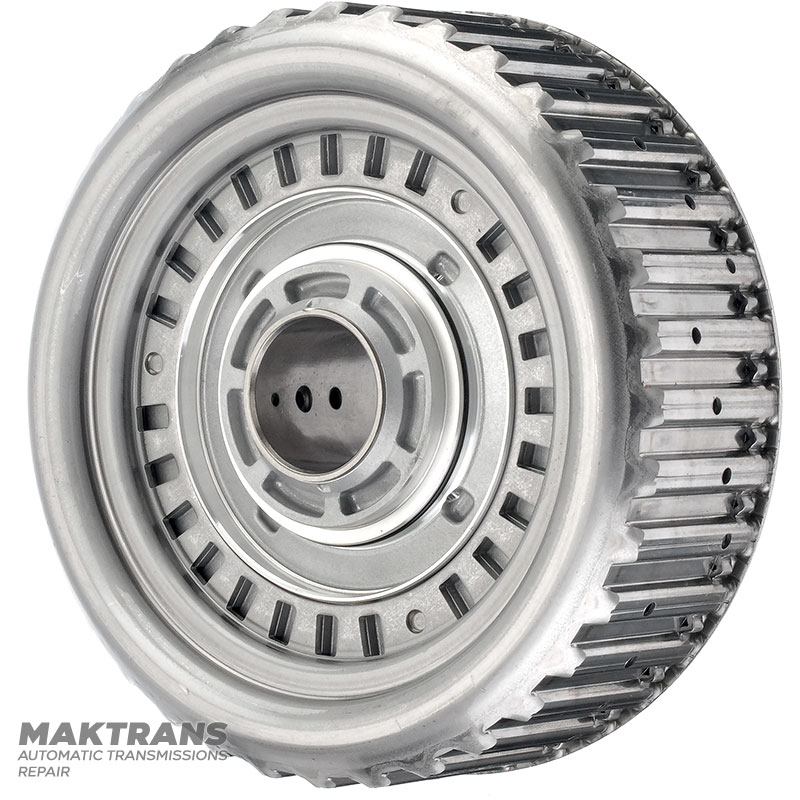

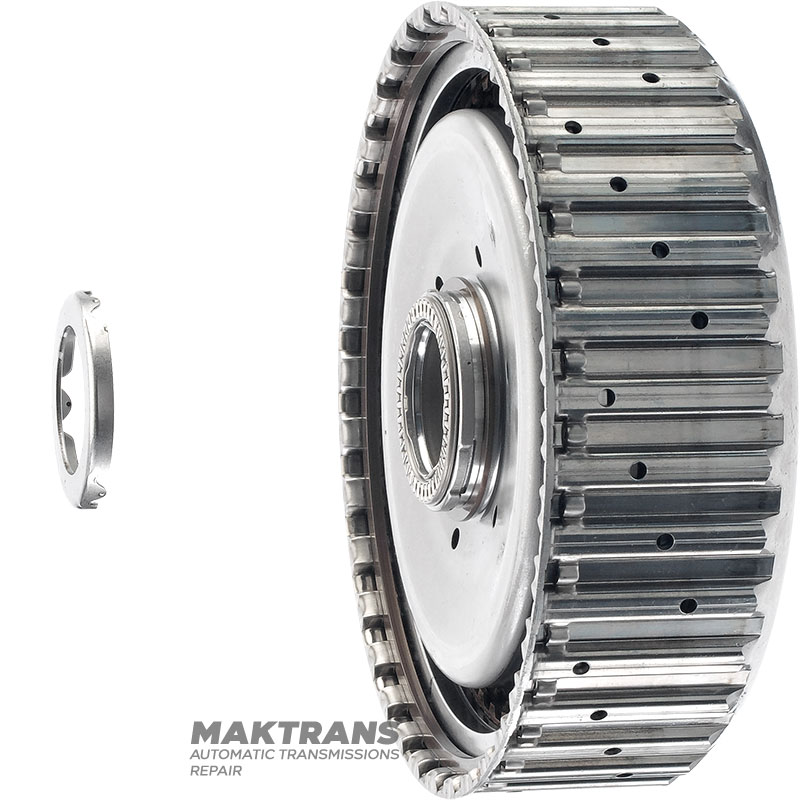

Drum K38 Clutch NISSAN GE9R01A / JATCO JR913E - 5 friction discs

Drum:

• Total height - 61 mm;
• The outer diameter of the drum is 177.25 mm;
• The height from the piston to the retaining ring is 30 mm;

Set of steel and friction discs:

Pressure disk:

• Thickness - 5 mm;
• Inner diameter - 149.50 mm;
• Number of teeth - 36 pcs.;
• Number of discs included - 1 pc.;

Friction disc:

• Thickness - 1.95 mm;
• Outer diameter - 166.50 mm;
• Number of teeth - 48 pcs.;
• Number of discs included - 5 pcs.;

Steel disc:

• Thickness - 1.95 mm;
• Inner diameter - 149.45 mm;
• Number of teeth - 36 pcs.;
• Number of discs included - 6 pcs.;

Spring disc:

• Thickness - 1.20 mm;
• Inner diameter - 149.65 mm;
• Number of teeth - 12 pcs.;
• Number of discs included - 1 pc.;
