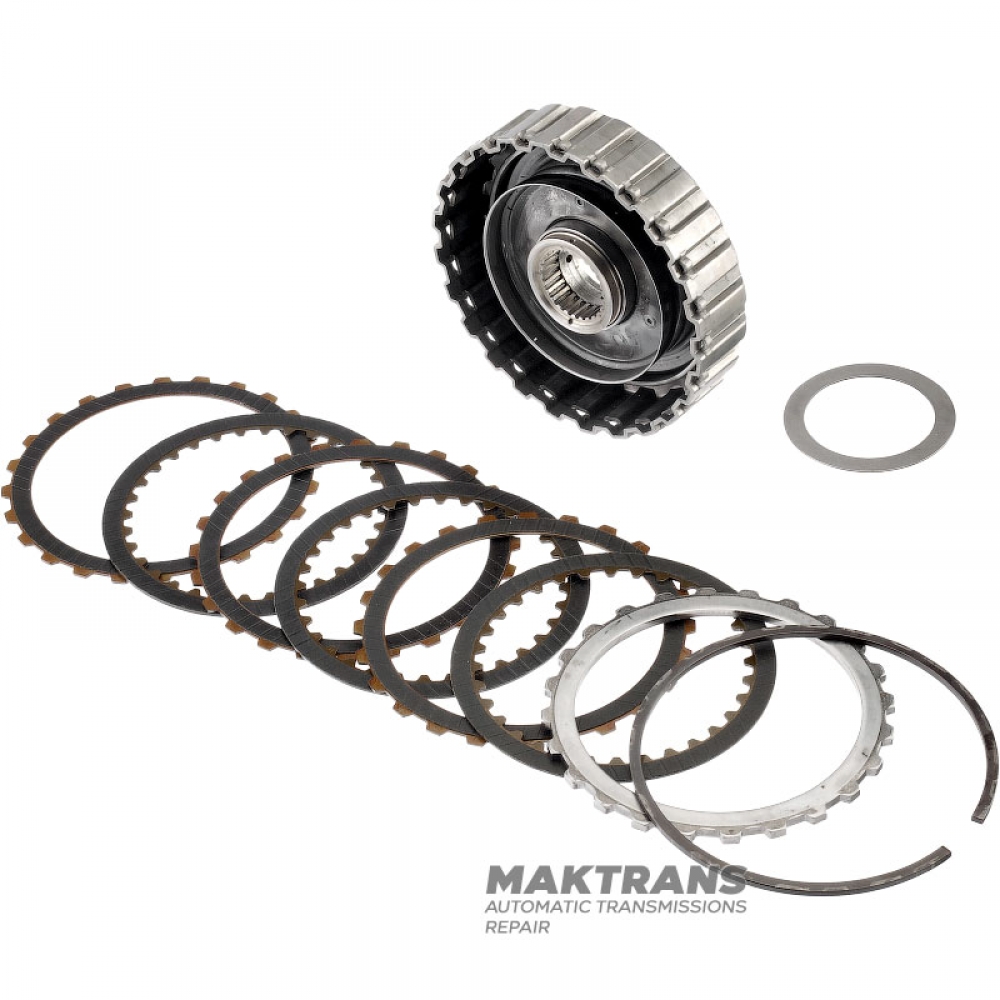

Drum K5 Clutch Mercedes-Benz 722.7 - 3 friction discs, A1683700927

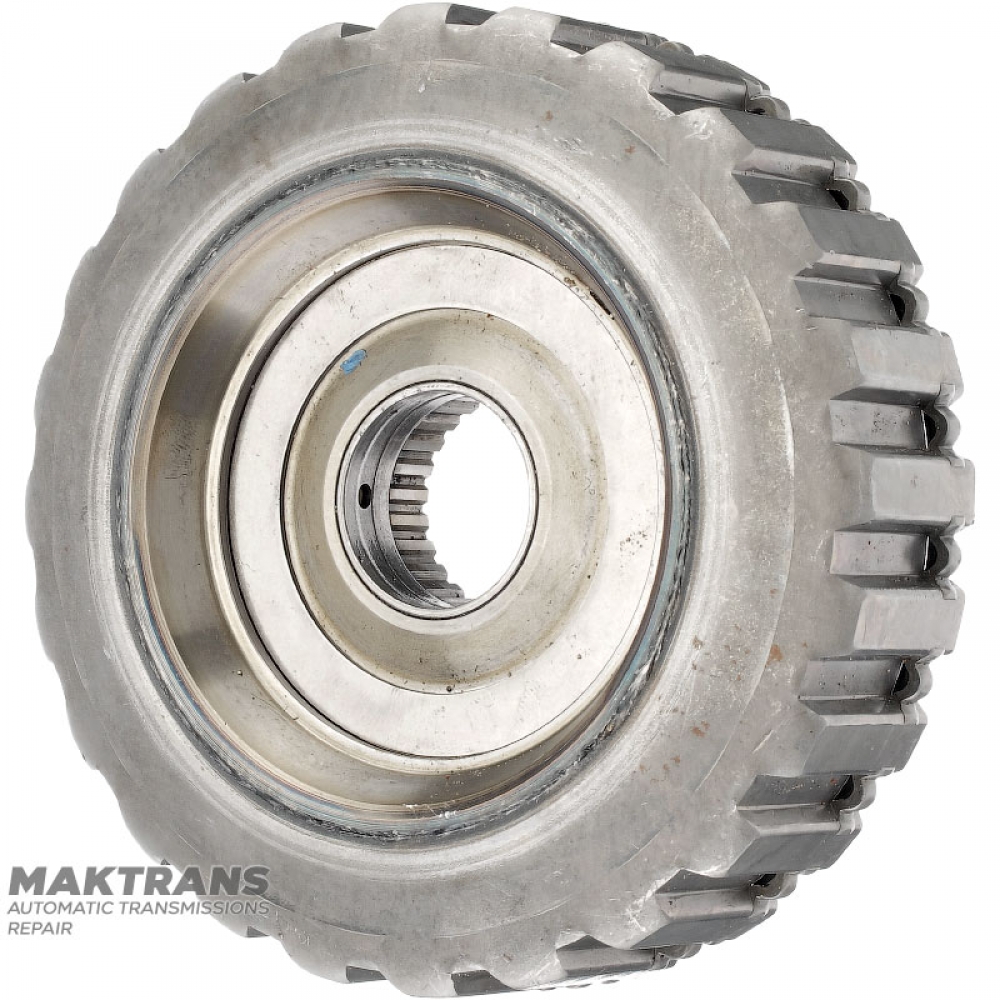

K5 Clutch Drum:

• Overall height - 34 mm;
• Number of splines on the inner side - 36 pcs.;
• Outer diameter - 119.85 mm;
• Height from piston to retaining ring - 14 mm;

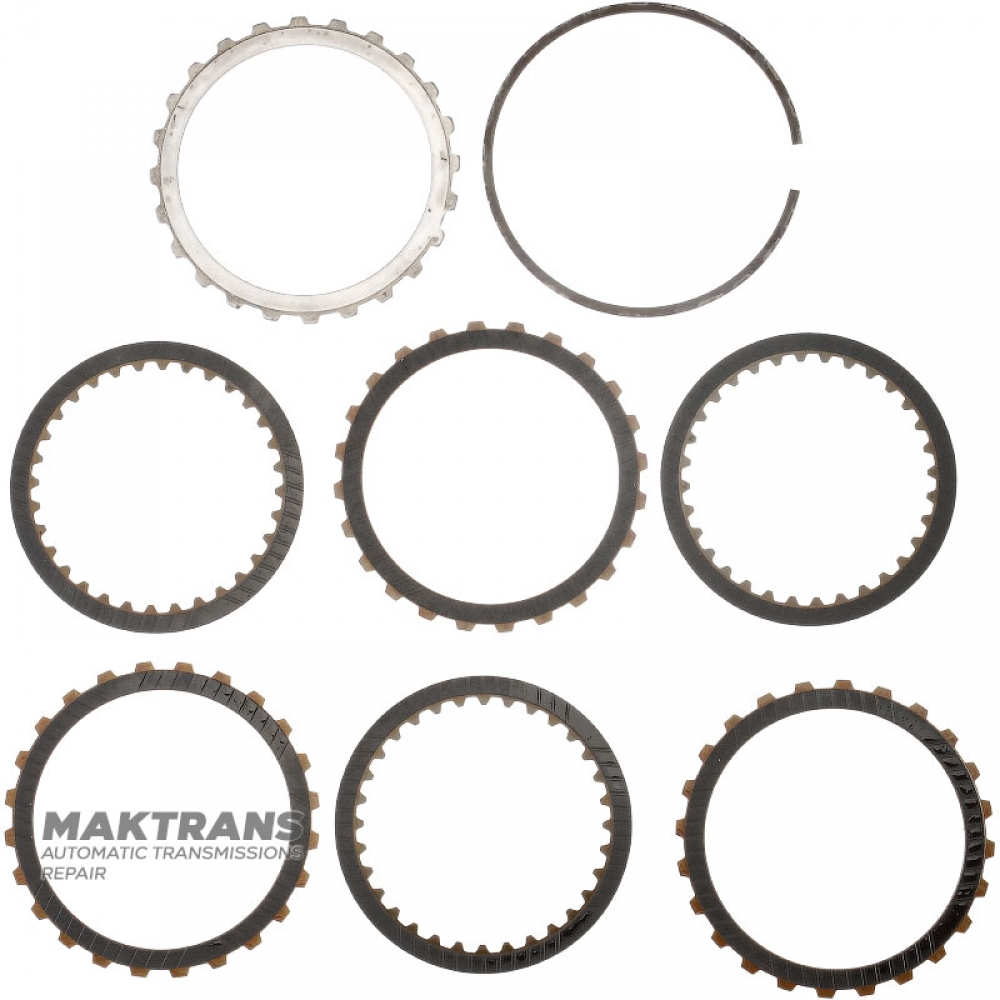

Set of steel and friction discs:

• The total thickness of the set is 13.15 mm;

Support disk:

• Thickness - 3.45 mm;
• Inner diameter - 92.95 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc, single-sided, internal teeth:

• Thickness - 1.60 mm;
• Outer diameter -107.40 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 3 pcs.;

Friction disc, single-sided, external teeth:

• Thickness - 1.60 mm;
• Inner diameter - 93.20 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 3 pcs.;
