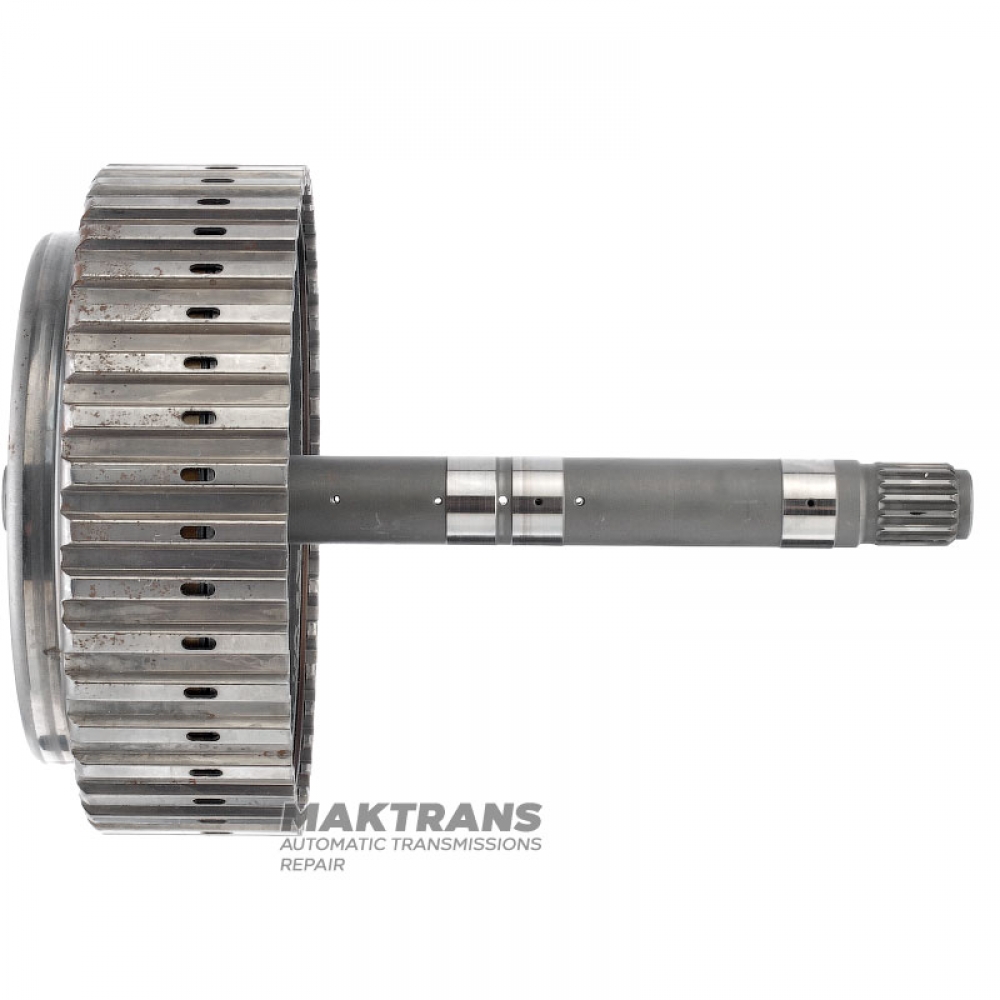

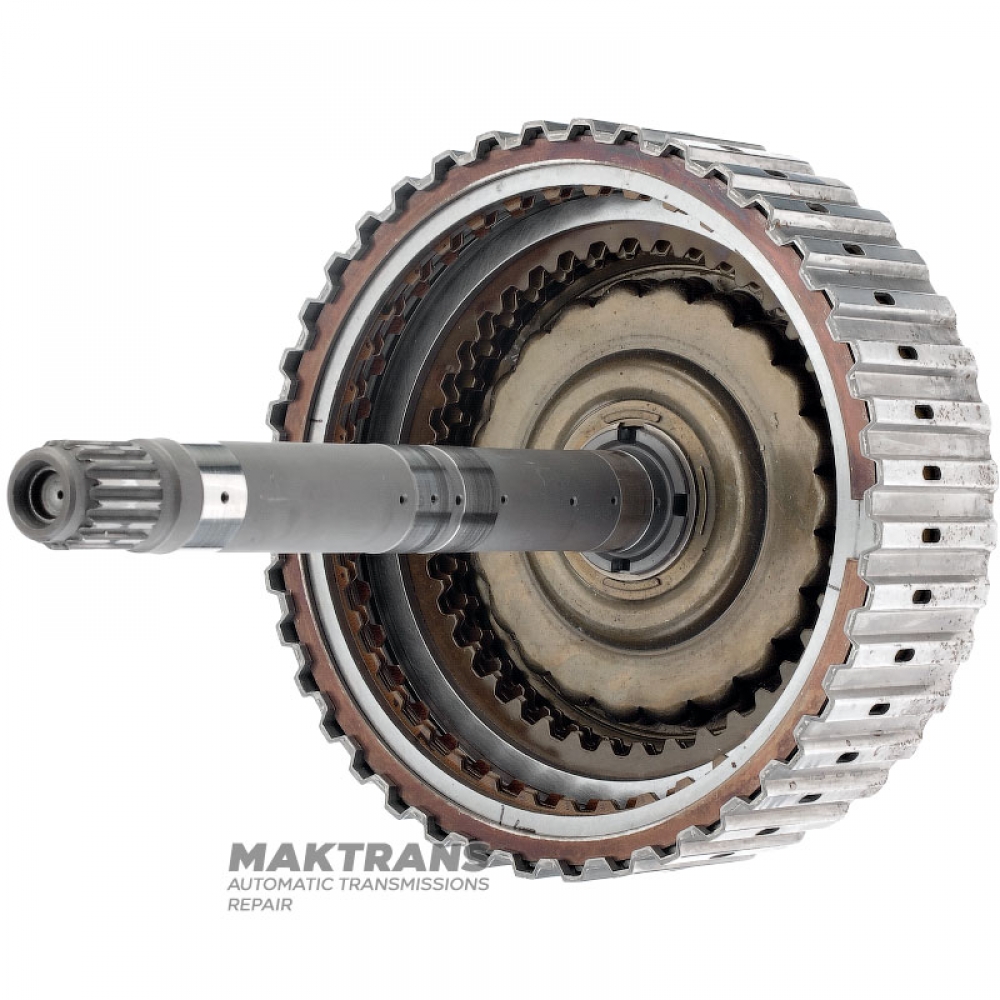

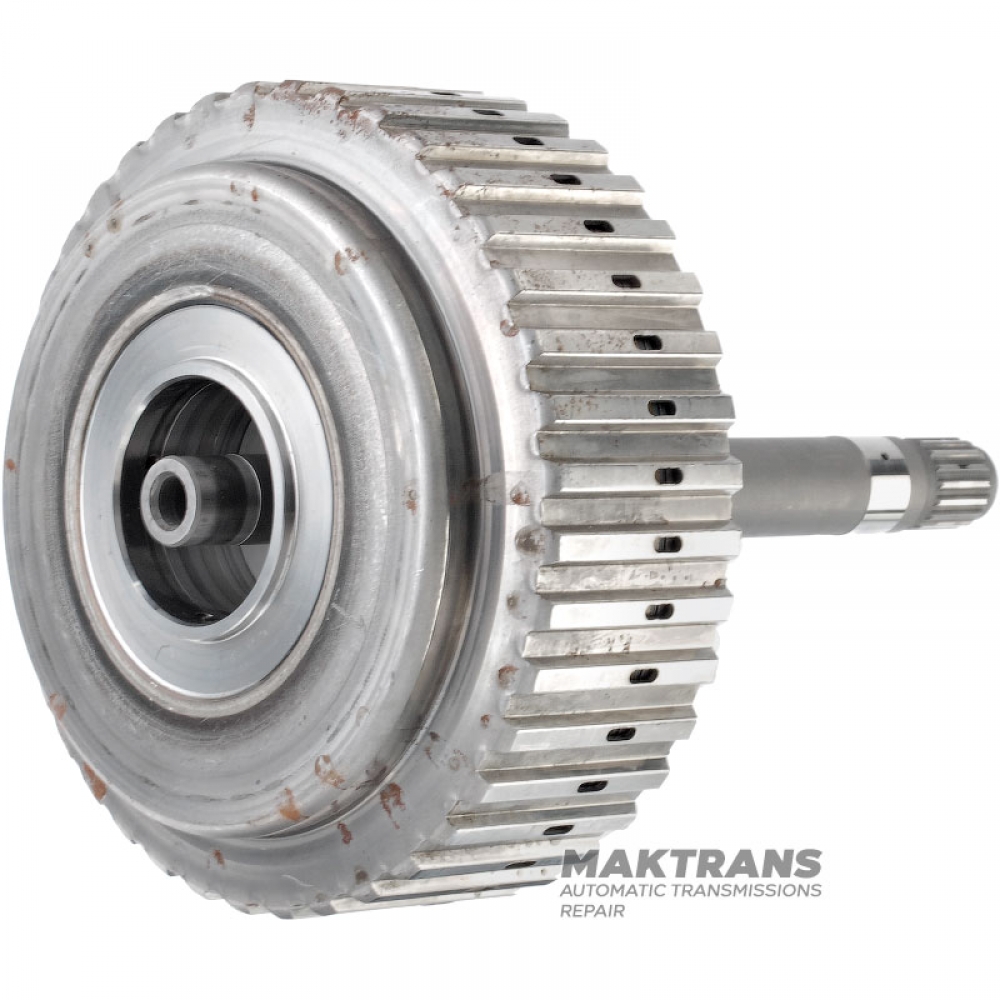

Drum Overdrive (4 discs) / Direct (3 discs) Clutch TOYOTA U150 — 3570833020

• Total height - 244 mm;
• Drum outer diameter - 169.50 mm;
• Inner diameter for the drum hub - 48.60 mm;
• Outer diameter of the pilot (rear part) - 18 mm;
• Number of splines - 16 pcs.;
• The outer diameter of the spline part is 21.50 mm;
• The outer diameter of the working parts of the shaft is 23 mm;

Direct Clutch Steel and Friction Disc Set:

• Height from piston to retaining ring - 16 mm;
• The total thickness of the set is 13.55 mm;

Support disk:

• Thickness - 3.45 mm;
• Inner diameter - 140.70 mm;
• Number of teeth - 40 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 157.10 mm;
• Number of teeth - 40 pcs.;
• Number of discs included - 3 pcs.;

Steel disc:

• Thickness - 1.80 mm;
• Inner diameter - 141.70 mm;
• Number of teeth - 40 pcs.;
• Number of discs included - 3 pcs.;

Spring disc:

• Thickness - 1.50 mm;
• Inner diameter - 141.70 mm;
• Number of teeth - 40 pcs.;
• Number of disks included - 1 piece;

Overdrive Clutch Steel and Friction Disc Set:

• Height from piston to retaining ring - 17 mm;
• The total thickness of the set is 17.55 mm;

Support disk:

• Thickness - 3.40 mm / 2.65 mm;
• Inner diameter - 127.15 mm;
• Number of teeth - 40 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 1.80 mm;
• Outer diameter - 151mm;
• Number of teeth - 40 pcs.;
• Number of discs included - 4 pcs.;

Steel disc:

• Thickness - 1.80 mm;
• Inner diameter - 127.20 mm;
• Number of teeth - 40 pcs.;
• Number of discs included - 4 pcs.;
