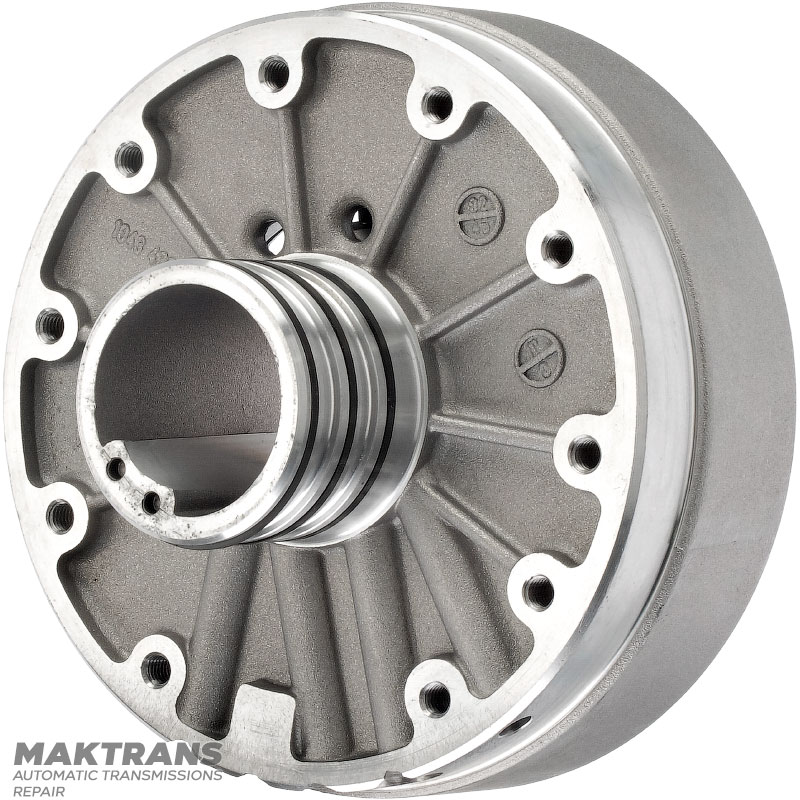

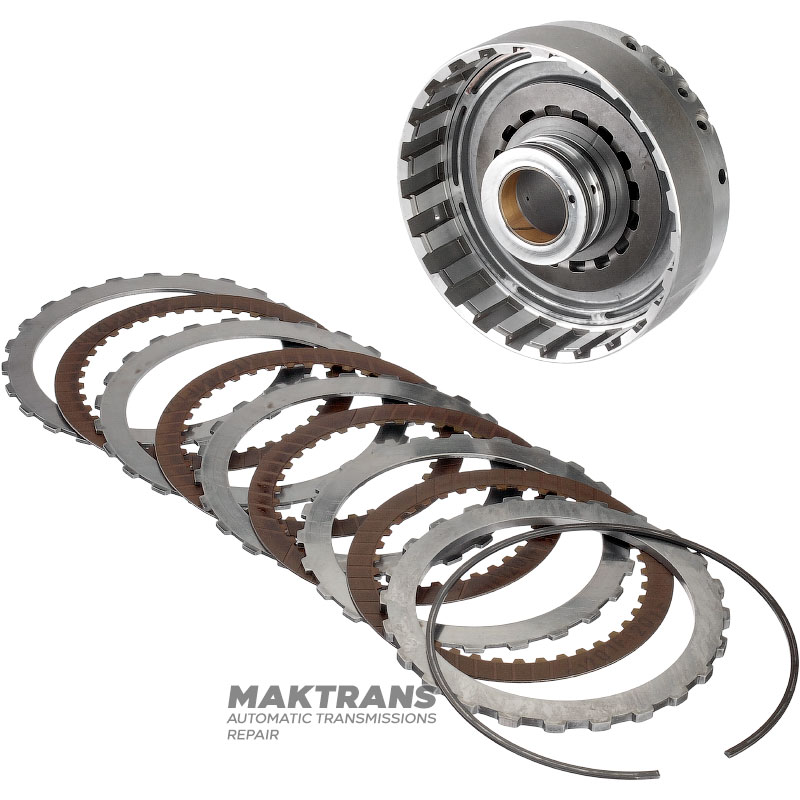

Drum OVERDRIVE Clutch ZF 4HP22, 4HP24 — 1043430098 (4 friction discs, hub 2/3 Teflon rings)

Drum Overdrive Clutch:

• Overall height - 83 mm;
• Drum height - 47.60 mm;

Front side of the drum:

• Inner diameter of the sleeve - 32.05 mm;
• Hub outer diameter (front side of drum) - 51.90 mm;
• Number of Teflon rings on the hub - 2 pcs.;
• Height from piston to retaining ring - 21 mm;

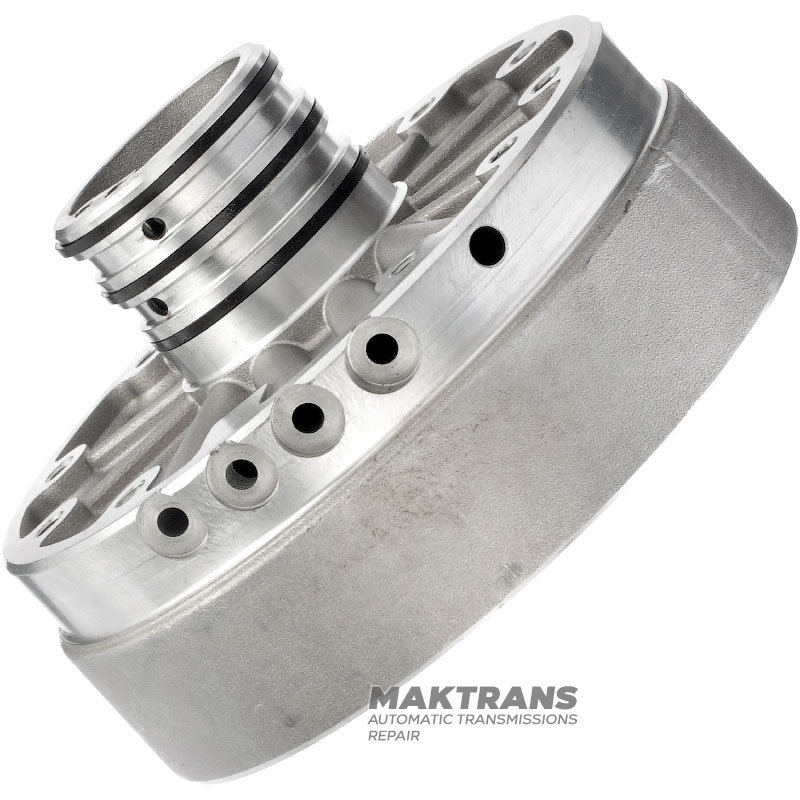

Back of the drum:

• Hub height - 35 mm;
• Outer diameter - 47.60 mm;
• Number of Teflon rings - 3 pcs.;

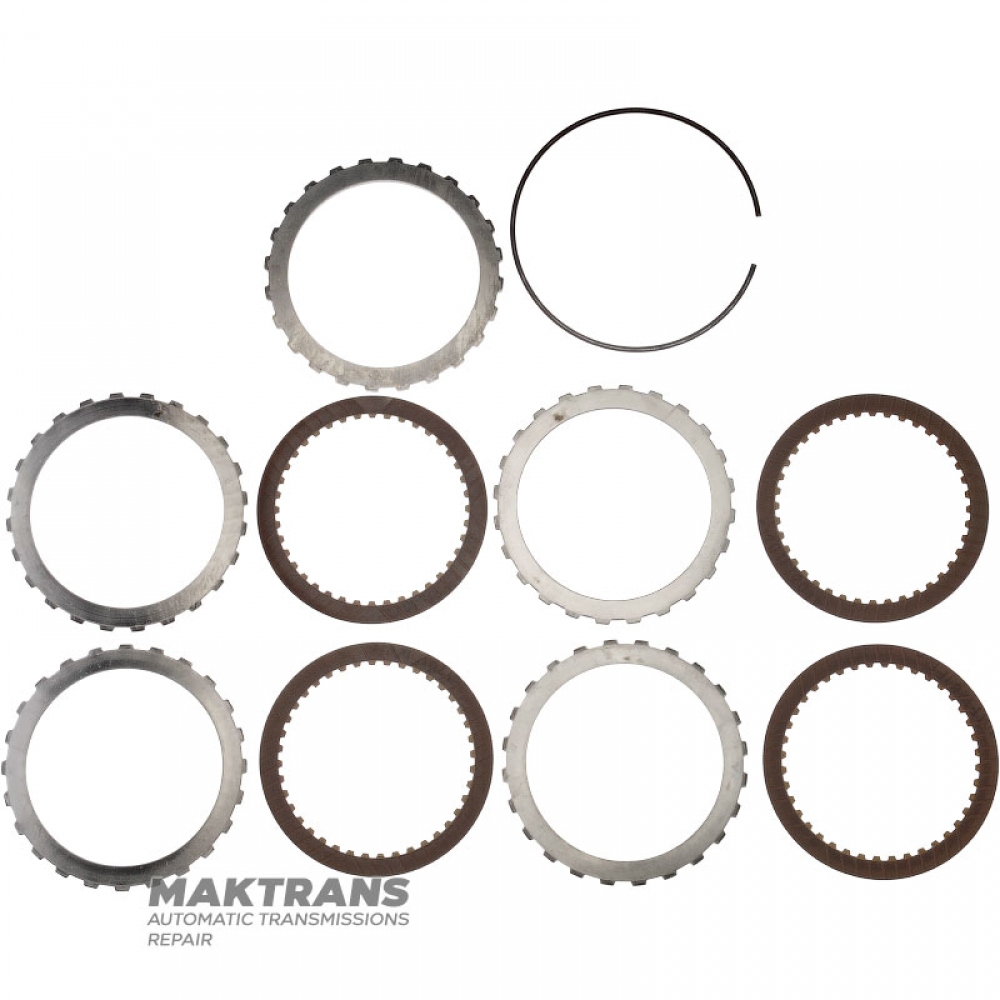

OVERDRIVE Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 19.35 mm;

Support disk:

• Thickness - 4.50 mm;
• Inner diameter - 107.10 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 127.90 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2.15 mm;
• Inner diameter - 106.90 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;
