Drum OVERDRIVE Clutch ZF 4HP22, 4HP24 — 1043430098 (4 friction discs, total thickness of the set 17.50 mm)

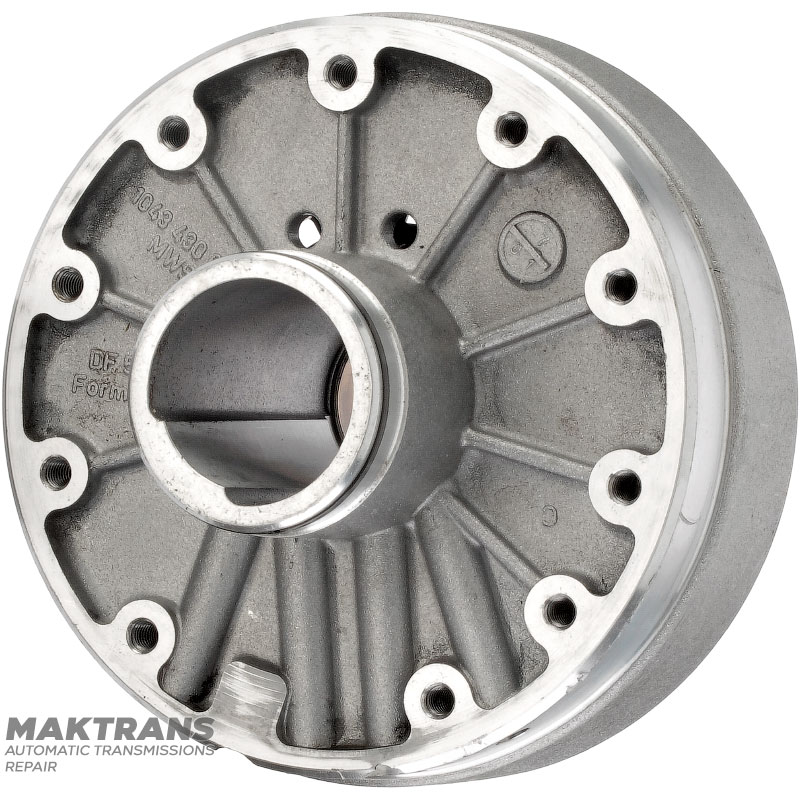

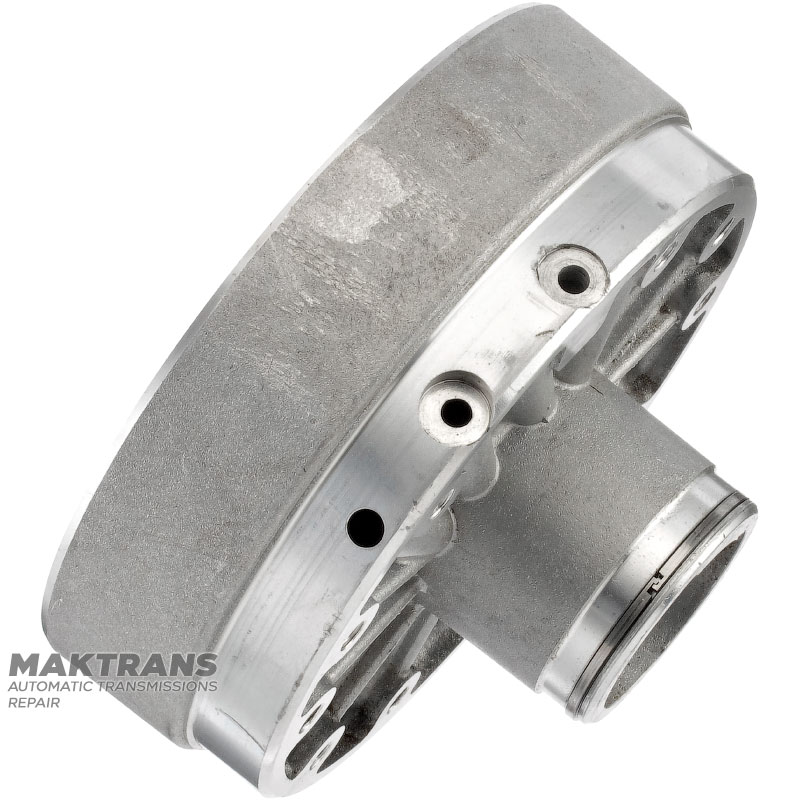

Drum Overdrive Clutch:

• Overall height - 83 mm;
• Drum height - 47.35 mm;
• Inner diameter of the sleeve - 32.05 mm;
• Hub outer diameter (front side of drum) - 51.90 mm;
• The outer diameter of the neck (along the Teflon ring, on the back side of the drum) is 47.60 mm;
• Height from piston to retaining ring - 21 mm;

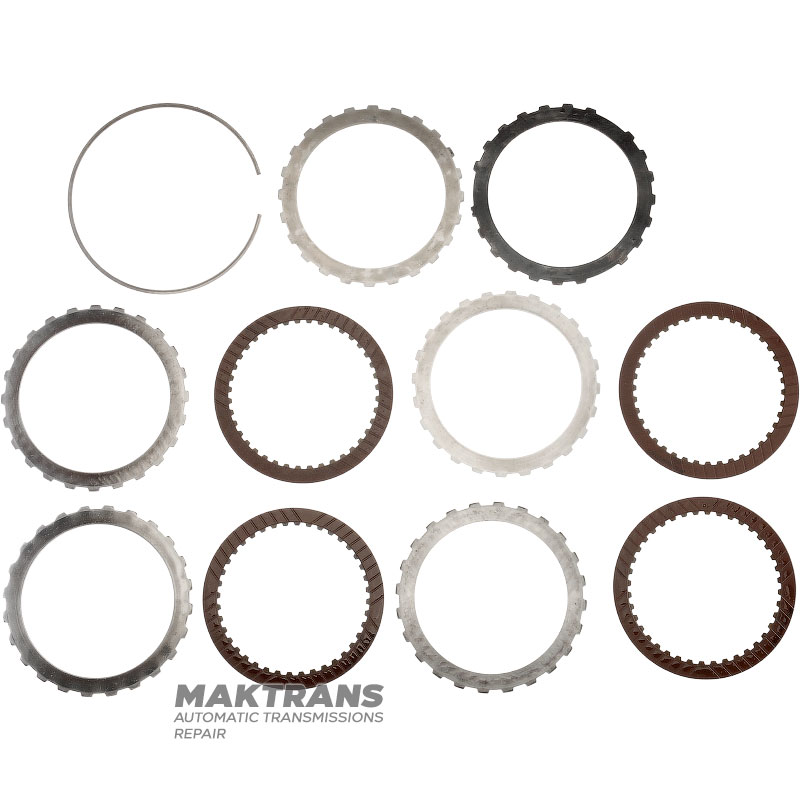

OVERDRIVE Clutch Steel and Friction Disc Kit:

• Total thickness of the set - 17.50 mm;

Support disk:

• Thickness - 4.50 mm;
• Inner diameter - 107.10 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 127.90 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.52 mm;
• Inner diameter - 106.70 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 2.15 mm;
• Inner diameter - 106.70 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 1.40 mm;
• Inner diameter - 106.80 mm;
• Number of teeth - 21 pcs.;
• Number of discs in the set - 1 pc.;
