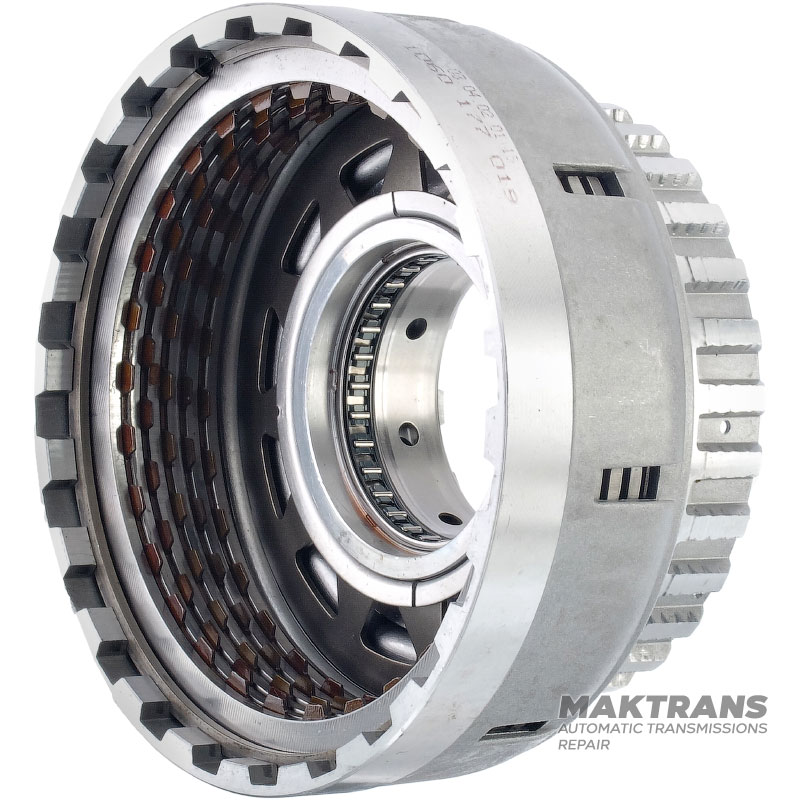

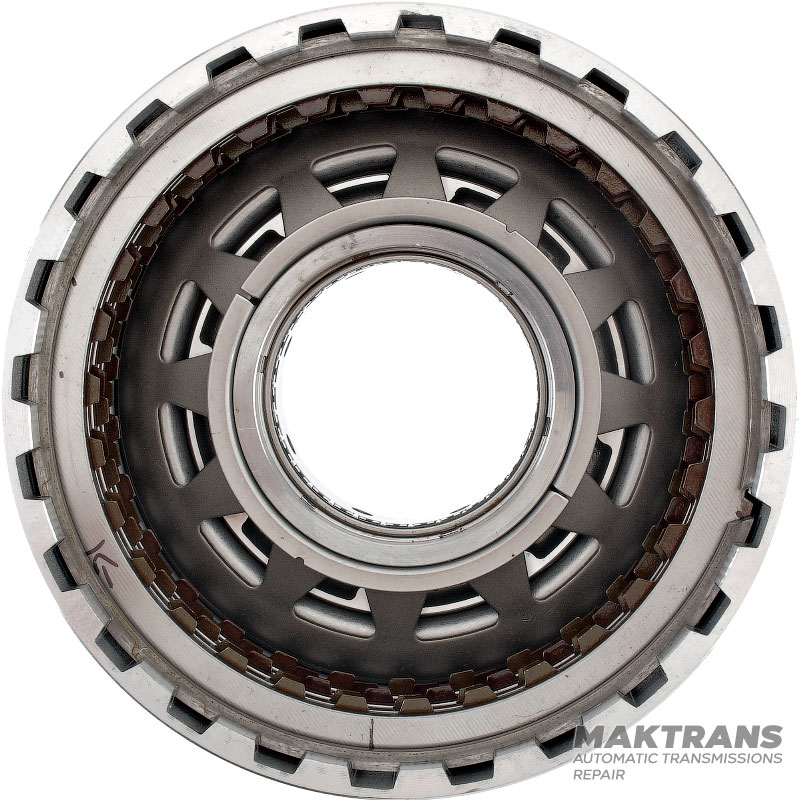

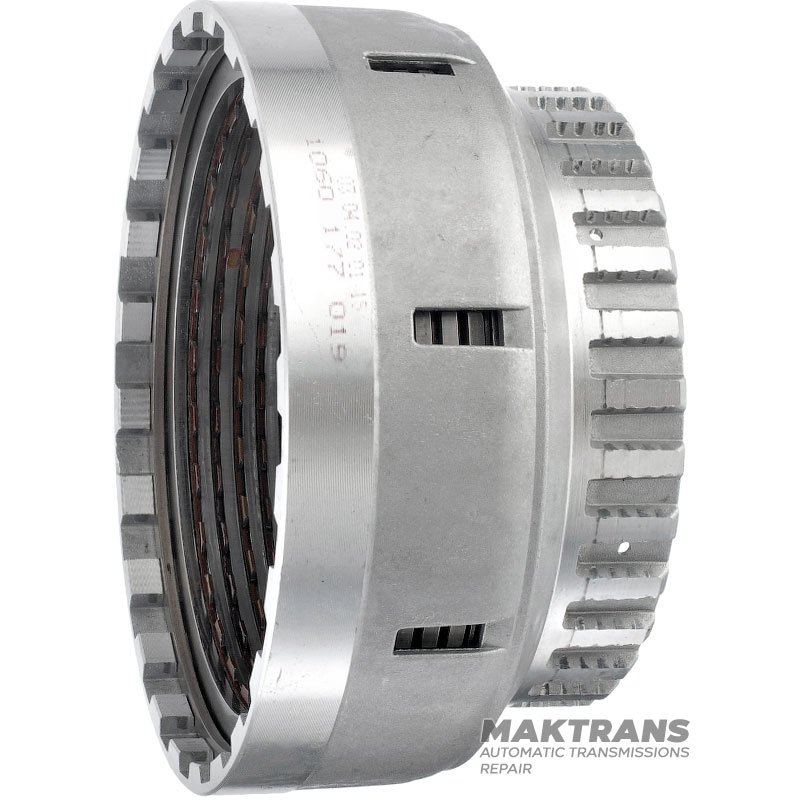

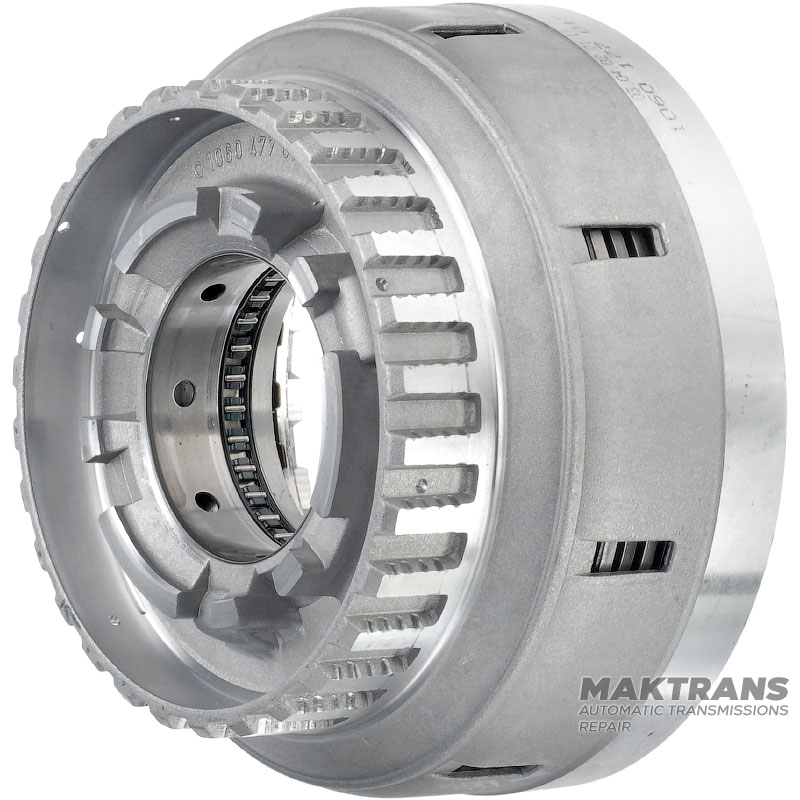

Drum Overdrive Direct Clutch (F Clutch) ZF 5HP19 1060477014 – 5 friction discs

Drum:

• Total height - 78 mm;
• Outer diameter of the drum - 148.45 mm;
• Number of teeth on the outside - 30 pcs.;
• Outer diameter along the outer gear part - 118.65 mm;
• Inner diameter of the sleeve - 55 mm;
• The total height from the piston to the retaining ring is ​28 mm;

Set of steel and friction discs:

• Total thickness of the set - 26.05 mm;

Support disk:

• Thickness - 3 mm;
• Inner diameter - 120.05 mm;
• Number of teeth - 24 pcs.;
• Number of discs included - 6 pcs.;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 134.90 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 5 pcs.;

Spring disc:

• Thickness - 0.85 mm;
• Number of teeth - 24 pcs.;
• Number of discs included - 1 pc.
