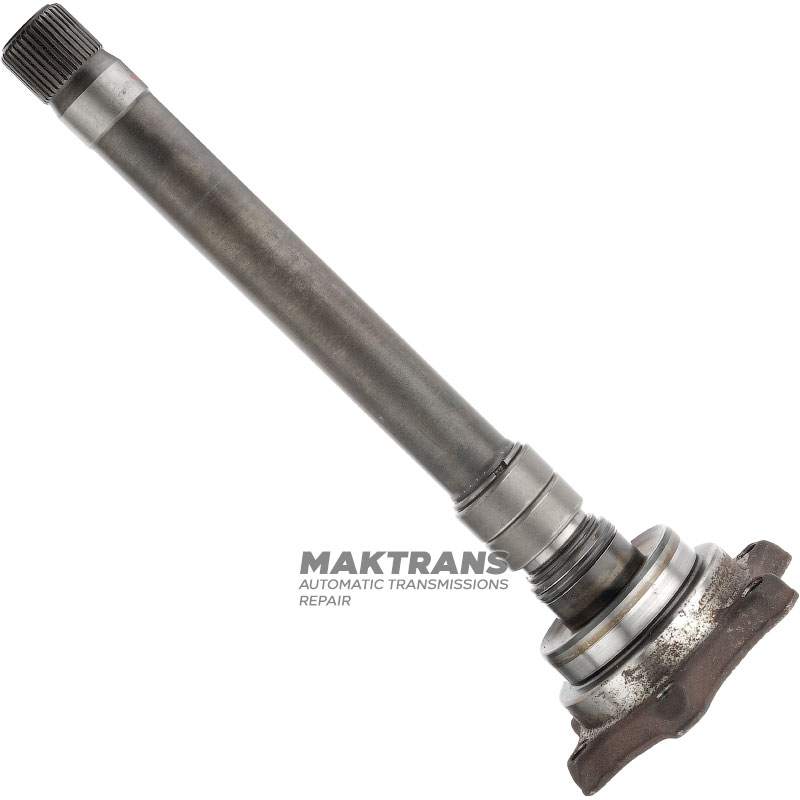

Flange shaft (transfer case) VAG DSG6 DQ250 02E - 0CN409355B, total length 334 mm, 6 mounting holes (distance between centers 50 mm)

• Overall length - 334 mm;
• Number of splines - 37 pcs.;
• The outer diameter of the splined part is 29.80 mm;
• The outer diameter of the working part of the shaft is 40 mm;

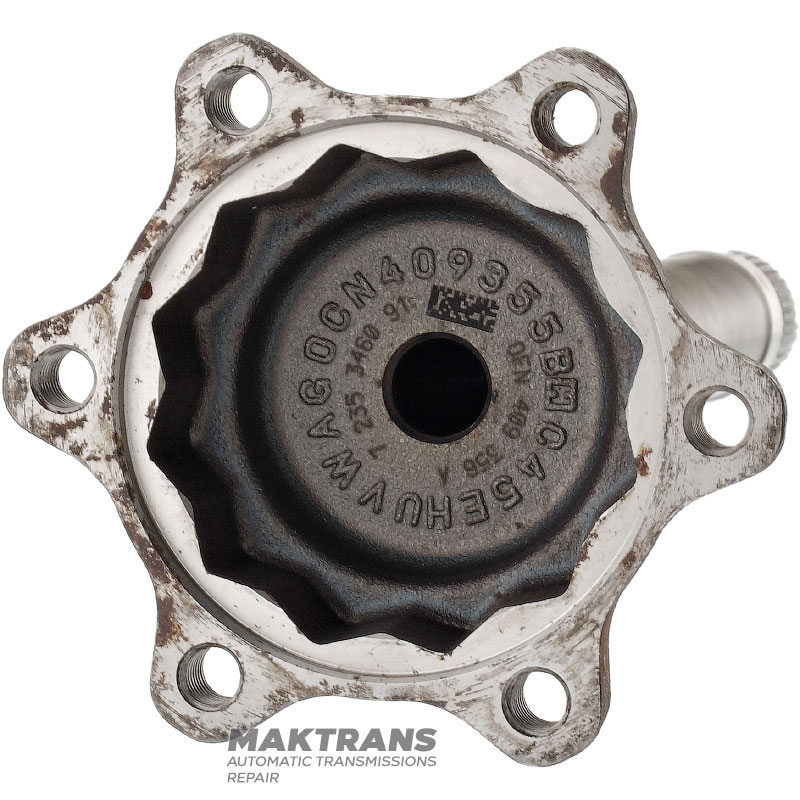

Flange:

• Outer diameter of the working part - 67 mm;
• Number of mounting holes - 6 pcs.;
• Inner diameter of mounting hole: 8.65 mm;
• The distance between the centers of the mounting holes is 50 mm;
• Radius from the center of the flange to the center of the mounting holes - 50 mm;
