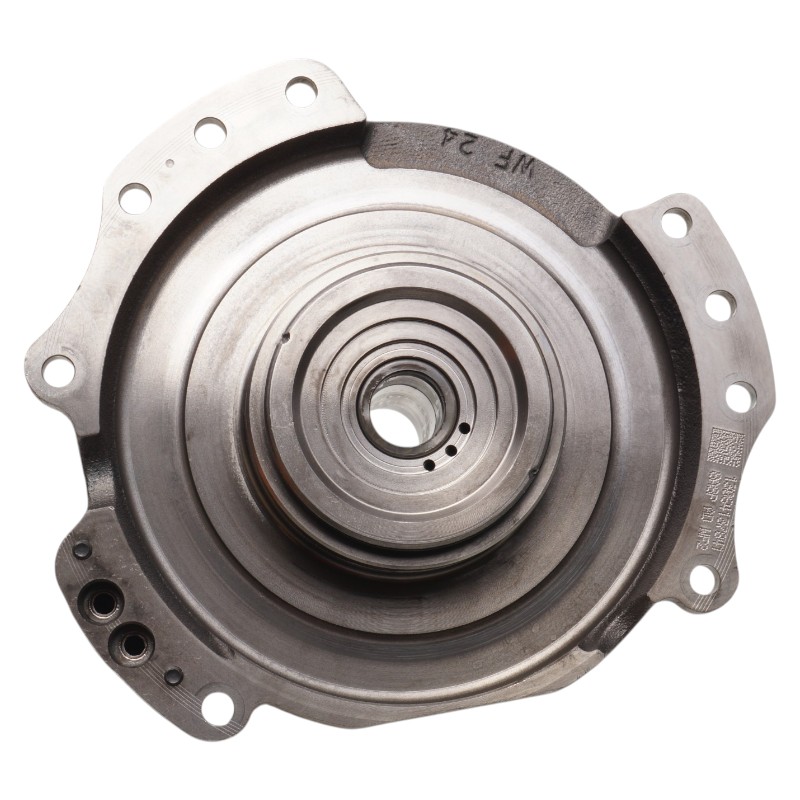

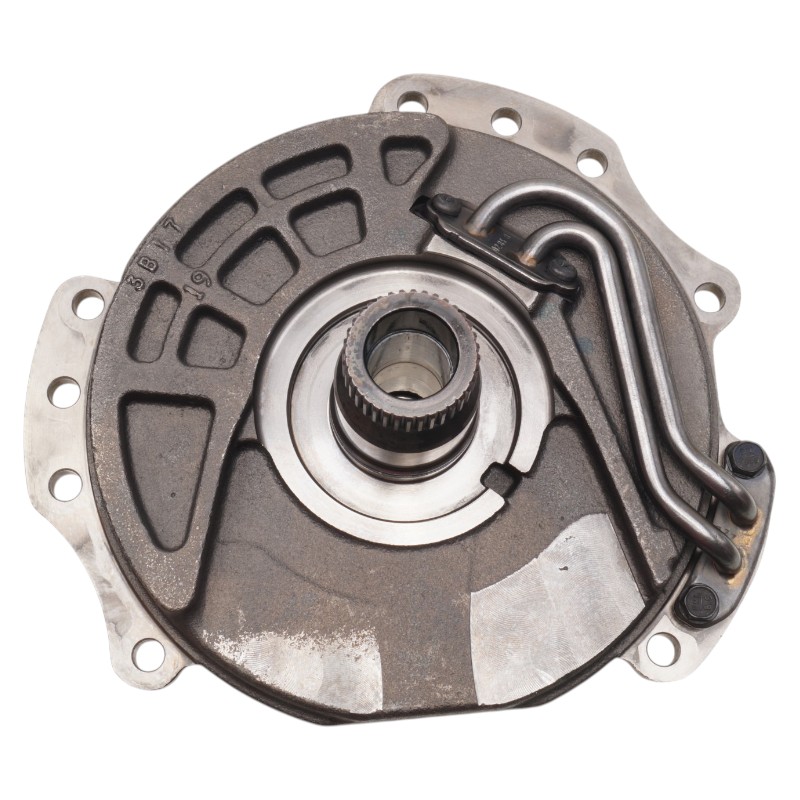

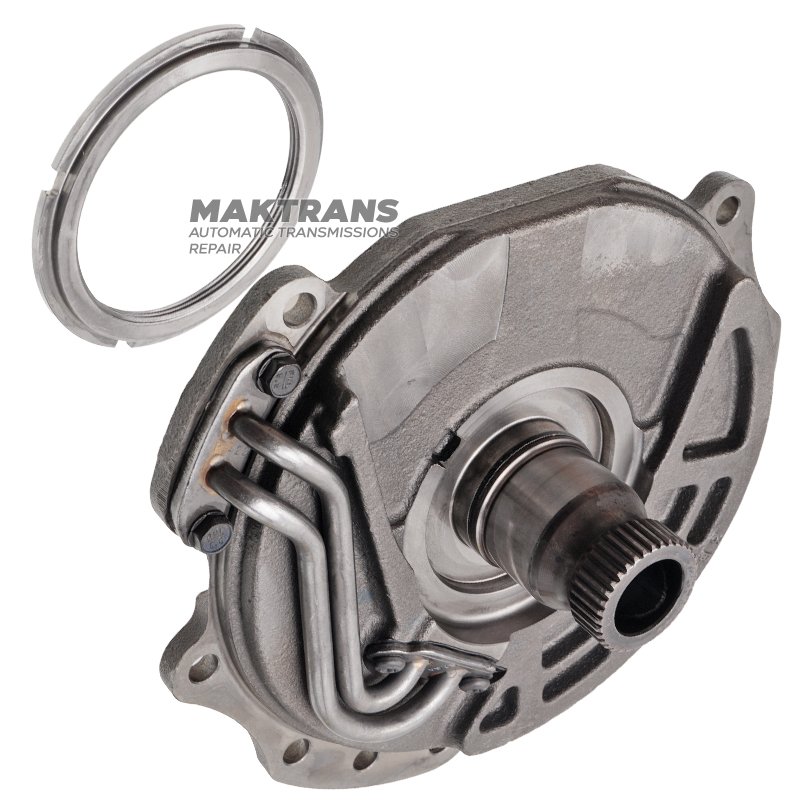

Ford 6F50, 6F55, 8F57 - GM 6F70, 6F75 Helical Pinion Hub

• Overall height - 98 mm;

Front side:

• Stator height - 62 mm;
• Number of splines - 36 pcs.;
• The outer diameter of the splined part is 36.10 mm;
• Outer diameter of the working part - 41.20 mm;
• Outer diameter of Teflon ring - 43.90 mm;

Back side:

• Height - 34 mm;
• Thread outer diameter - 84.85 mm;
• The outer diameter of the bearing seat is 95.95 mm;
