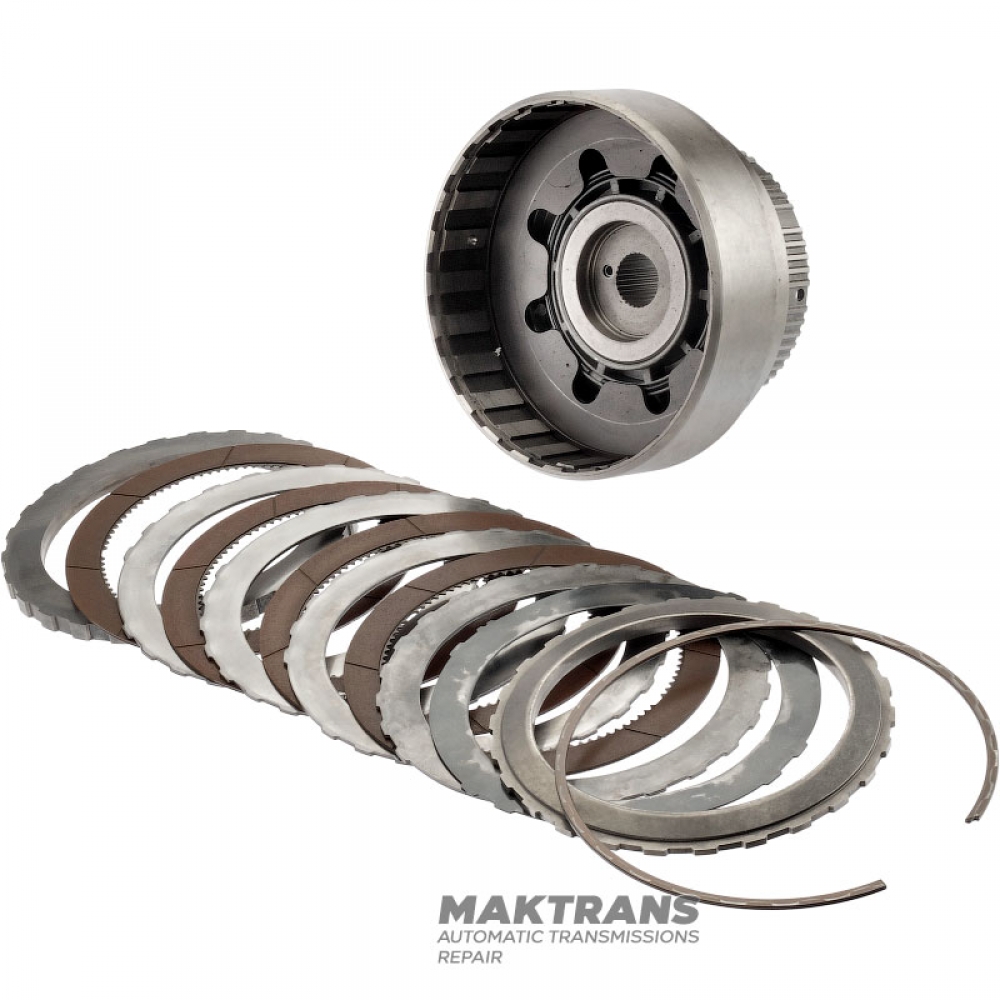

FORWARD Clutch Drum FORD 4R100 - long splines, 4 friction discs, total disc set thickness 27.95 mm

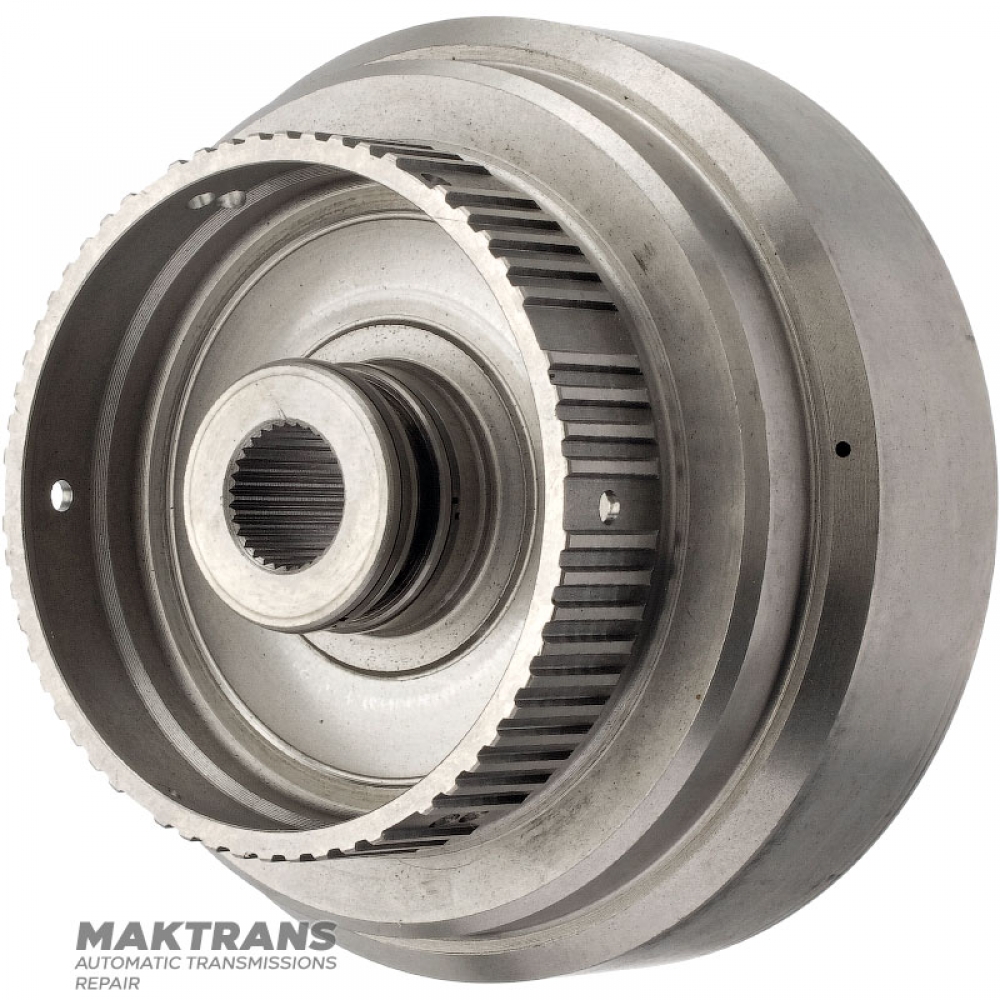

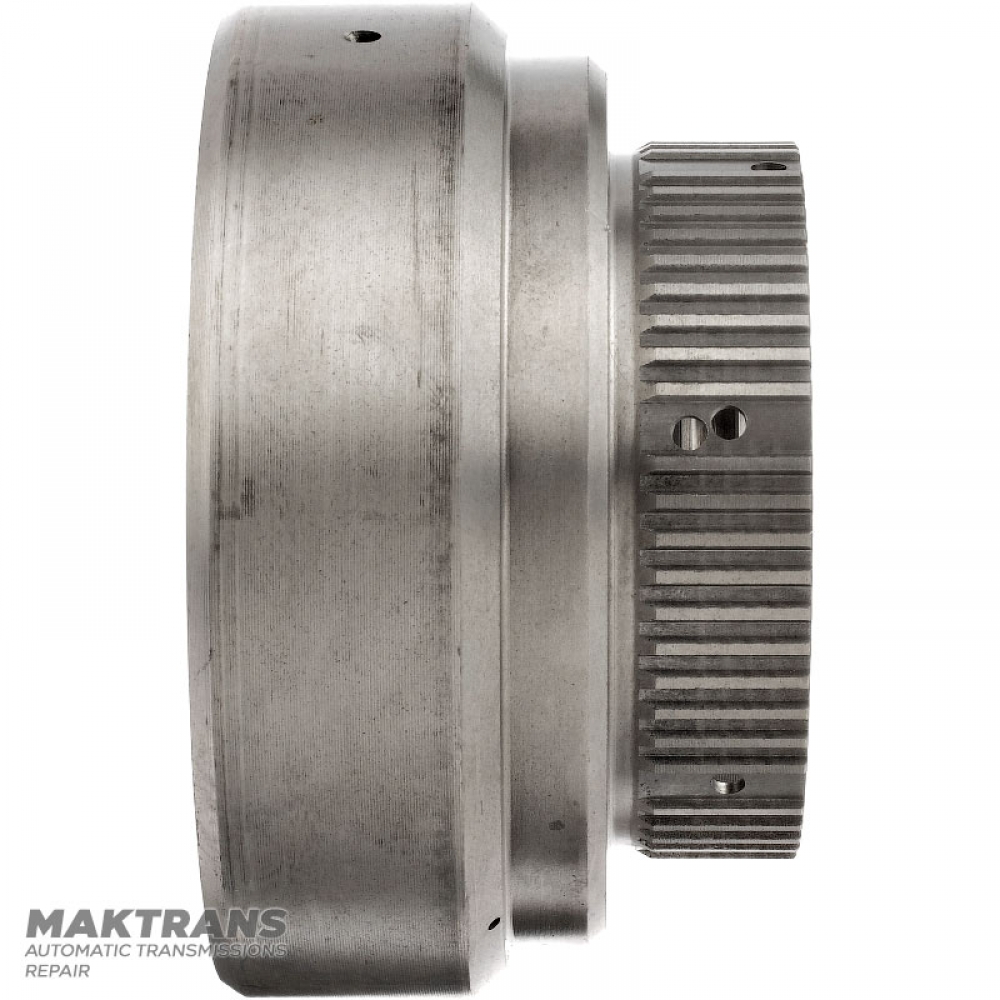

Drum Forward Clutch:

• Total drum height - 100 mm;
• Drum outer diameter - 176.25 mm;
• Hub outer diameter (Direct Clutch hub side) - 47 pcs.;
• Number of splines on the inner part - 30 pcs.;

Direct Clutch Hub:

• Number of teeth - 56 pcs.;
• Hub tooth length - 28 mm;
• Outer diameter - 127 mm;

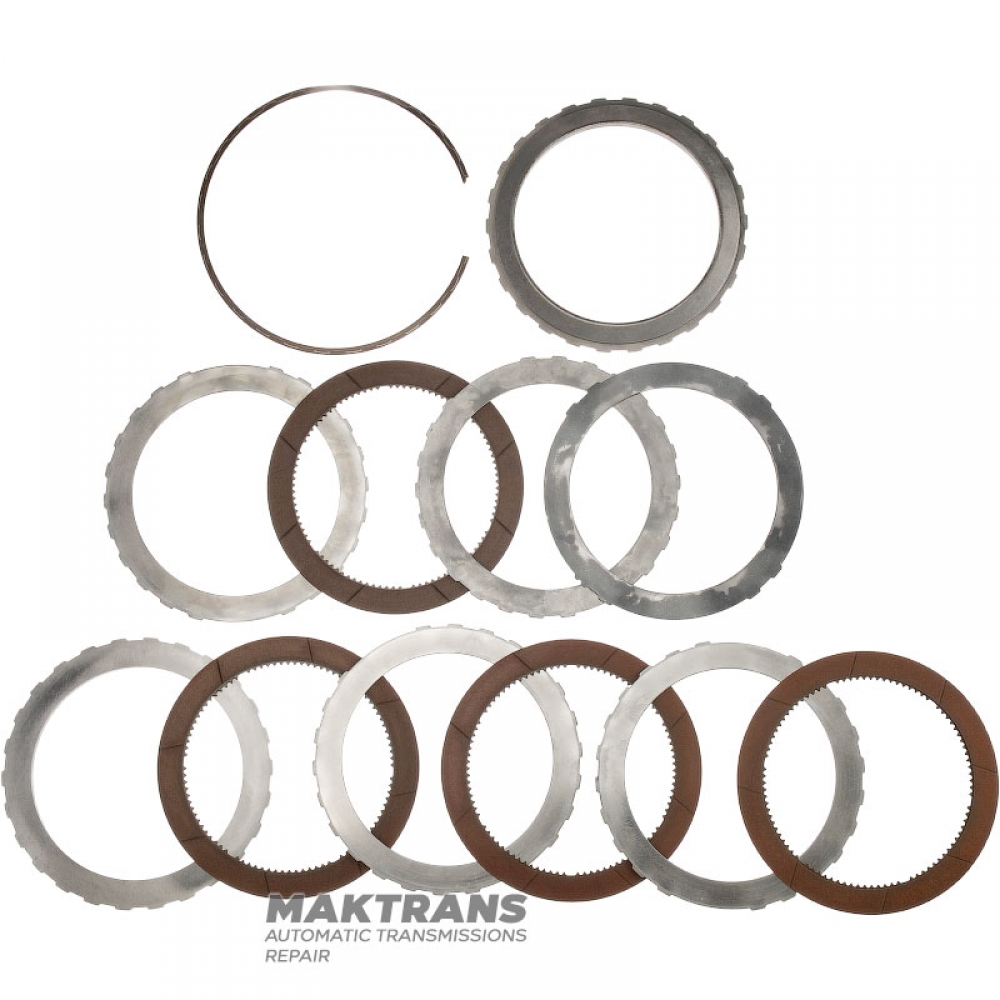

FORWARD Clutch steel and friction disc kit:

• Total thickness of the set -

Support disk:

• Thickness - 8.70 mm;
• Inner diameter - 130 mm;
• Number of teeth - 26 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.95 mm;
• Outer diameter - 161.50 mm;
• Number of teeth - 90 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 130 mm;
• Number of teeth - 26 pcs.;
• Number of discs in the set - 4 pcs.;

Pressure disc:

• Thickness - 3.15 mm (total 7.50 mm);
• Inner diameter - 130 mm;
• Number of teeth - 26 pcs.;
• Number of discs in the set - 1 pc.;
