Main Specifications
Condition (used, new):
used and inspected
Type:

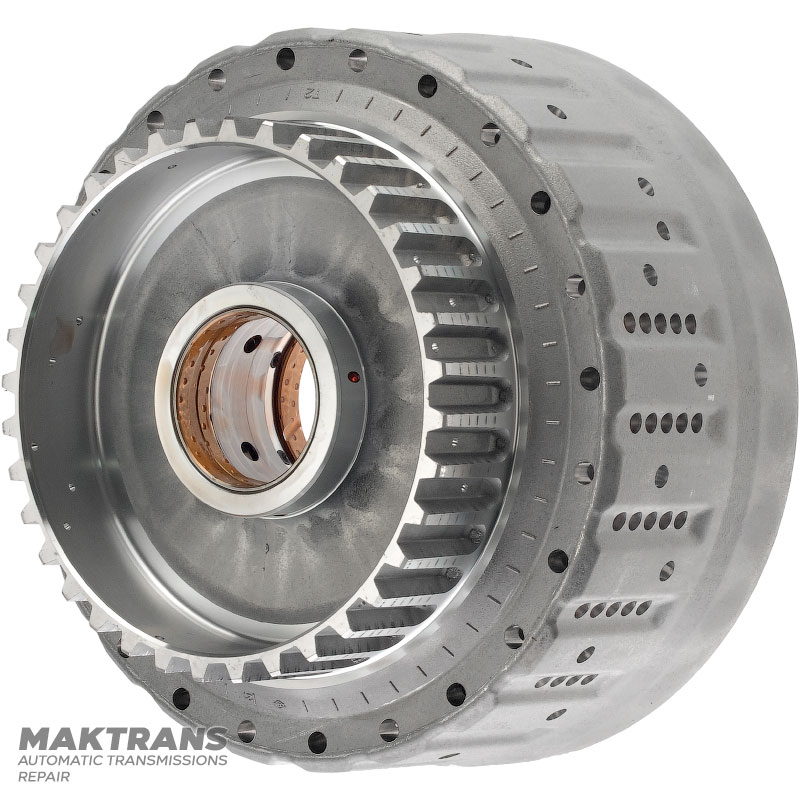

Forward Clutch Drum
Number of friction plates:
7
Spare part number(s):
3561060190
Available Options
| Stock Place: | Availability: | Qty: |
| Ukraine | 1 pcs. |
![]() ![]() |
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)

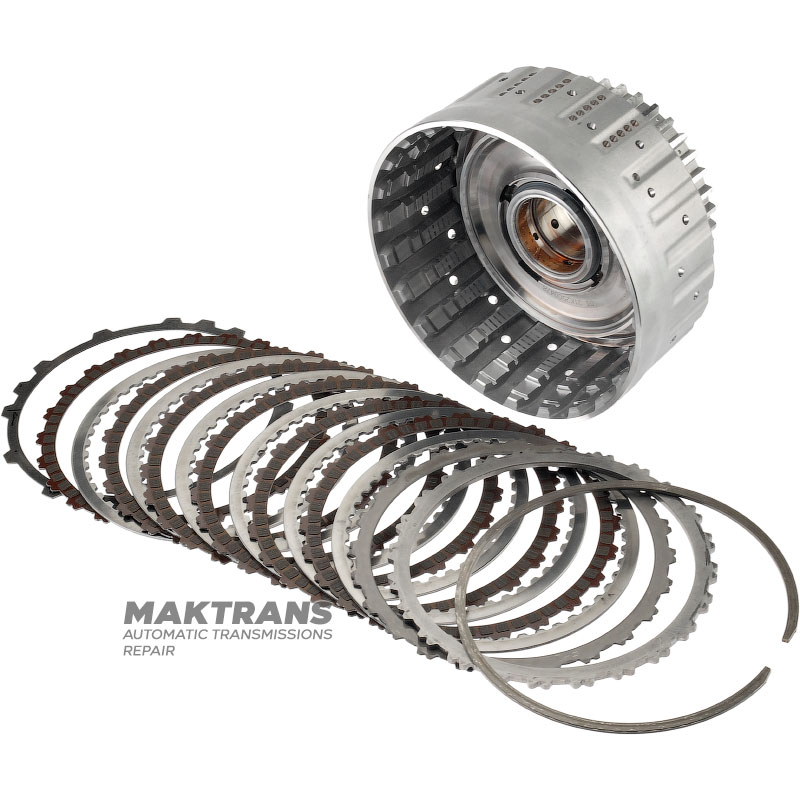

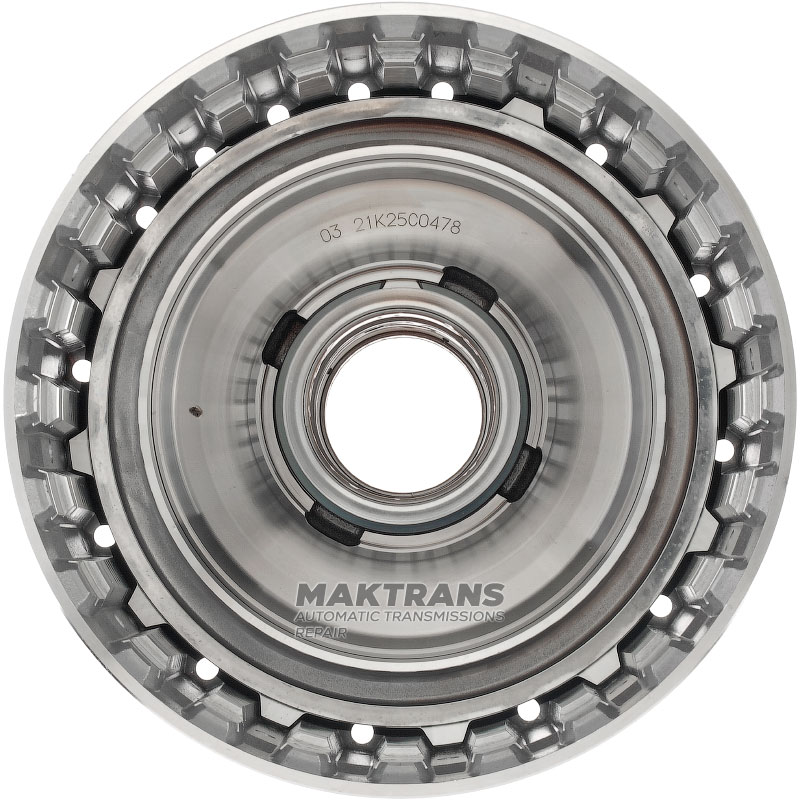

Drum Forward Clutch:
- Overall height - 121 mm;
- Inner diameter of the sleeve - 44.40 mm;
- Drum outer diameter - 202.50 mm;
- The outer diameter of the C3 Clutch hub is 143.70 mm;
- The height of the C3 Clutch hub is 30 mm;

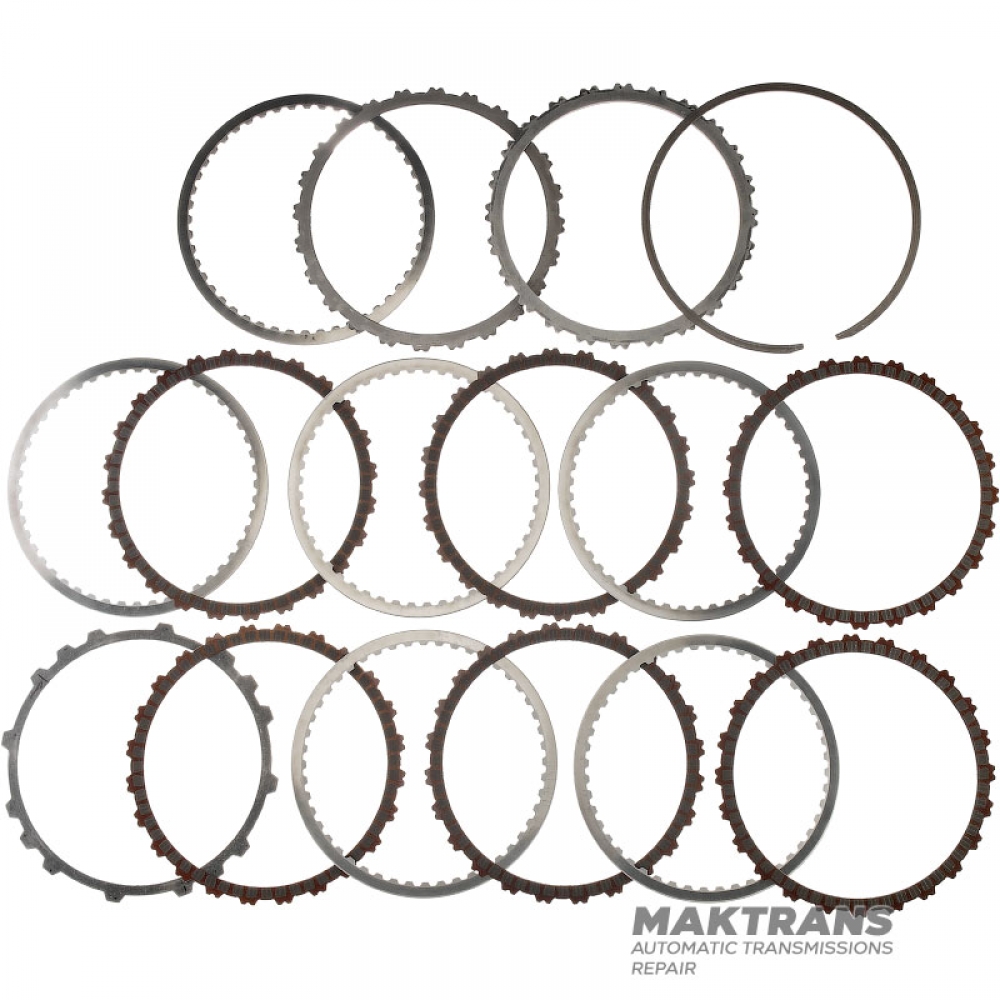

Set of steel and friction discs:
- The total thickness of the set is 33.95 mm;
Support disk:
- Thickness - 4.30 mm;
- Inner diameter - 160.70 mm;
- Number of teeth - 24 pcs.;
- Number of discs in the set - 1 pc.;
Friction disc (single-sided):
- Thickness - 1.80 mm;
- Inner diameter - 160.80 mm;
- Number of teeth - 24 mm;
- Number of discs in the set - 2 pcs.;
Steel disk:
- Thickness - 2.43 mm;
- Outer diameter - 176.60 mm;
- Number of teeth - 48 pcs.;
- Number of discs in the set - 6 pcs.;
Friction disc (double-sided):
- Thickness - 2.12 mm;
- Inner diameter - 160.55 mm;
- Number of teeth - 24 mm;
- Number of discs in the set - 5 pcs.;
Spring disc:
- Thickness - 1.08 mm;
- Inner diameter - 161 mm;
- Number of teeth - 16 mm;
- Number of discs in the set - 1 pc.;
