FORWARD Clutch FORD 5R110W 3C3Z-7A360-SA Drum — 4 friction discs (76 teeth), total kit thickness 21.25 mm

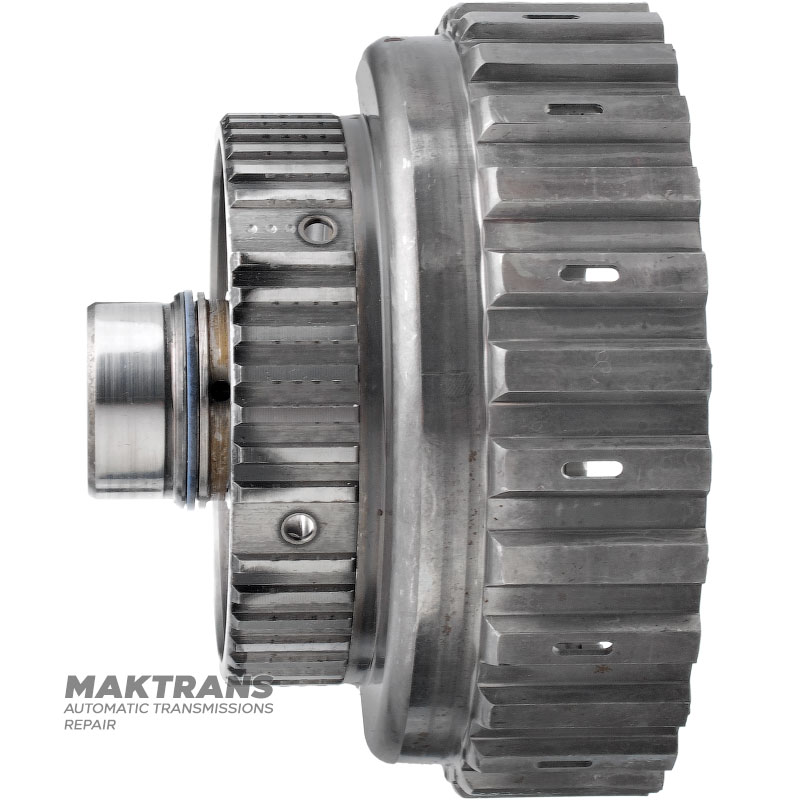

Drum FORWARD Clutch:

• Overall height - 124 mm;
• The outer diameter of the drum is 176 mm;
• Height from piston to retaining ring - 23 mm;
• The height of the DIRECT hub is 26 mm;
• The outer diameter of the DIRECT hub is 126.90 mm;
• Hub diameter with Teflon rings - 48.30 mm;
• Number of splines on the inner side - 30 pcs.;

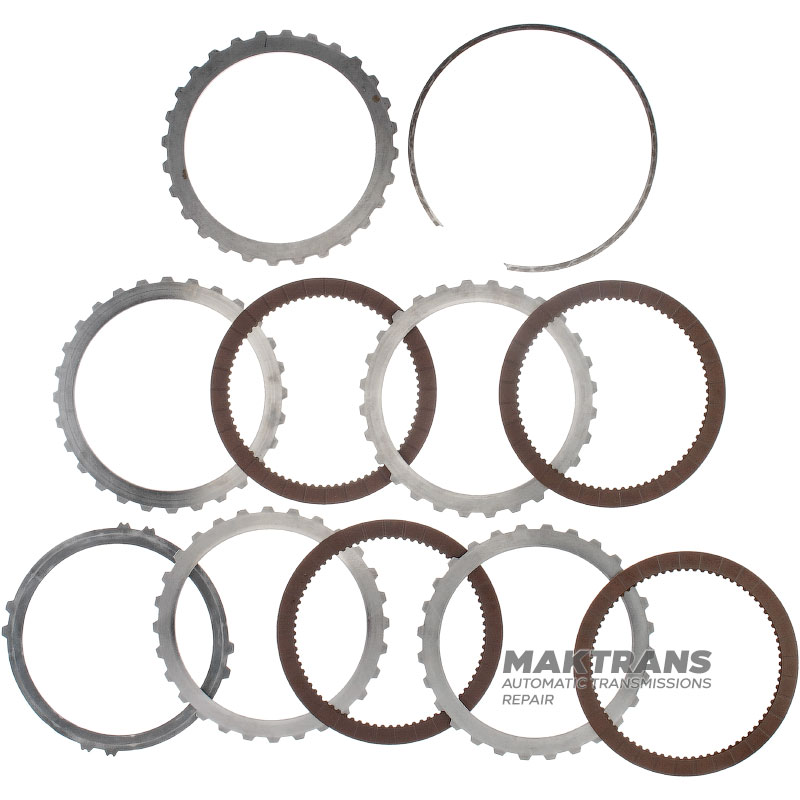

FORWARD Clutch steel and friction disc kit:

• The total thickness of the set is 21.25 mm;

Pressure disc:

• Thickness - 5.15 mm;
• Inner diameter - 130.25 mm;
• Number of teeth - 28 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2 mm;
• Outer diameter - 159.10 mm;
• Number of teeth - 76 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2.05 mm;
• Inner diameter - 130.10 mm;
• Number of teeth - 28 pcs.;
• Number of discs in the set - 4 pcs.;

Spring disc:

• Thickness - 1.05 mm;
• Inner diameter - 130 mm;
• Number of teeth - 8 pcs.;
• Number of discs in the set - 1 pc.;

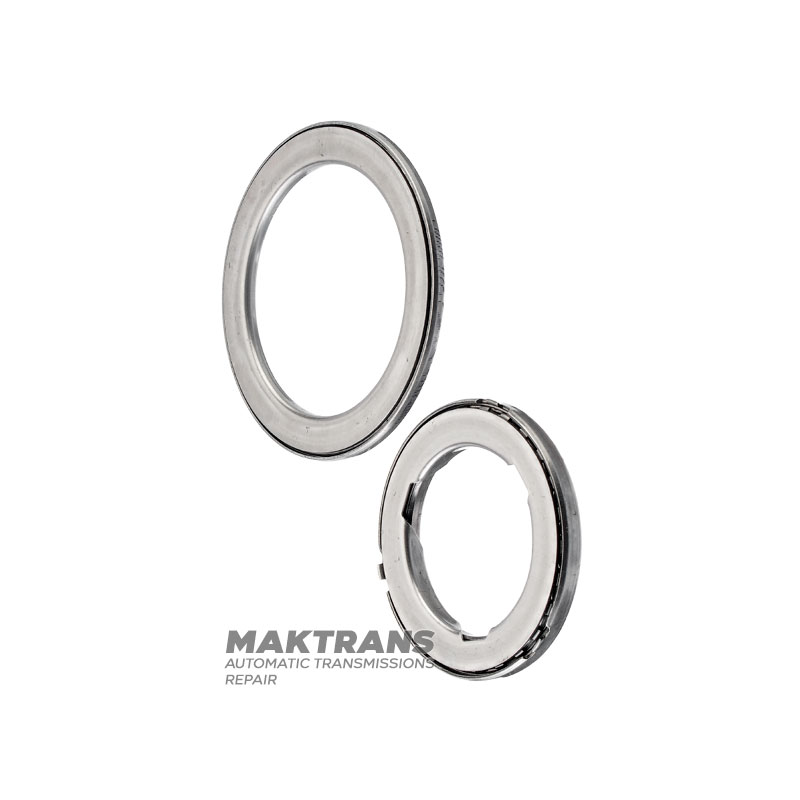

Bearings:

#1

• Thickness - 5.45 mm;
• Outer diameter - 53.50 mm;
• Inner diameter - 35.75 mm;

#2

• Thickness - 3.60 mm;
• Outer diameter - 69.50 mm;
• Inner diameter - 50.70 mm
