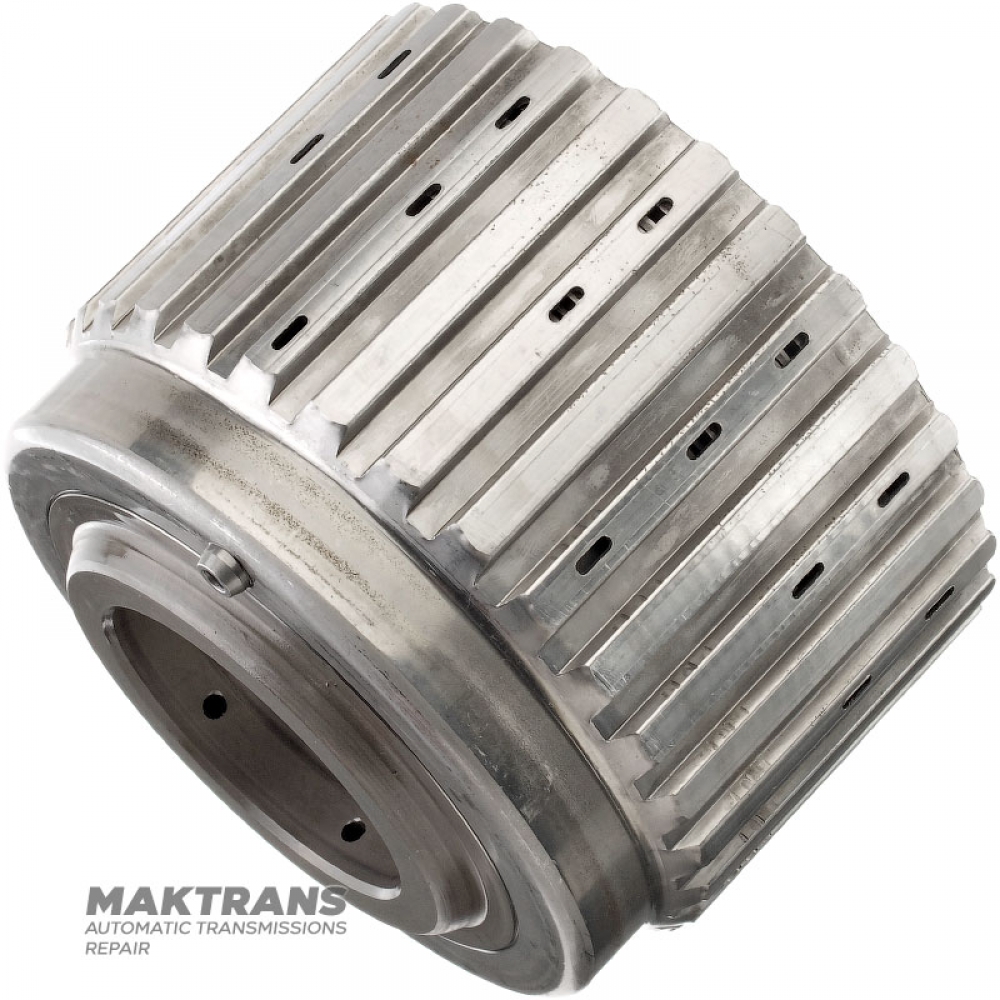

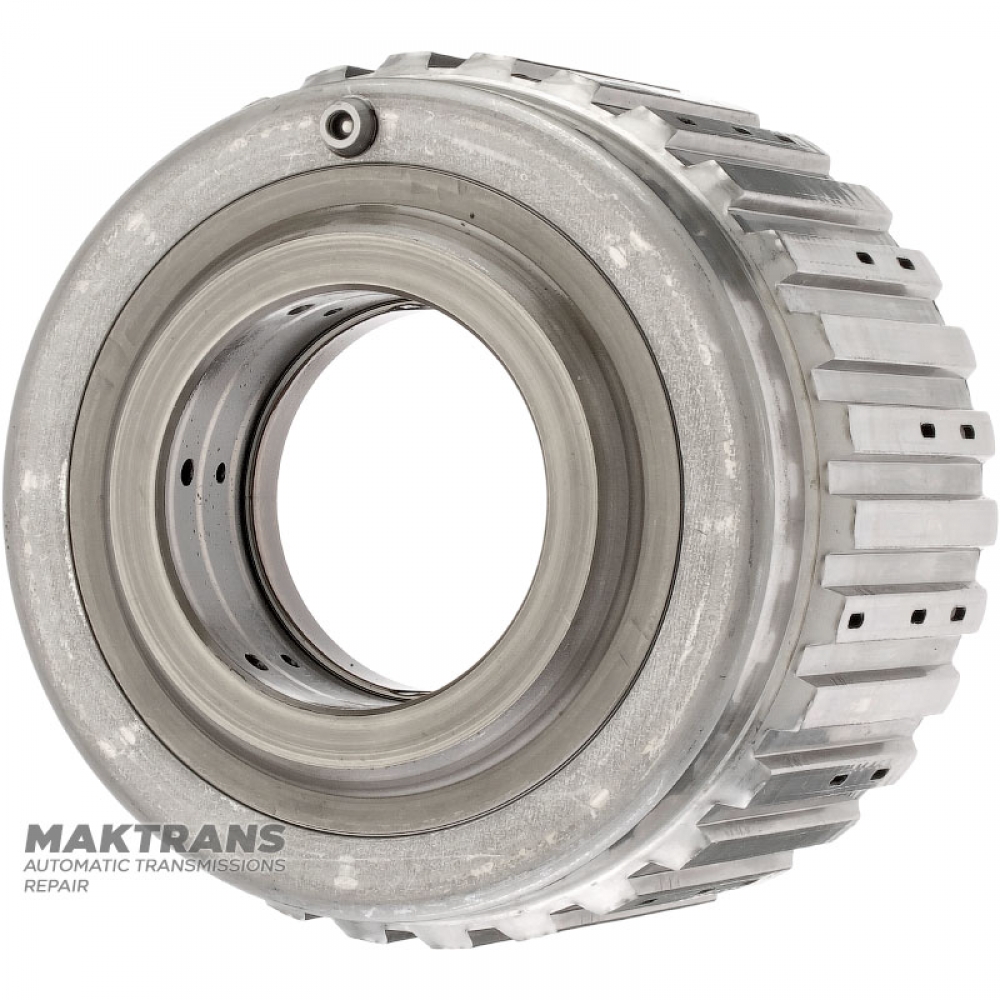

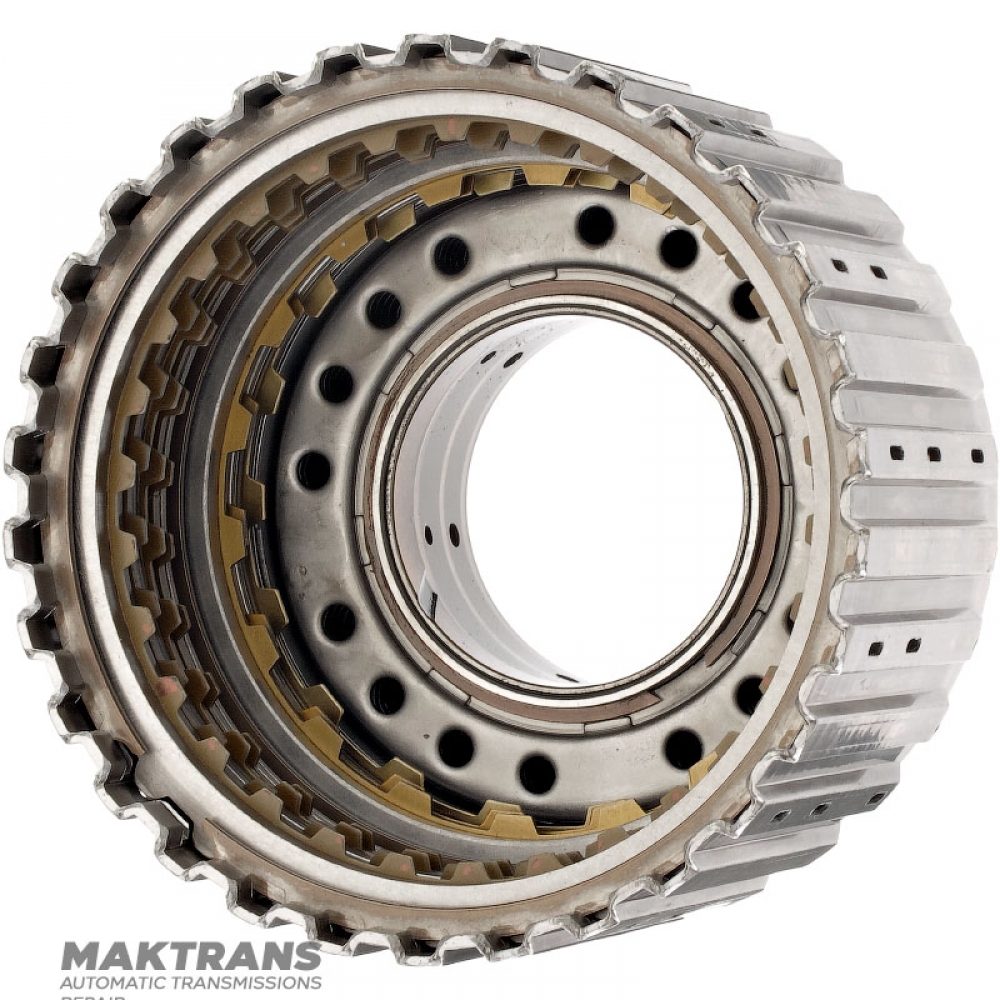

FORWARD / OVERRUN Clutch RE4F03A Drum — Complete Forward Clutch (4 friction discs) / Overrun Clutch (3 friction discs), 3157032X08

Drum:

• Overall height - 101 mm;
• Drum outer diameter - 137.95 mm;
• Inner diameter under the hub - 61.80 mm;
• Inner diameter of the sleeve - 58.90 mm;
• FORWARD Clutch - height from piston to retaining ring - 26 mm;
• OVERRUN Clutch - height from piston to retaining ring - 20 pcs.;

OVERRUN Clutch Steel and Friction Disc Set:

• The total thickness of the set is 17.20 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 105.05 mm;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.65 mm;
• Outer diameter - 116.95 mm;
• Number of teeth - 18 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 105 mm;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 4 pcs.;

Spring disc:

• Thickness - 1.40 mm;
• Inner diameter - 105.05 mm;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 1 pc.;

FORWARD Clutch steel and friction disc kit:

• The total thickness of the set is 23.35 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 114.85 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.85 mm;
• Outer diameter - 126.40 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 114.85 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 6 pcs.;

Spring disc:

• Thickness - 1.45 mm;
• Inner diameter - 114.50 mm;
• Outer diameter - 127.35 mm;
• Number of discs in the set - 1 pc.;
