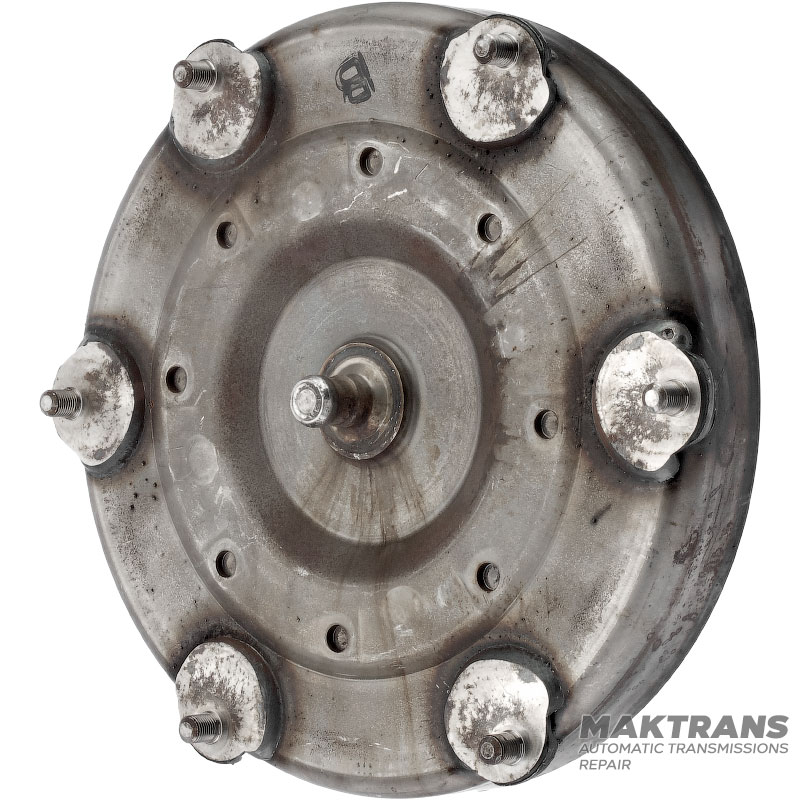

Front cover of torque converter DP0 DP2 DP8 (AL4) - complete with lock

• Total height – 60 mm;
• Outer diameter of the body -243.40 mm;
• The outer diameter of the hub on the central part is 53.20 mm;
• Number of mounting studs – 6 pcs.;
• The outer diameter of the mounting stud is 8.90 mm;
• Height of the pin – 11 mm;
• Pilot height – 30 mm;
• Pilot outer diameter – 15.90 mm;
• The radius from the center of the pilot to the center of the mounting hole is 118 mm;
• The distance between the centers of the mounting holes is 118 mm;

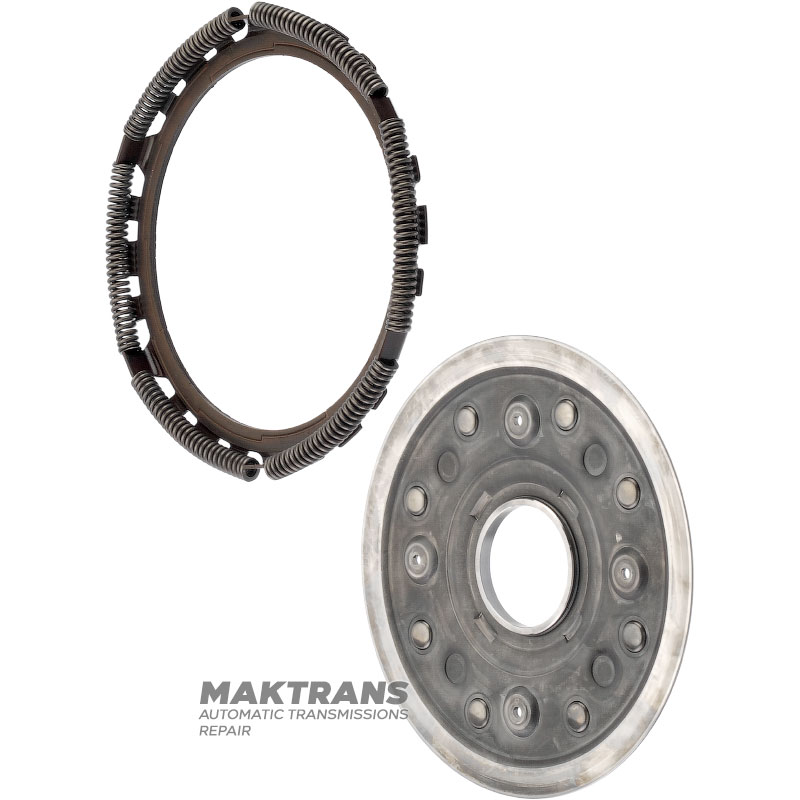

Locking disc:

• Inner diameter – 180.25 mm;

Locking piston:

• Outer diameter – 205 mm;
• Inner diameter – 54.15 mm;
