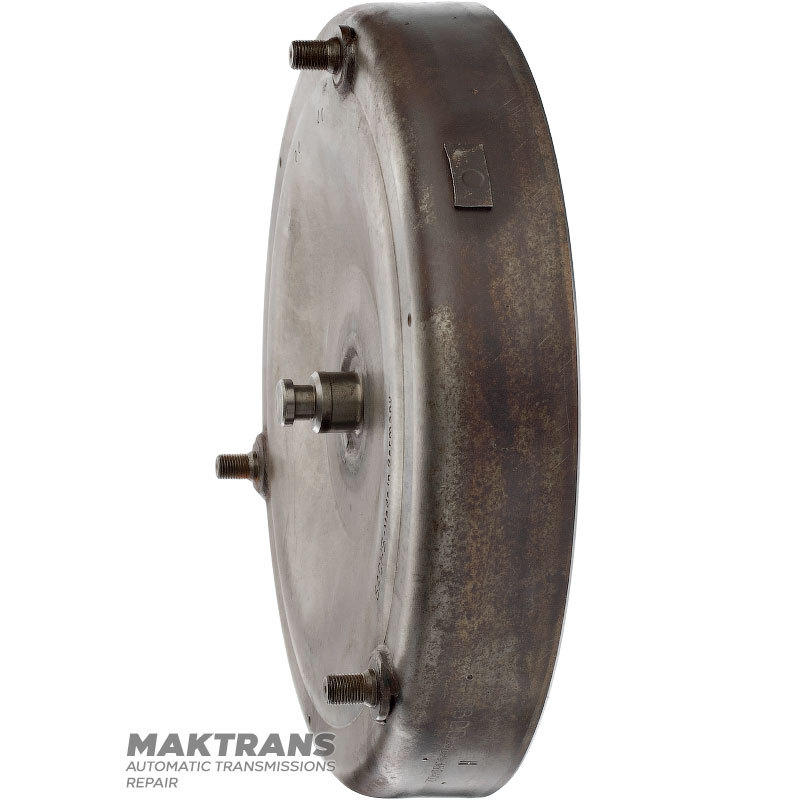

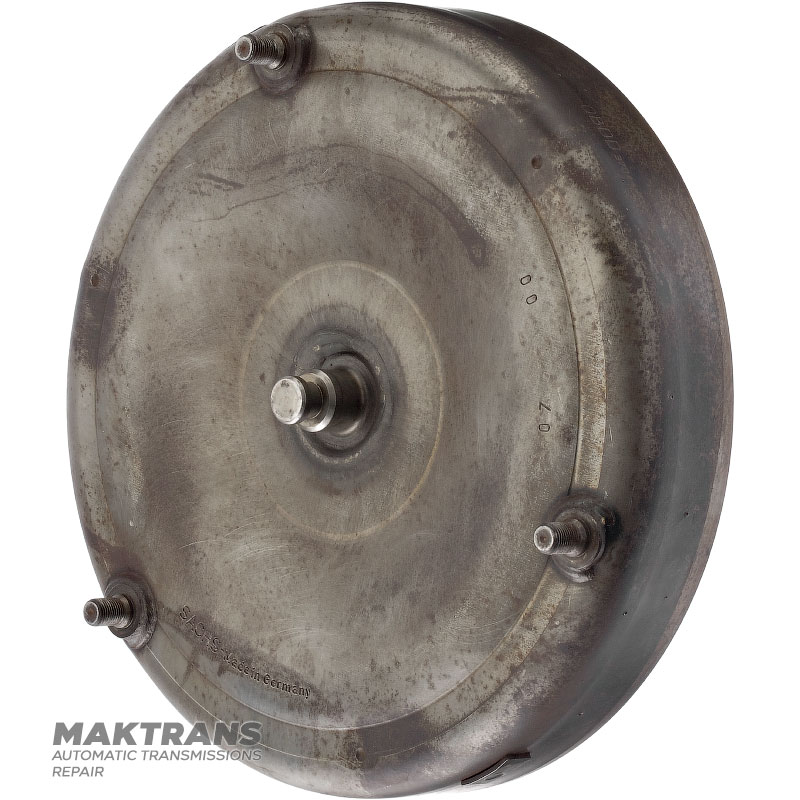

Front cover of torque converter VAG 01M, 01N, 01P (QADD, QBDD, QCDD, QCDV, QDDJ) — 01M09601P, pilot outer Ø 15.95 mm (20.95 mm), with bearing, 3 mounting studs (outer Ø 9.95 mm)

• Overall height - 62 mm;
• Outer case diameter - 267.85 mm;
• The outer diameter of the needle bearing is 22.75 mm;
• Pilot height - 25 mm;
• Pilot outer diameter - 15.95mm / 20.95mm;
• Number of mounting studs - 3 pcs.;
• The outer diameter of the mounting studs is 9.95 mm;
• The radius from the center of the pilot to the center of the mounting stud is 204 mm;
• The distance between the centers of the mounting studs is 118 mm;
