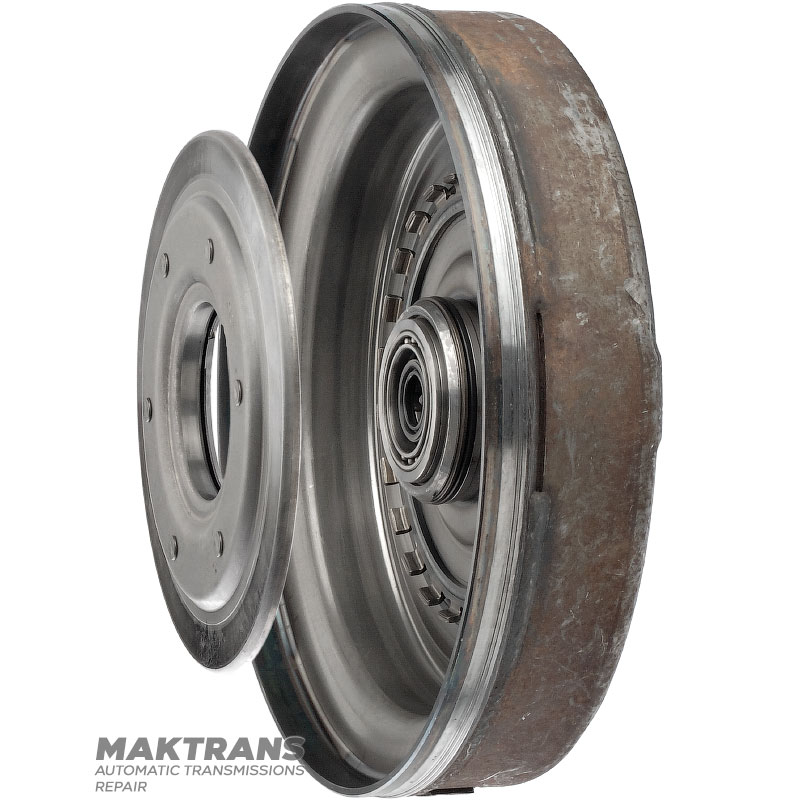

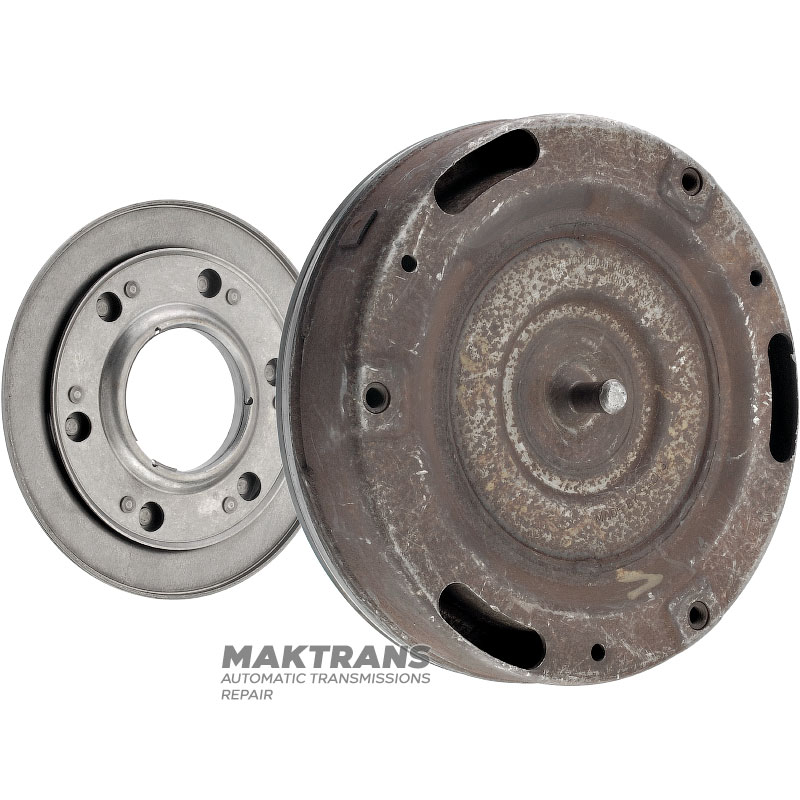

Front cover of torque converter ZF 6HP19, ZF 6HP21 — 000 063 (pilot diameter 16 mm)

• Overall height - 75 mm;
• Lid height - 60 mm;
• Lid outer diameter - 265.90 mm;
• Pilot height - 28 mm;
• Pilot outer diameter - 16 mm;
• The inner diameter of the mounting hole is 8.75 mm;
• The radius from the center of the pilot to the center of the mounting hole is 117 mm;
• The distance between the centers of the mounting holes is 203 mm;

Tags: 4168.025.497, 09L.323.571M, 4168.025.575, 4168025497, 09L323571M, 4168025575
