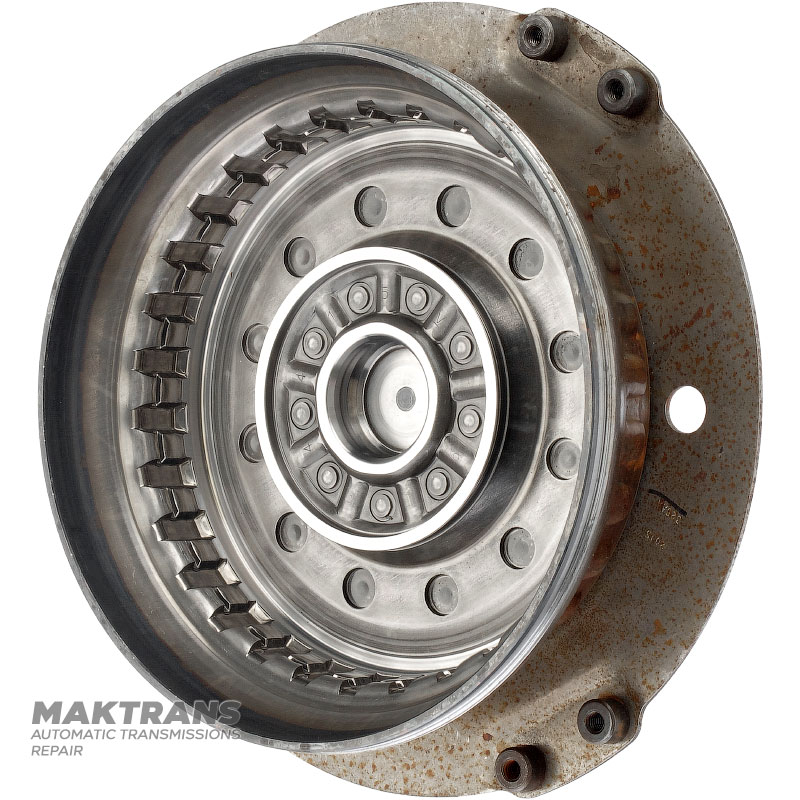

Front cover of torque converter ZF 8HP45, 8HP50 / DODGE CHRYSLER 845RE, 850RE — 000 337 (P52109336AA)

• Overall height - 89 mm;
• Outer body diameter - 250 mm;
• Pilot height - 31 mm;
• Pilot outer diameter - 34 mm;

Mounting plate:

• Outer diameter - 290.30 mm;
• Number of mounting holes - 6 pcs.;
• The inner diameter of the mounting hole is 6.85 mm;
• The radius from the center of the pilot to the center of the mounting hole is 140 mm;
• Distance between centers of mounting holes - 220 mm / 40 mm;
