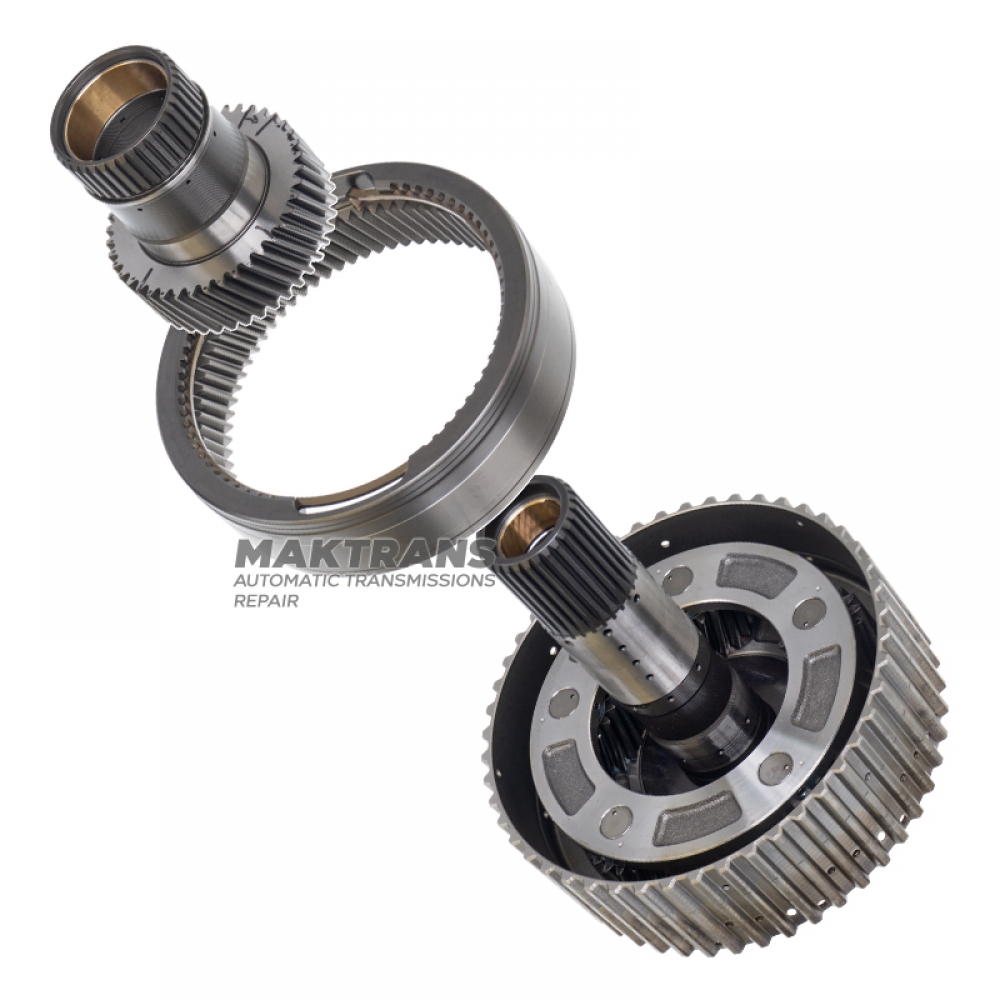

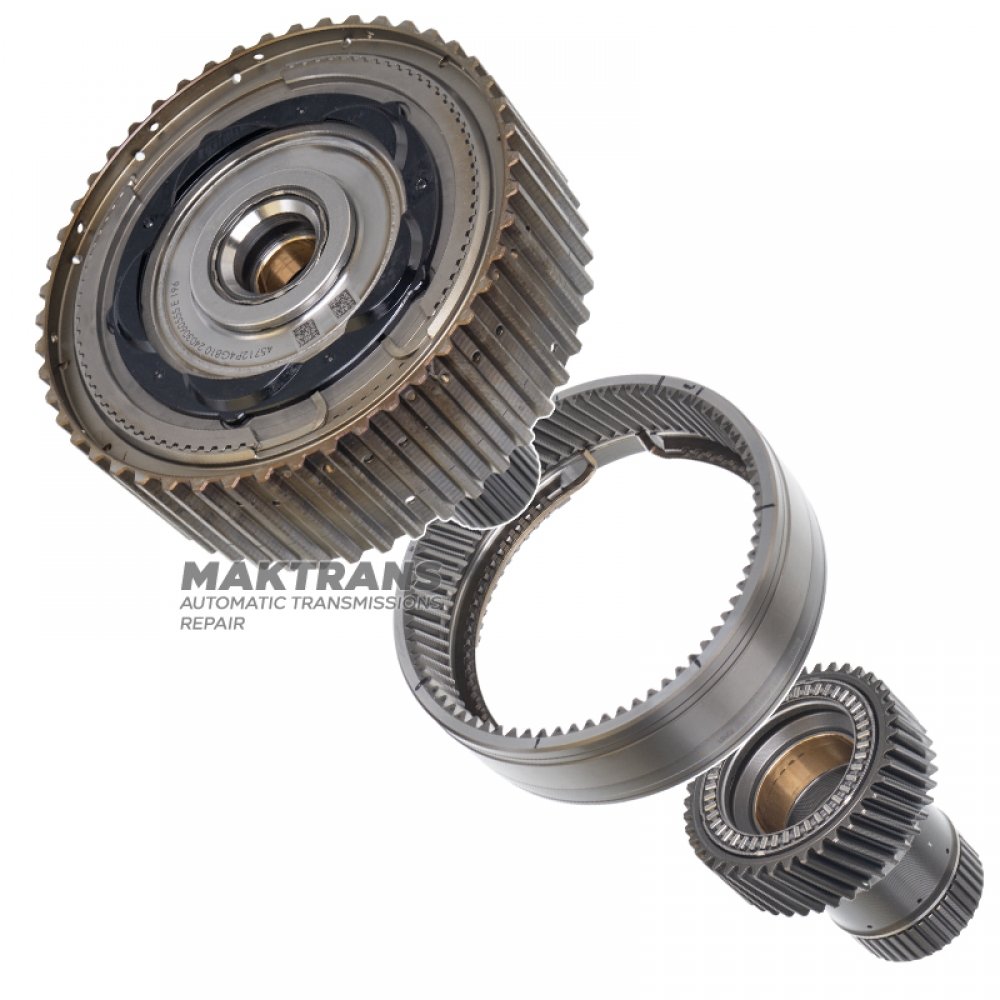

Front planetary gear A8F30 – 45712P4G810, 5 satellites (16 teeth), sun gear (42 teeth, outer Ø 66.45 mm, height 71 mm), ring gear (73 teeth, outer Ø 129.25 mm)

Planetary gear:

• Overall height - 137 mm;
• The outer diameter of the planetary gear is 139 mm;
• Number of splines on the shaft - 30 pcs.;
• The outer diameter of the splined part is 31.90 mm;
• Inner diameter of the sleeve - 20.90 mm;
• Number of satellites - 5 pcs.;
• Number of teeth on the satellites - 16 pcs.;

Ring gear, 2404234G810:

• Overall height - 38.30 mm;
• Outer diameter - 129.30 mm;
• Number of teeth - 73 pcs.;

Sun gear:

• Overall height (with bearing) - 72 mm;
• Number of splines on the shaft - 40 pcs.;
• The outer diameter of the splined part is 41.75 mm;
• Outer diameter of the working part - 43 mm;
• Inner diameter of the sleeve - 32.90 mm;
• Number of teeth on the gear - 42 pcs.;
• Gear outer diameter - 66.50 mm;
• Gear width: 21.35 mm;
