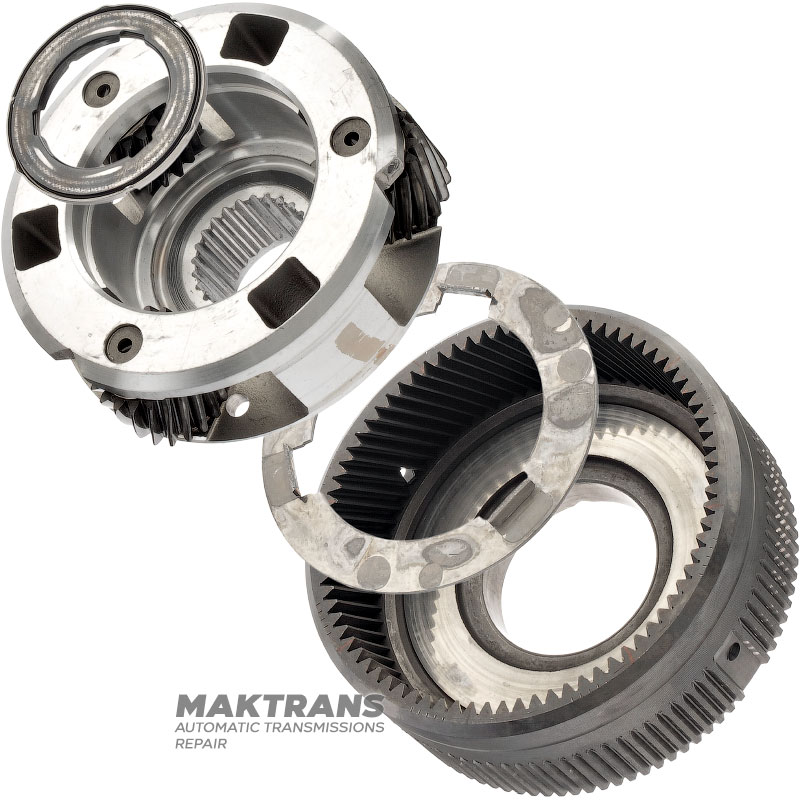

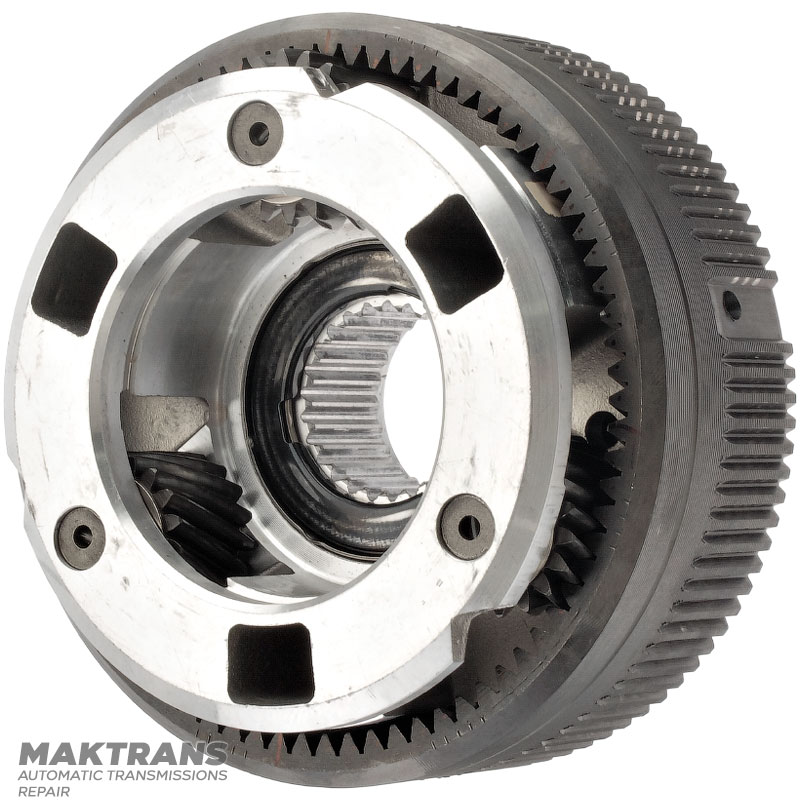

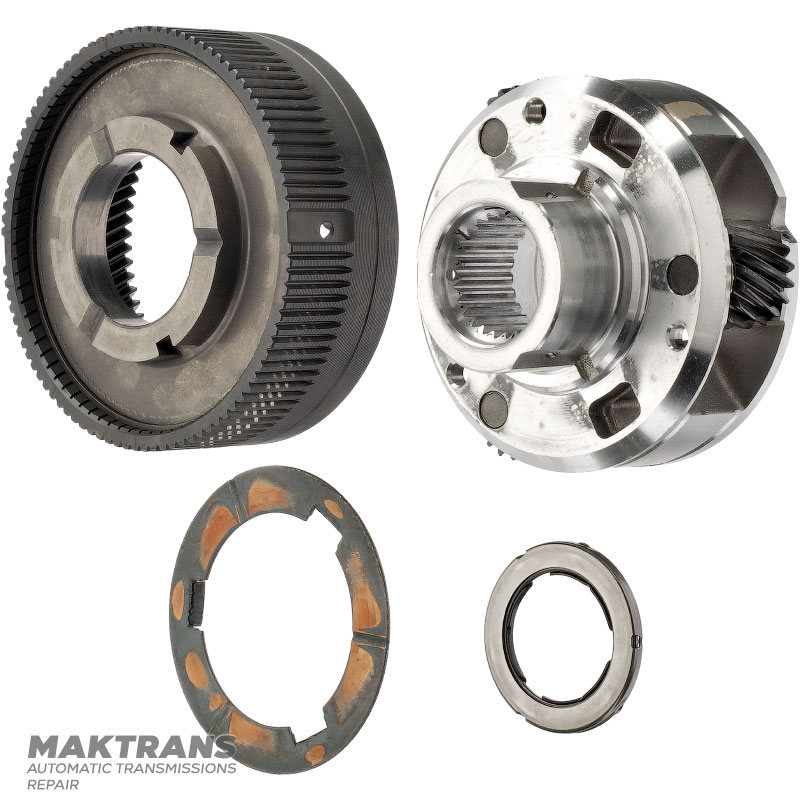

Front planetary gear FORD E4OD, 4R100 — 3 satellites (18 teeth on the satellite), 78 teeth on the ring gear, (with a sliding washer between the planetary gear and the ring gear)

Planetary gear:

• Overall height - 67 mm;
• Number of splines on the inner part - 25 pcs.;
• Outer body diameter - 107.40 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on the satellite - 18 pcs.;
• Outer diameter of the neck - 51.65 mm;

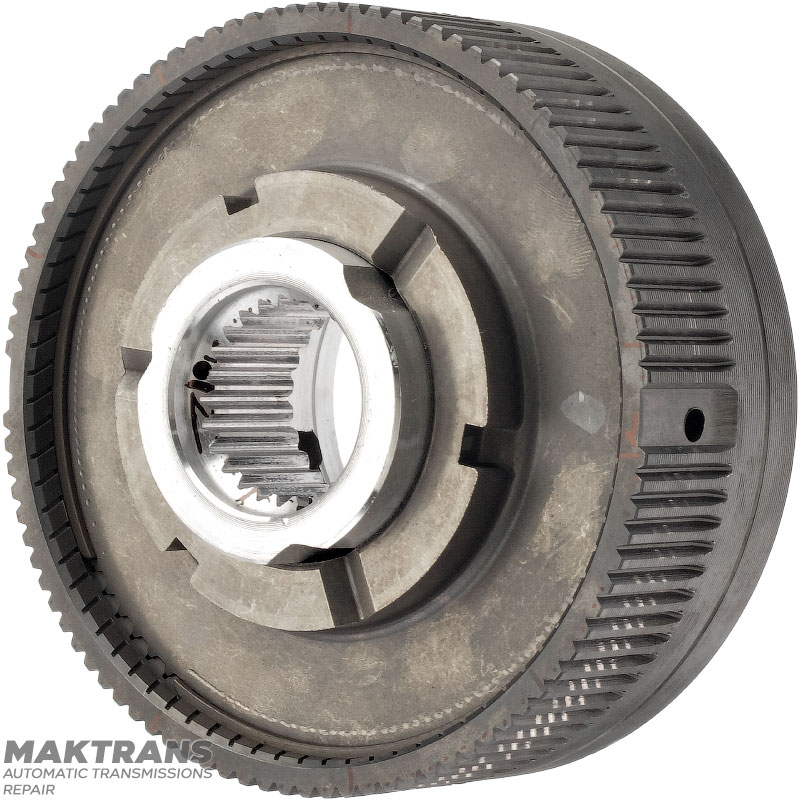

Ring gear:

• Overall height - 51 mm;
• Outer diameter - 127.75 mm;
• Inner diameter - 51.85 mm;
• Number of teeth on the gear - 78 pcs.;
• Number of teeth on the outer part of the gear - 92 pcs.;
• Length of external teeth (FORWARD Cluthc hub teeth) - 26 mm;
