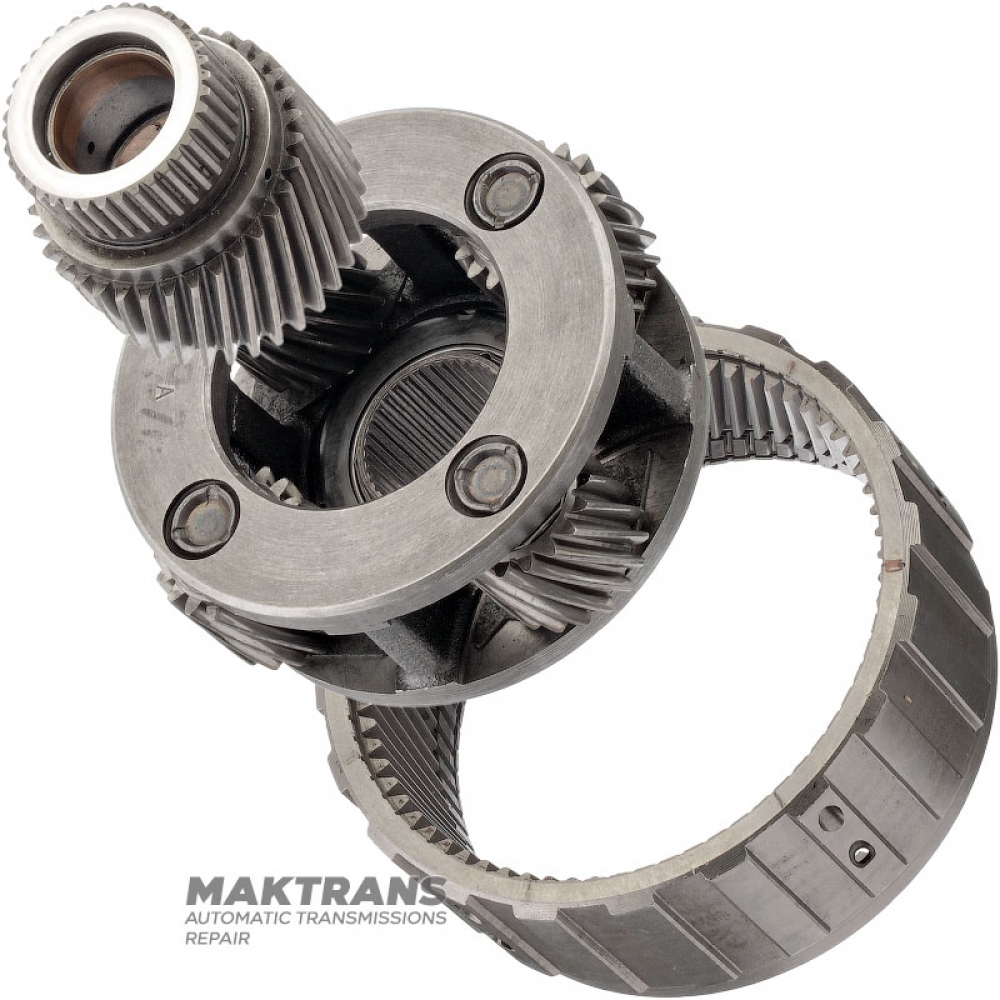

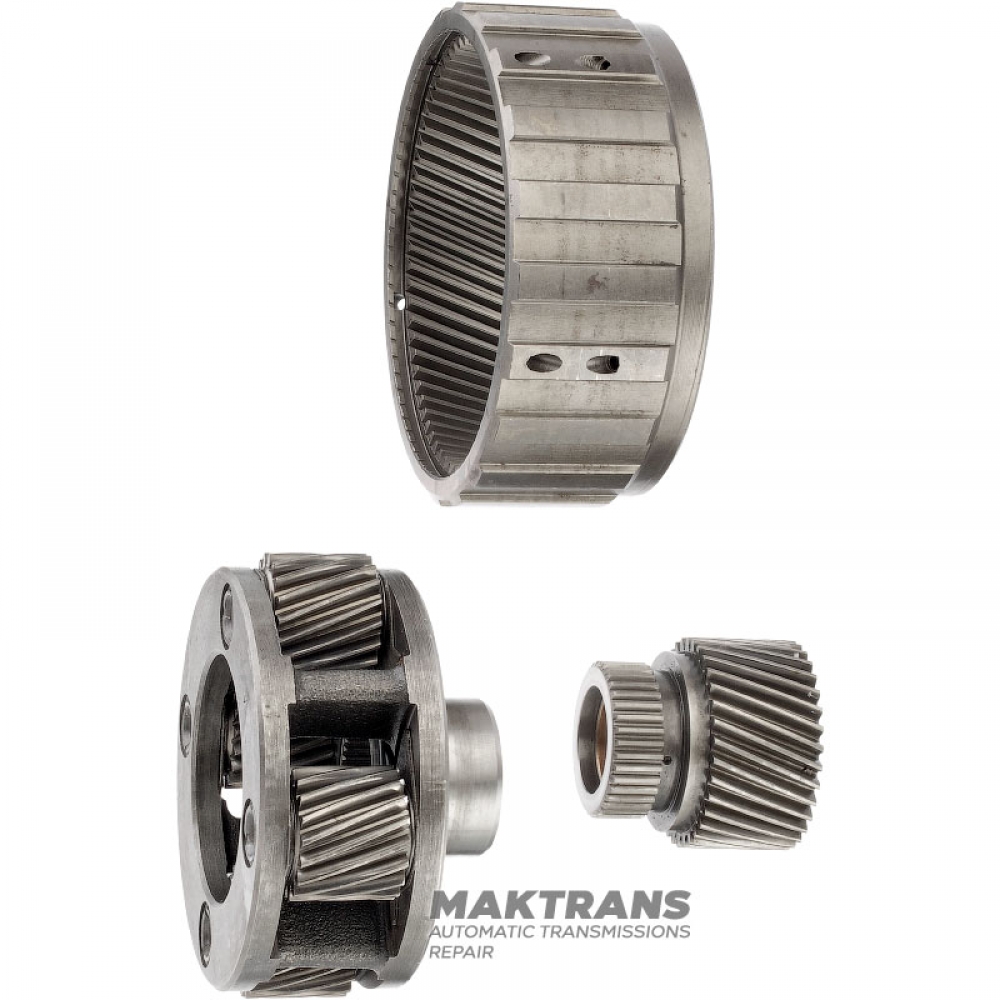

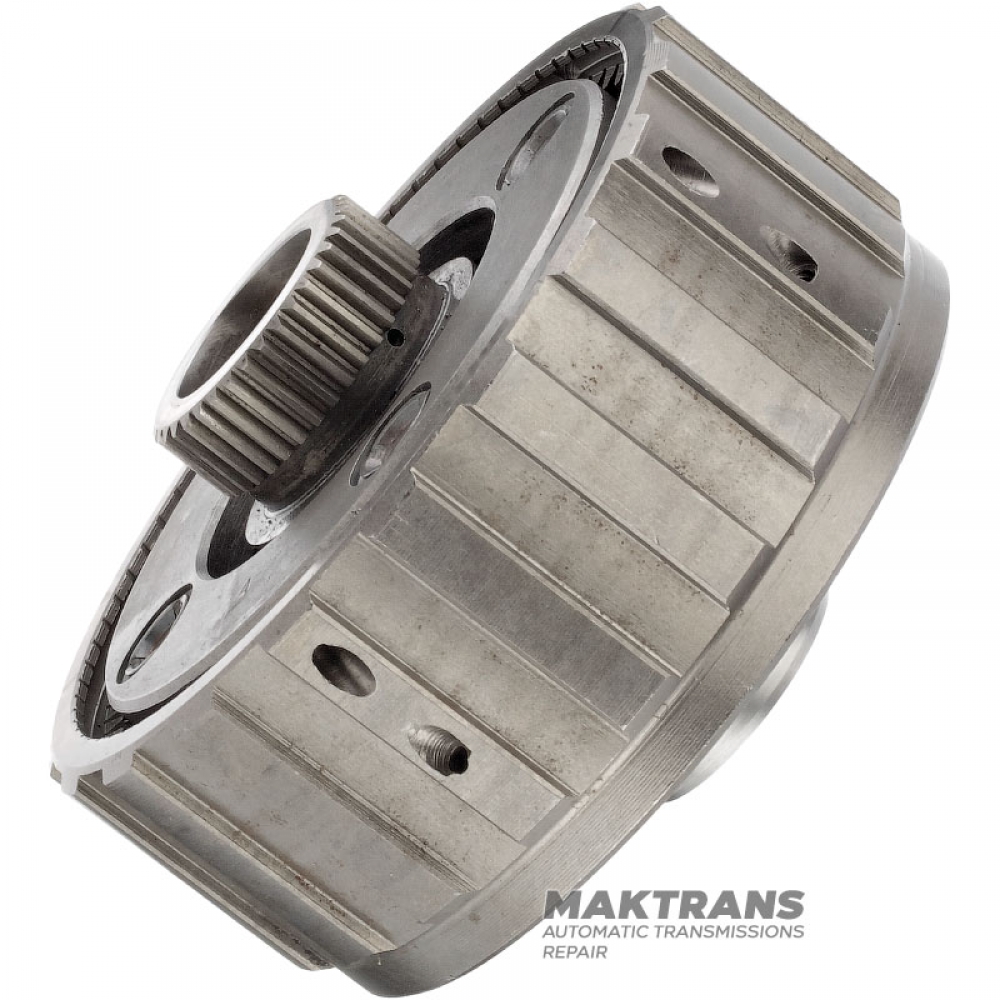

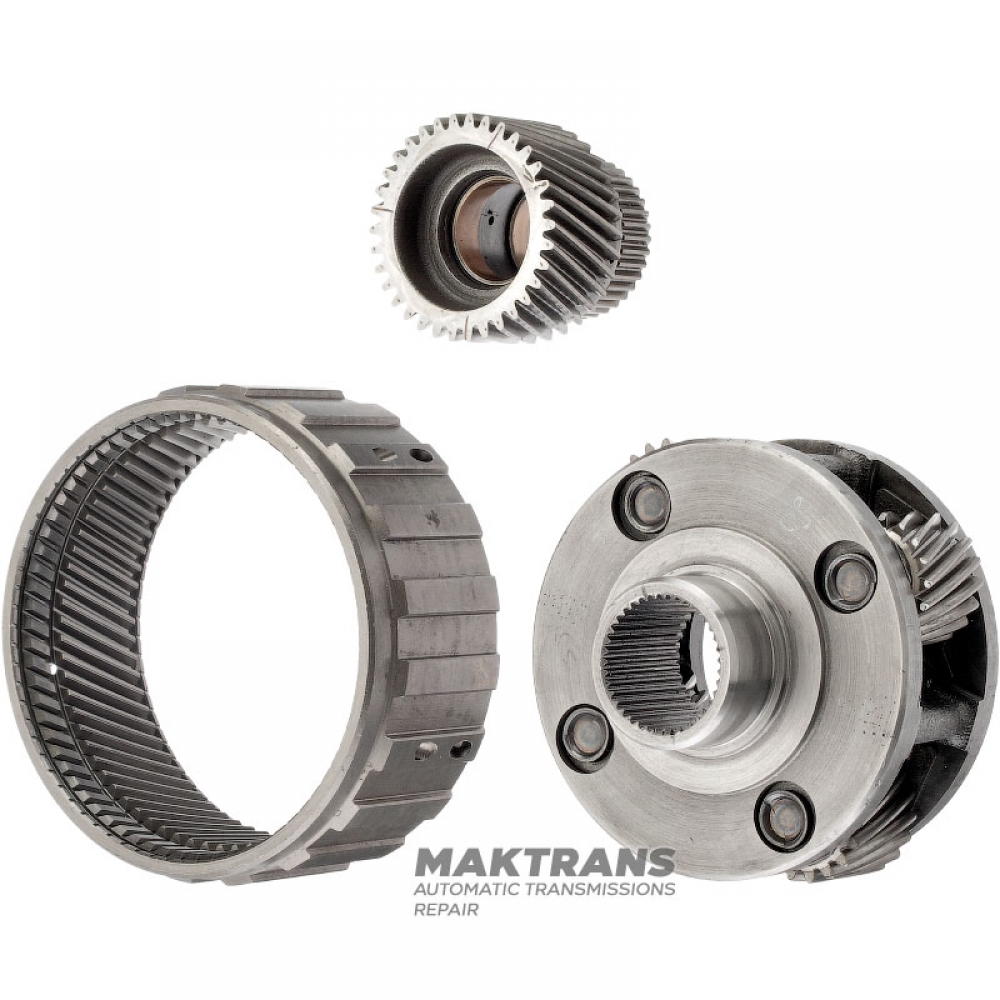

Front planetary gear GM 4L60E — 24219410, 24241241, 24241481 (4 satellites, 18 teeth (ext.Ø 30.25 mm))

Planetary gear:

• Overall height - 65 mm;
• Outer case diameter - 98.90 mm;
• Number of splines - 39 pcs.;
• Outer diameter of the neck - 38 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 18 pcs.;
• The outer diameter of the satellites is 30.25 mm;

Ring gear:

• Height - 50.35 mm;
• Outer diameter - 123.80 mm;
• Number of teeth - 70 pcs.;
• Number of teeth on the outer side - 20 pcs.;

Sun gear:

• Height - 51.45 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 39 mm;
• Inner diameter of bushings - 23.50 mm;
• Number of teeth on the gear - 34 pcs.;
• Gear outer diameter - 52.65 mm;
