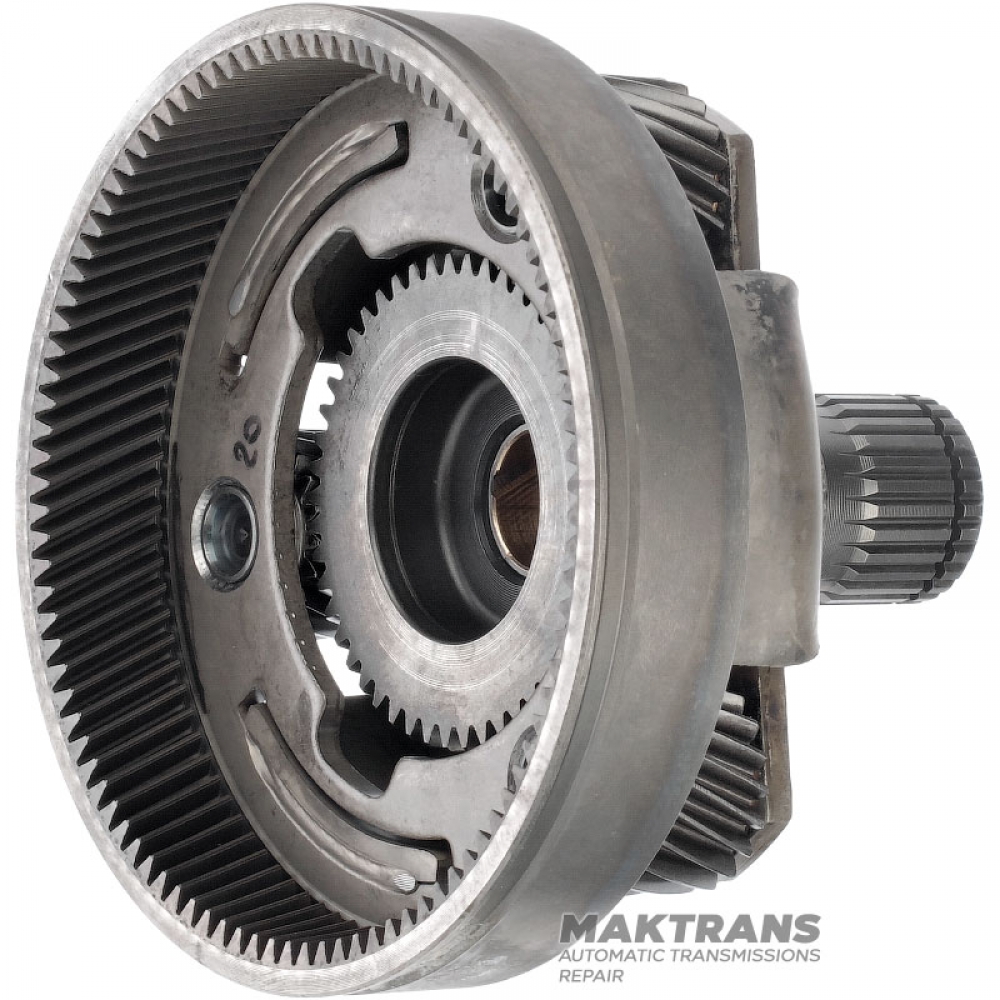

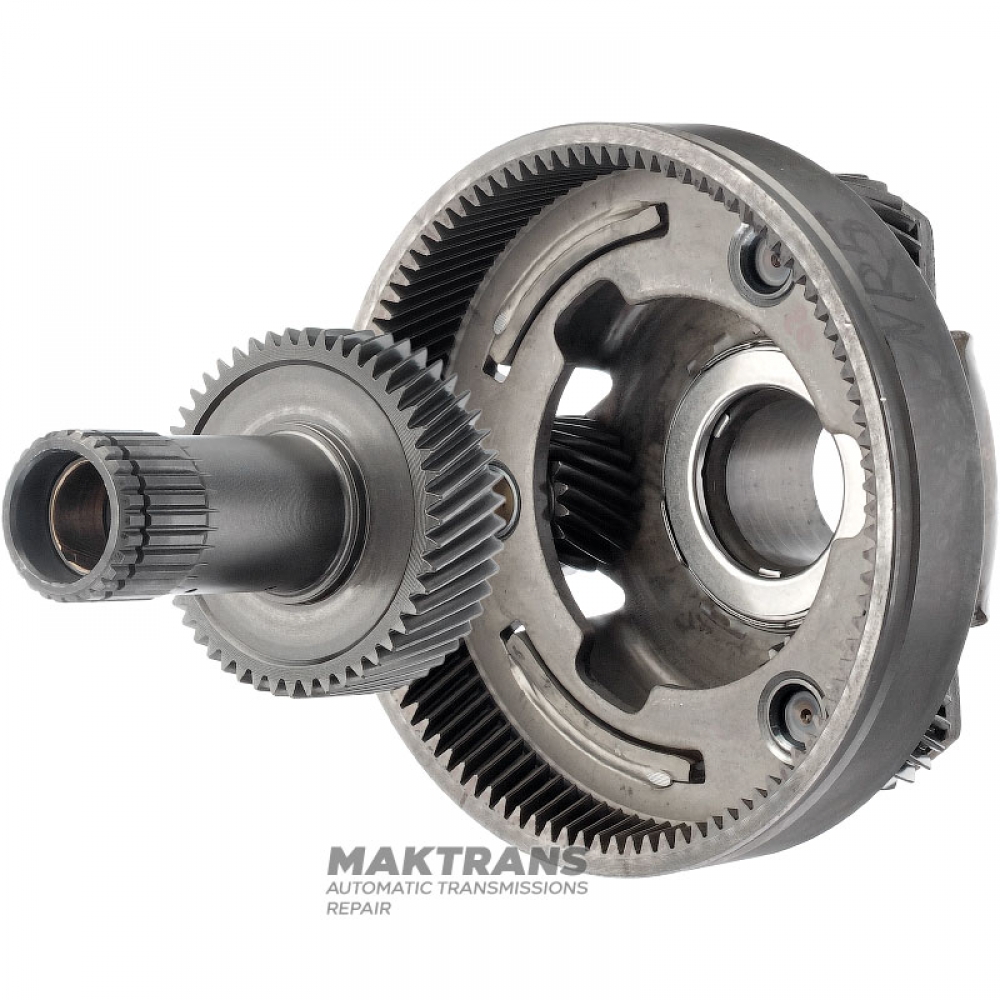

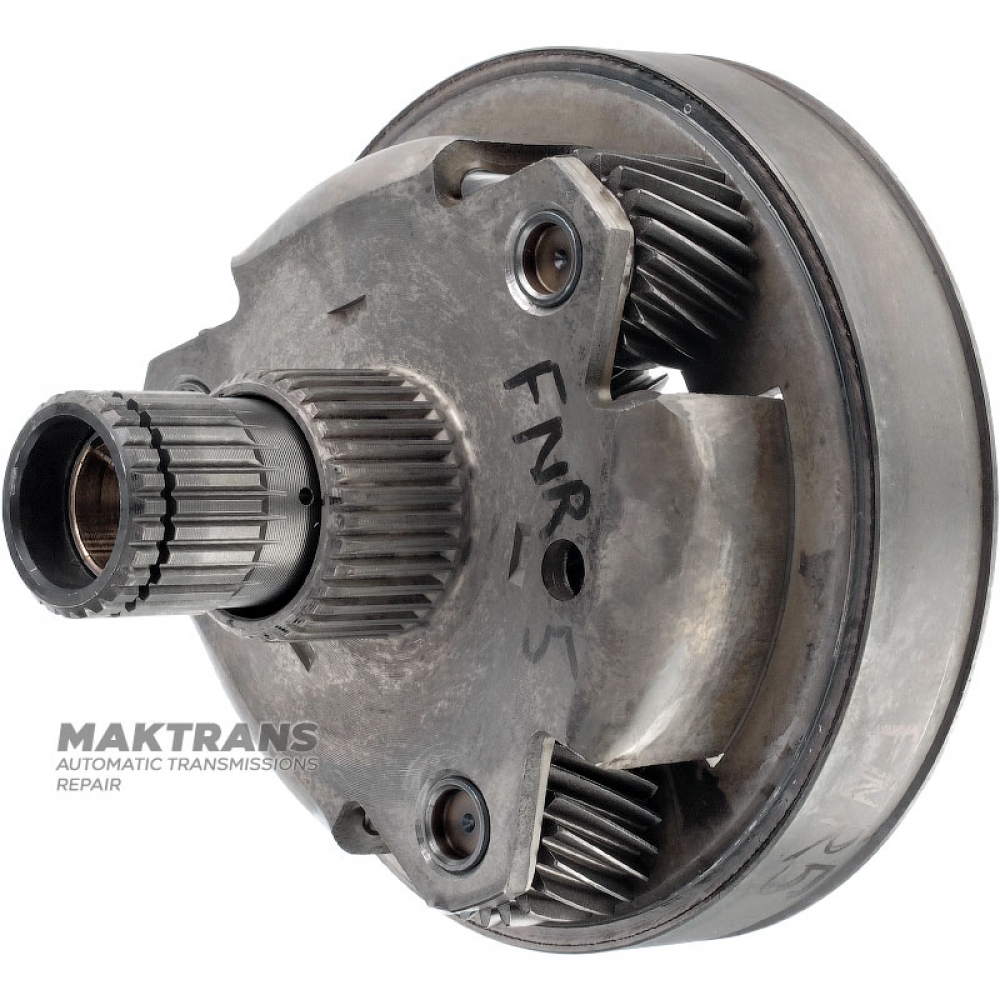

Front planetary gear MAZDA FNR5 - 3 pinions (20 teeth), sun gear 49 teeth (outer Ø 64.70 mm), ring gear (rear planetary gear) 98 teeth (outer Ø 124.85 mm)

Planetary gear:

• Total height - 76 mm;
• Number of splines - 34 pcs.;
• The outer diameter of the spline part is 35.60 mm;
• Number of satellites - 3 pcs.;
• The number of teeth on the satellite is 20 pcs.;
• The number of teeth on the ring gear of the rear planetary gear is 98 pcs.;
• The outer diameter of the rear planetary ring gear is 124.85 mm;

Sun gear:

• Total height - 81 mm;
• Number of splines - 27 pcs.;
• The outer diameter of the spline part is 28.70 mm;
• The inner diameter of the sleeve is 17.90 mm;
• The number of teeth on the sun gear is 49 pcs.;
• The outer diameter of the sun gear is 64.70 mm;
