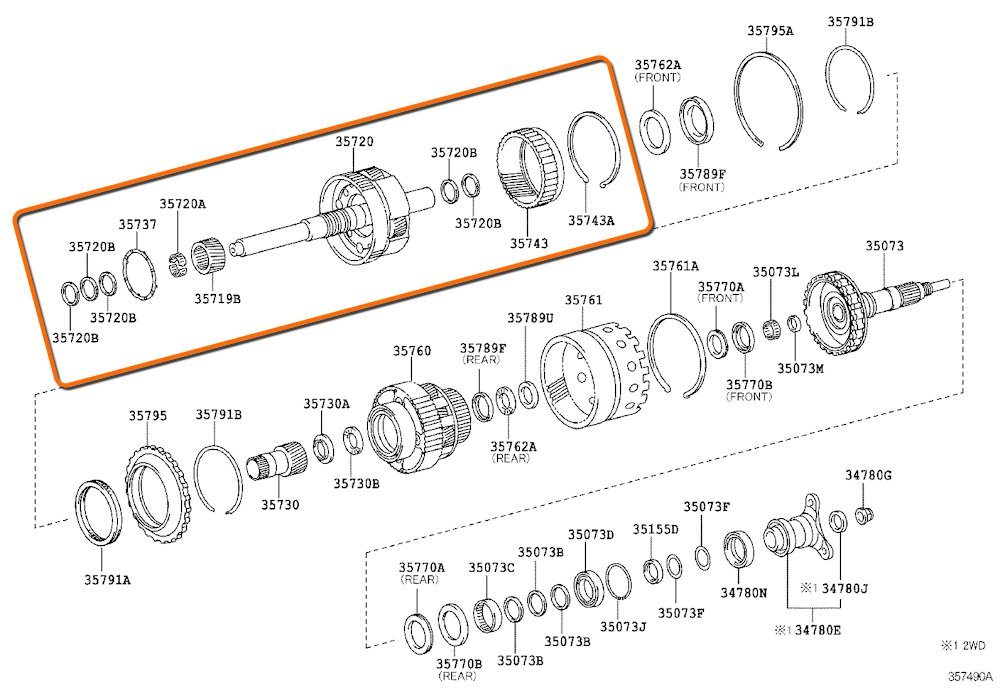

Front planetary gear TOYOTA / LEXUS AA80E, AA80F - total shaft length 342 mm, 4 satellites (19 teeth) / 4 satellites (16 teeth), 3574350030, 3572050030, 3571950040

• Overall length - 342 mm;

Front side:

• Spout diameter - 15 mm;
• Number of splines on the front side - 24 pcs.;
• The outer diameter of the splined part is 25.45 mm;
• Number of Teflon rings - 3 pcs.;
• Outer diameter over Teflon rings - 33.40 mm;
• Hub outer diameter - 130.80 mm;

Number of satellites:

• 4 satellites (ring gear, external) - 19 teeth;
• 4 satellites (sun gear, internal) - 16 teeth;

Back side:

• Hub height - 74 mm;
• Number of Teflon rings - 2 pcs.;
• Outer diameter over Teflon rings - 33.40 mm;
• Working part diameter - 33.20 mm;
• Number of splines on the inner side - 24 pcs.;

Ring gear:

• Height - 45.50 mm;
• Number of teeth - 82 pcs.;
• The outer diameter of the gear is 153.80 mm;
• Number of teeth on the outer side - 36 pcs.;

Sun gear:

• Height - 32 mm;
• Number of teeth - 38 pcs.;
• Gear outer diameter: 63.10 mm;
• Number of splines on the inner side - 43 pcs.;
