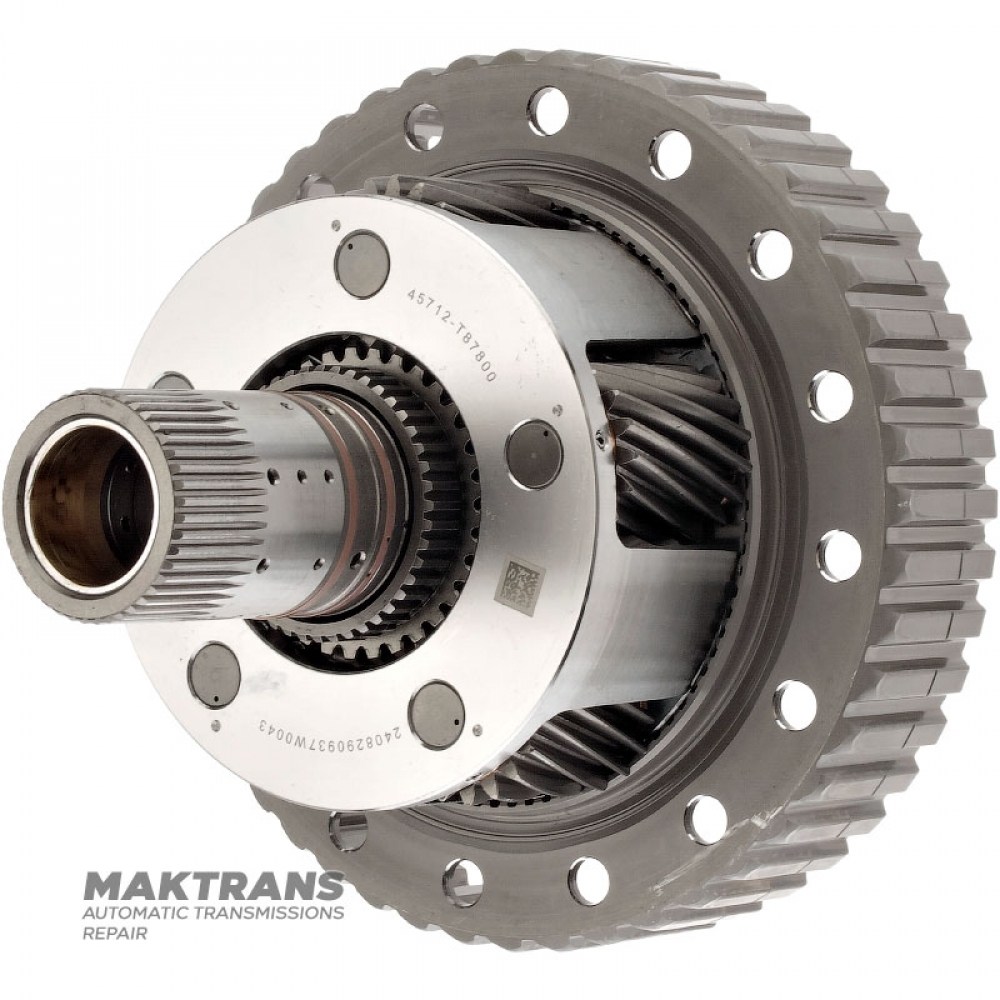

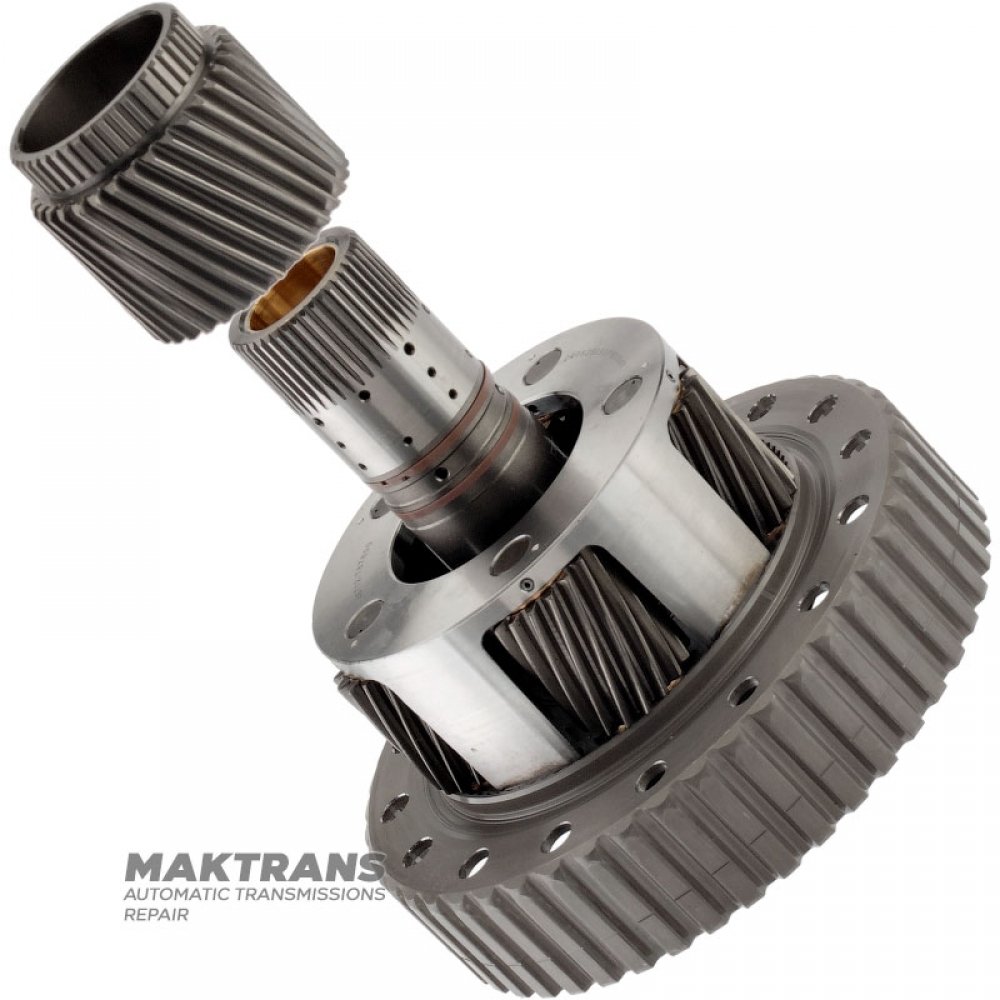

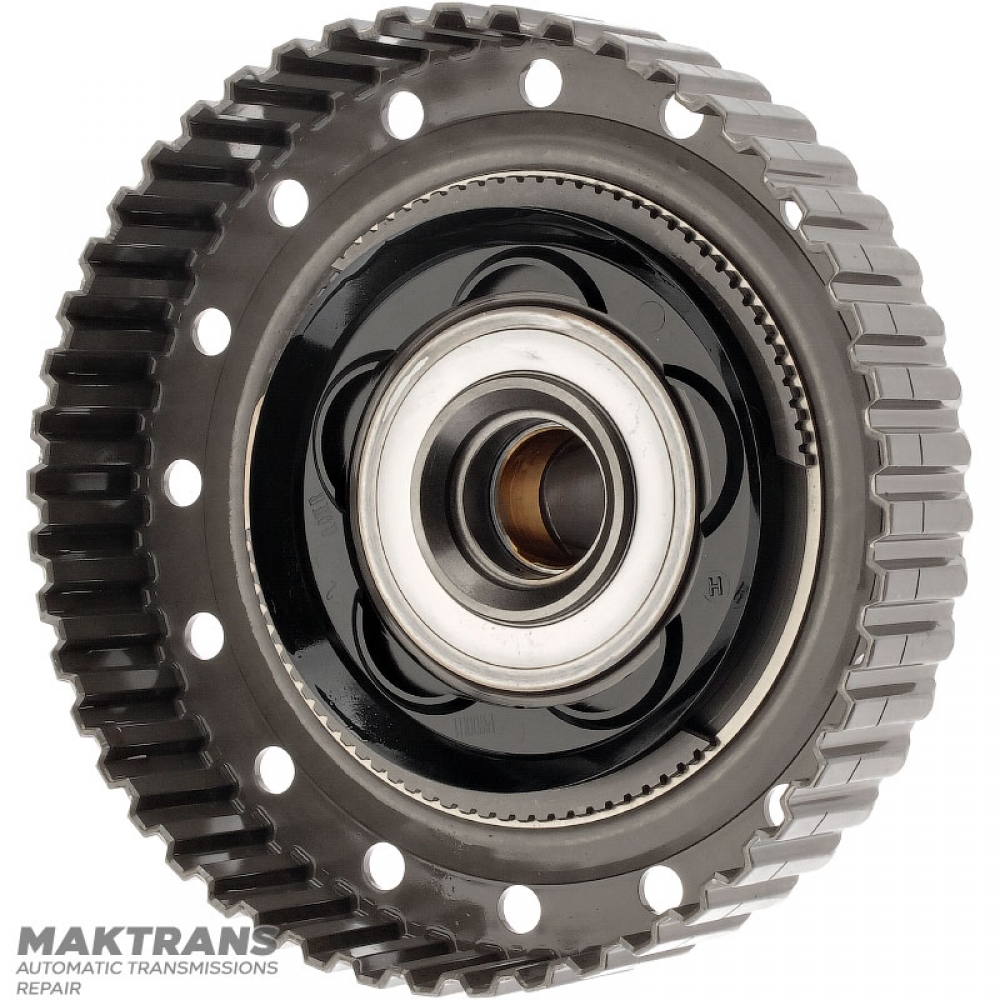

Front planetary gear VAG 09H, AQ451 - 5 satellites (17 teeth), 45712-T87800

Planetary gear:

• Overall height - 147 mm;
• Number of splines - 44 pcs.;
• The outer diameter of the splined part is 36.75 mm;
• Inner diameter of the sleeve - 24.90 mm;
• Outer diameter of the satellite housing - 102.40 pcs.;
• Number of satellites - 5 pcs.;
• Number of teeth on the satellites - 17 pcs.;
• Low/Reverse hub height - 33.55 mm;
• Low/Reverse hub outer diameter - 157.40 mm;

Sun gear:

• Overall height - 50.55 mm;
• Number of splines - 44 pcs.;
• The outer diameter of the splined part is 45.70 mm;
• Number of teeth on the gear - 33 pcs.;
• Gear outer diameter - 54.65 mm;
