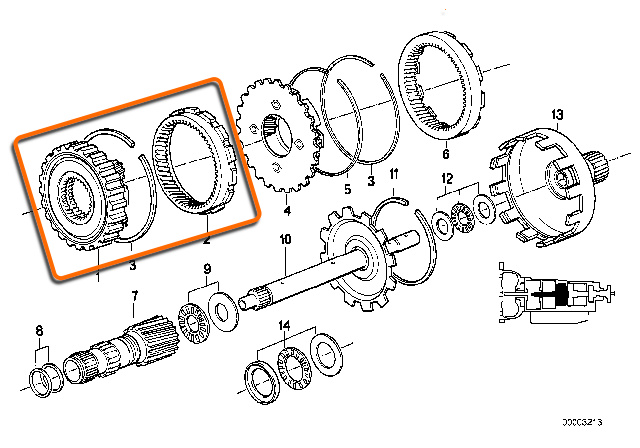

Front planetary gear ZF 4HP22 — 4 satellites (19 teeth, external Ø 28.35 mm), REVERSE Clutch hub — 58 teeth (external Ø 119.55 mm) 24241215495, 24221421743

Planetary gear:

• Overall height - 44 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 19 pcs.;
• The outer diameter of the satellites is 28.35 mm;
  Number of splines on the inner side of the overrunning clutch - 60 pcs.;

Reverse Clutch Hub:

• Number of teeth - 58 pcs.;
• Outer diameter - 119.55 mm;

Ring gear:

• Overall height - 21.20 mm;
• Number of teeth - 73 pcs.;
• Number of teeth on the outer crown - 14 pcs.;
• Outside diameter (along the outside crown) - 127.95 mm;
