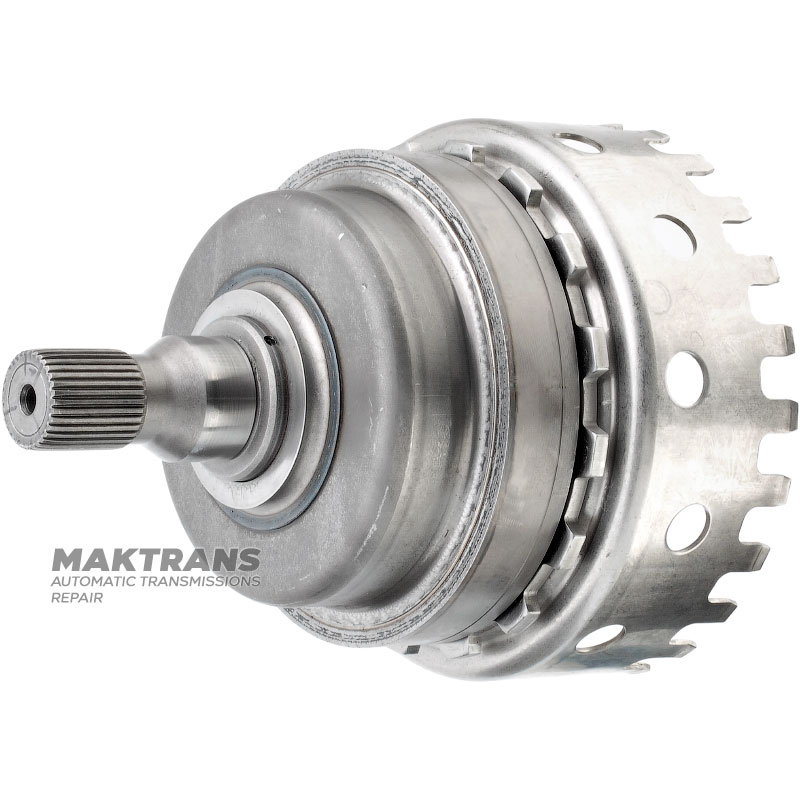

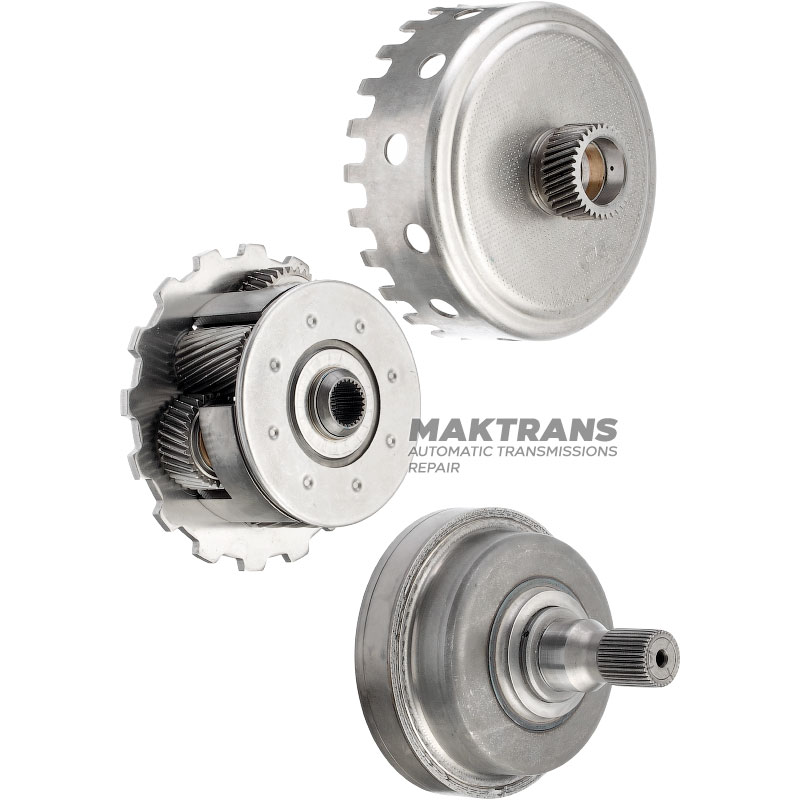

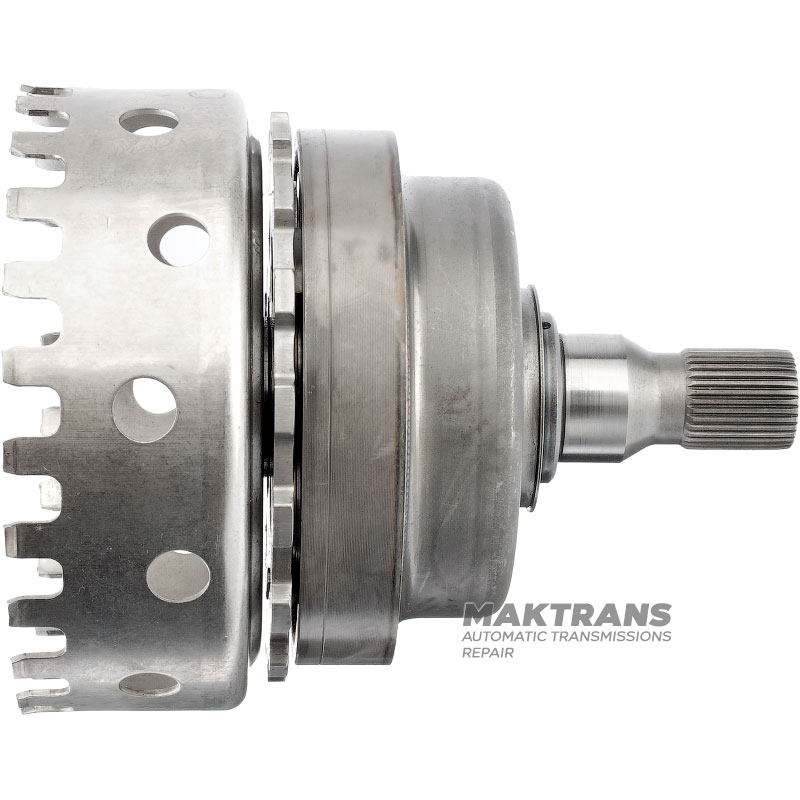

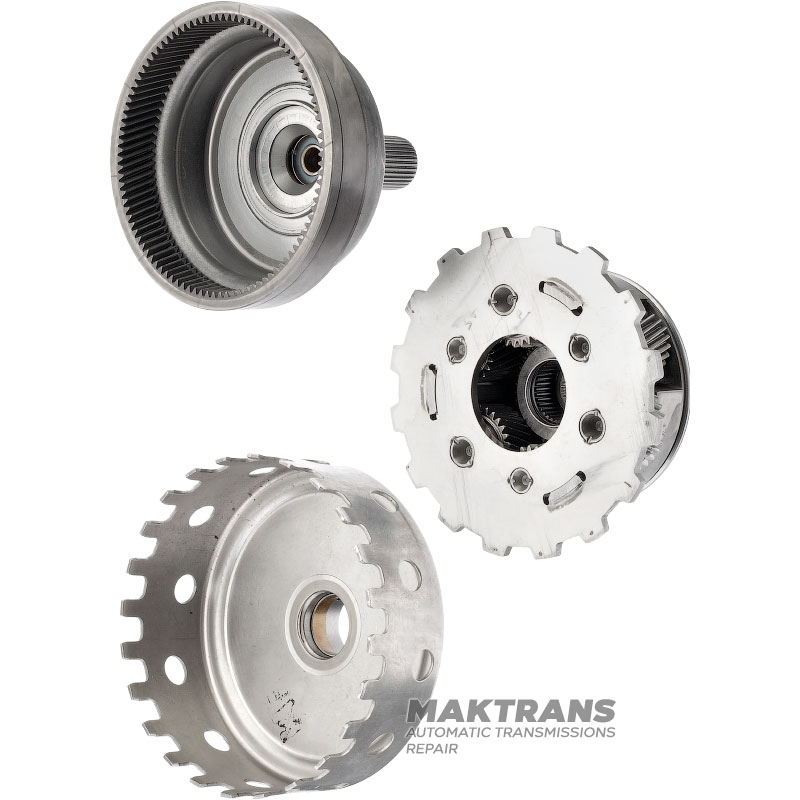

Front planetary gear ZF 5HP19 - steel sun gear shell

Planetary gear:

• Total height - 67 mm;
• The number of teeth on the ring gear is 16 pcs.;
• The outer diameter of the ring gear is 152.05 mm;
• The outer diameter of the satellite housing is 111.75 mm;
• Number of splines - 25 pcs.;

Rear sun gear (non-removable):

• Number of teeth - 38 pcs.;
• The number of splines on the inside is 37 pcs.;

Rear sun gear pinions:

• The number of teeth on the satellite is 22 pcs.;
• Number of satellites - 3 pcs.;

Ring gear satellites:

• Number of teeth - 3 pcs.;
• Number of teeth on the gear - 31 pcs.;

Front sun gear (shell):

• Total height - 93 mm;
• Shell outer diameter - 166.20 mm;
• Inner diameter of the sleeve - 30 mm;
• Shell height - 64 mm;
• Number of teeth - 34 pcs.;
• Gear outer diameter - 46.96 mm;

Ring gear:

• Total height - 133 mm;
• Number of splines on the shaft - 34 pcs.;
• The outer diameter of the spline part is 27.55 mm;
• The outer diameter of the working part is 34.85 mm;
• The outer diameter of the ring gear is 142.90 mm;
• Number of teeth on the gear - 98 pcs.;

​​​​​​​
