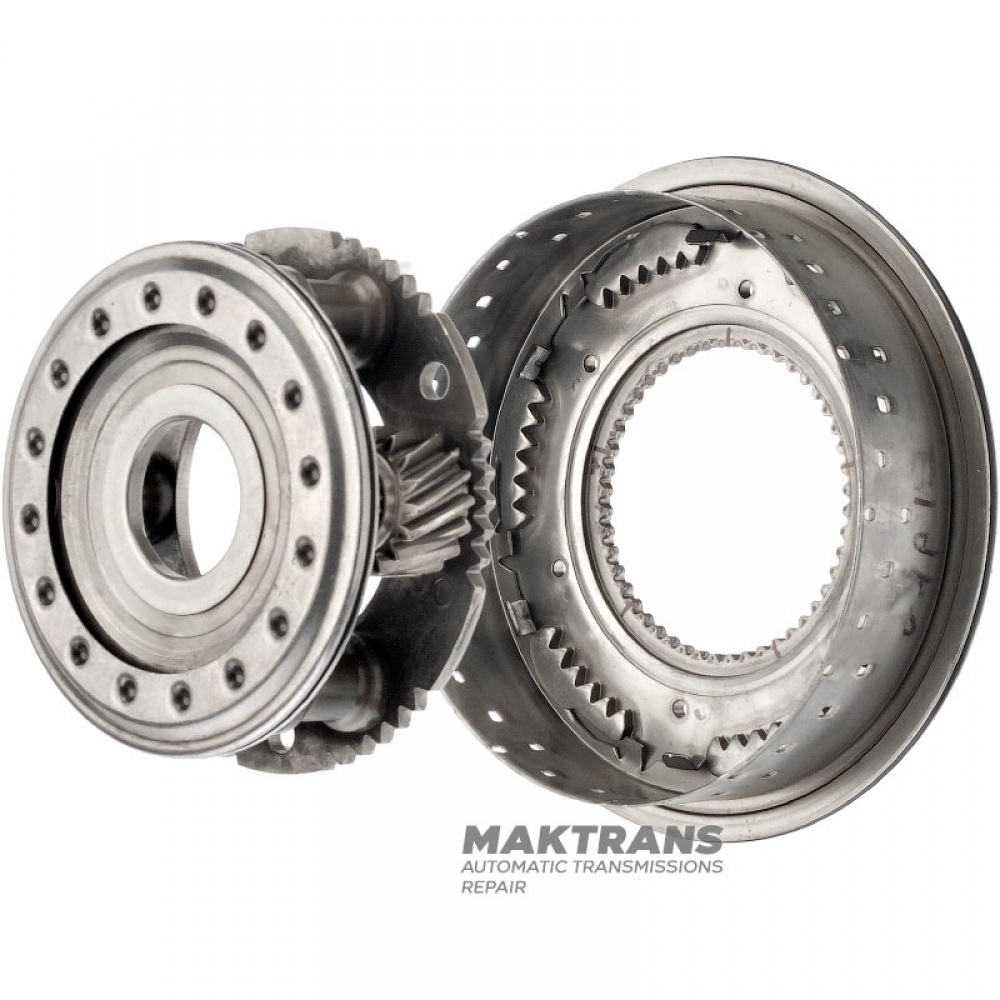

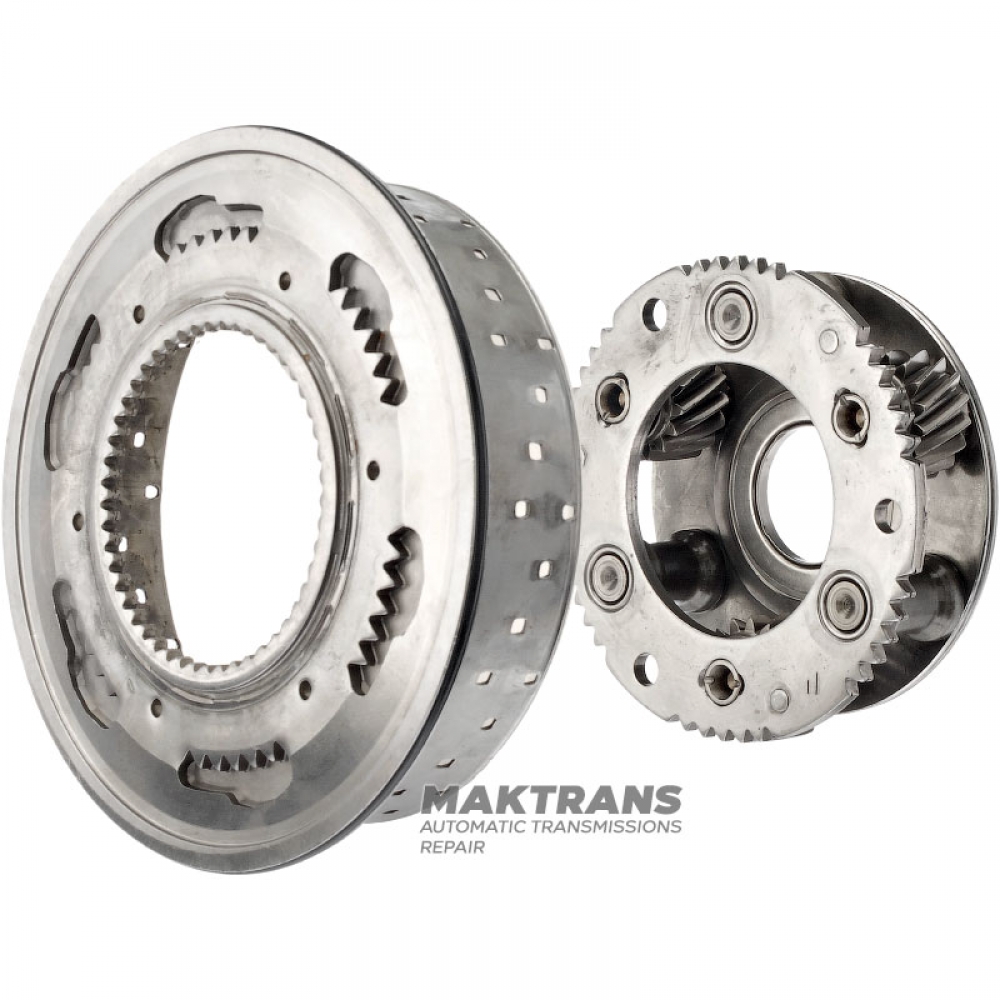

Front planetary gear ZF 6HP19 6HP19A 6HP21 - 3 satellites (16 teeth, outer Ø 31.15 mm)

Planetary gear:

• Total height - 40 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on the satellite - 16 pcs.;
• Inner diameter (sun gear side) - 66 mm;
• The inner diameter of the central hole is 33.40 mm;

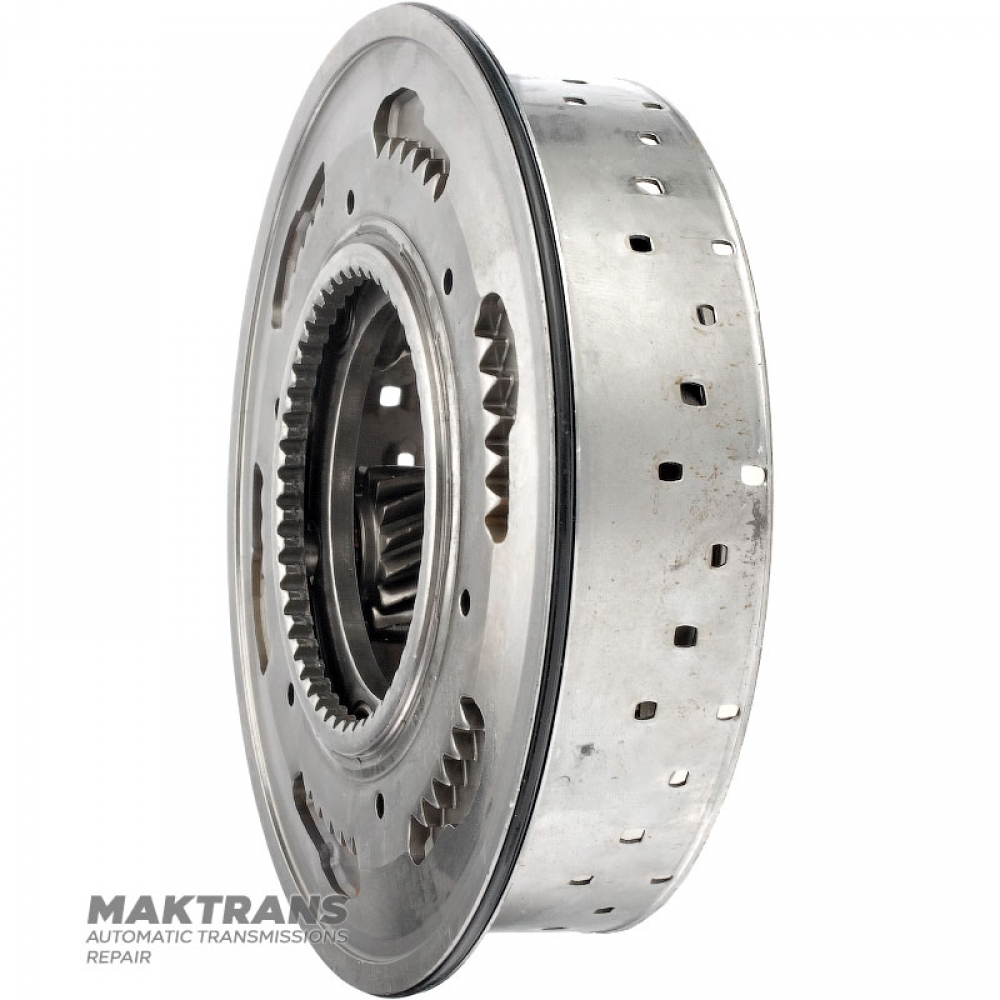

Hub:

• Height - 43 mm;
• Outer diameter - 141.40 mm;
• Outside diameter (by sealing ring) - 161.50 mm;
• Number of teeth on the inner side - 48 pcs.;
