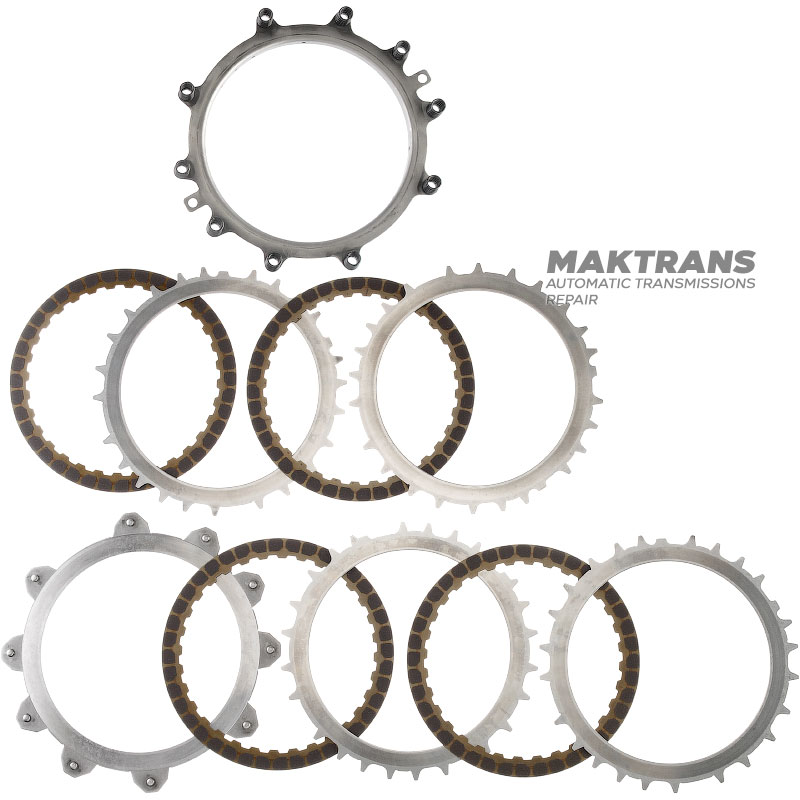

Steel and friction disc set 2-6 Brake FW6AEL 11-up — FZ01193V0A, FZ01193S4, FZ01192V2 (4 friction discs, total thickness of the set 15.50 mm)

• The total thickness of the set is 15.55 mm;

Support disk:

• Thickness - 4.22 mm;
• Inner diameter - 147.80 mm;
• Number of teeth - 10 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 1.65 mm;
• Inner diameter - 148.05 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 171.80 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 4 pcs.;

Return spring block:

• Overall height - 28 mm;
• Inner diameter of the case - 150.50 mm;

• Mazda CX-5 (2.0L, 2.5L petrol), Mazda 3 (2.0L, 2.5L petrol), Mazda 6 (2.0L, 2.5L petrol)
