Main Specifications
Condition (used, new):
used and inspected
Type:
Drum High/Low Clutch
Number of friction plates:
5 / 5
If you order more than 7 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 4 pcs. |
  |
| Poland | 3 pcs. |
|
| Ukraine | 57 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)
Drum:
- Total drum height - 65 mm;
- Drum outer diameter - 169.80 mm;
- The inner diameter of the hole for the oil pump hub is 52.60 mm;
Low Clutch Steel and Friction Disc Set:
- Total thickness of the set [without wave spring disc] - 21.20 mm / 24.30 mm;
- Height from piston to retaining ring - 23 mm;
Support disk:
- Thickness - 3.15 mm (6.25 mm);
- Number of teeth - 40 pcs.;
- Inner diameter - 139.75 mm;
- Quantity in the set - 1 pc.;
Friction disc:
- Thickness - 1.50 mm;
- Number of teeth - 40 pcs.;
- Outer diameter - 159.15 mm;
- Quantity in the set - 5 pcs.;
Steel disk:
- Thickness - 2 mm;
- Number of teeth - 40 pcs.;
- Inner diameter - 139.75 mm;
- Quantity in the set - 5 pcs.;
Spring disc:
- Thickness - 0.95 mm;
- Inner diameter - 144.30 mm;
- Number of teeth - 40 pcs.;
- Number of teeth in the set - 1 pc.;
High Clutch Steel and Friction Disc Set:
- Total thickness of the set [without wave spring disc] - 19.50 mm;
- Height from piston to retaining ring - 20 mm;
Support disk:
- Thickness - 2.10 mm;
- Number of teeth - 32 pcs.;
- Inner diameter - 95.65 mm;
- Quantity in the set - 1 pc.;
Friction disc:
- Thickness - 1.45 mm;
- Number of teeth - 28 pcs.;
- Outer diameter - 116.85 mm;
- Quantity in the set - 5 pcs.;
Steel disk:
- Thickness - 1.97 mm;
- Number of teeth - 32 pcs.;
- Inner diameter - 95.50 mm;
- Quantity in the set - 5 pcs.;

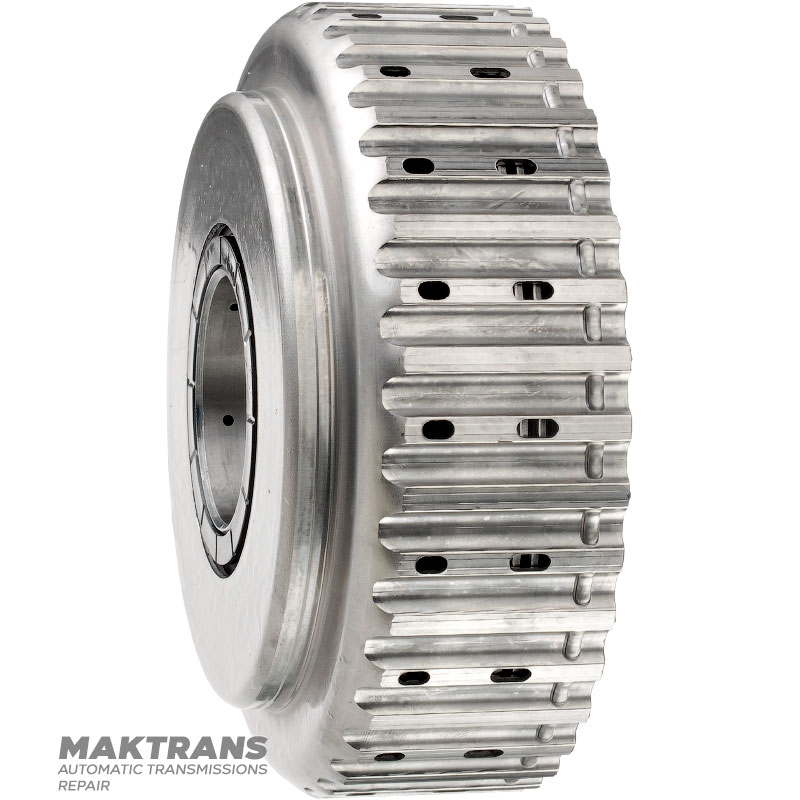

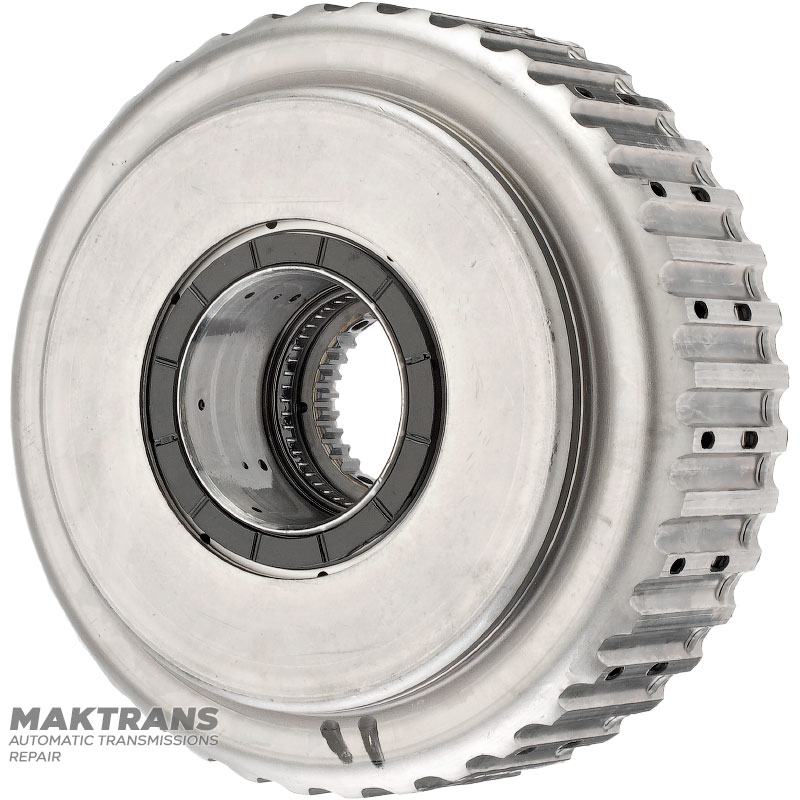

High-Low Drum Assembly FW6A-EL, FW6AX-EL. The outer pack transmits rotation from 1st to 4th gear. The inner pack transmits rotation from 4th to 6th gear.
Mazda CX-5 (2.0L, 2.5L petrol), Mazda 3 (2.0L, 2.5L petrol), Mazda 6 (2.0L, 2.5L petrol)
FZ2119545A, FZ2119324 - High drum bearings
FZ21195DY - High Drum
FZ21194F5 - steel disk (wave)
FZ2119571, FZ2119590B - High-grade friction discs
FZ2119580, FZ2119580A, FZ2119334 - High-grade steel drum discs
FZ2119378B, FZ21195K2 - High-quality drum pressure discs
FZ21195D2 - High piston
FZ21195E0 - spring
FZ21198Z0 - seal
