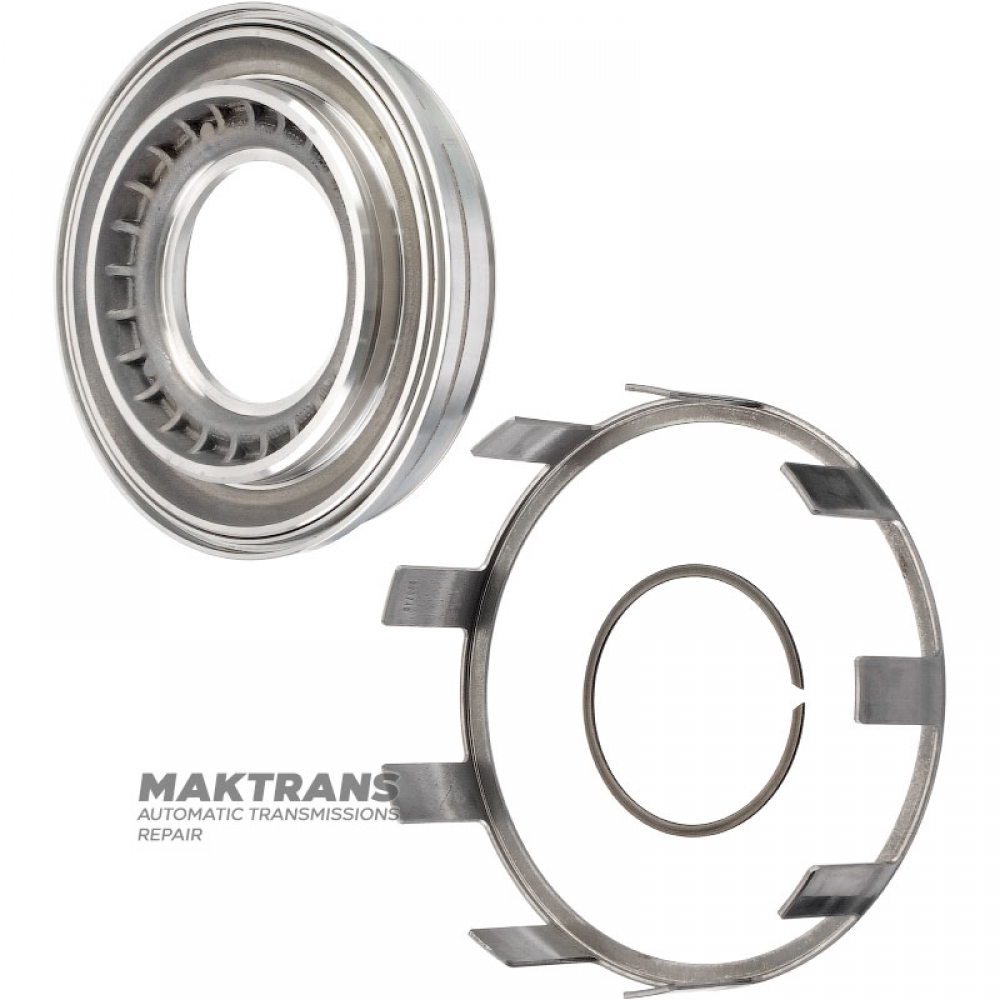

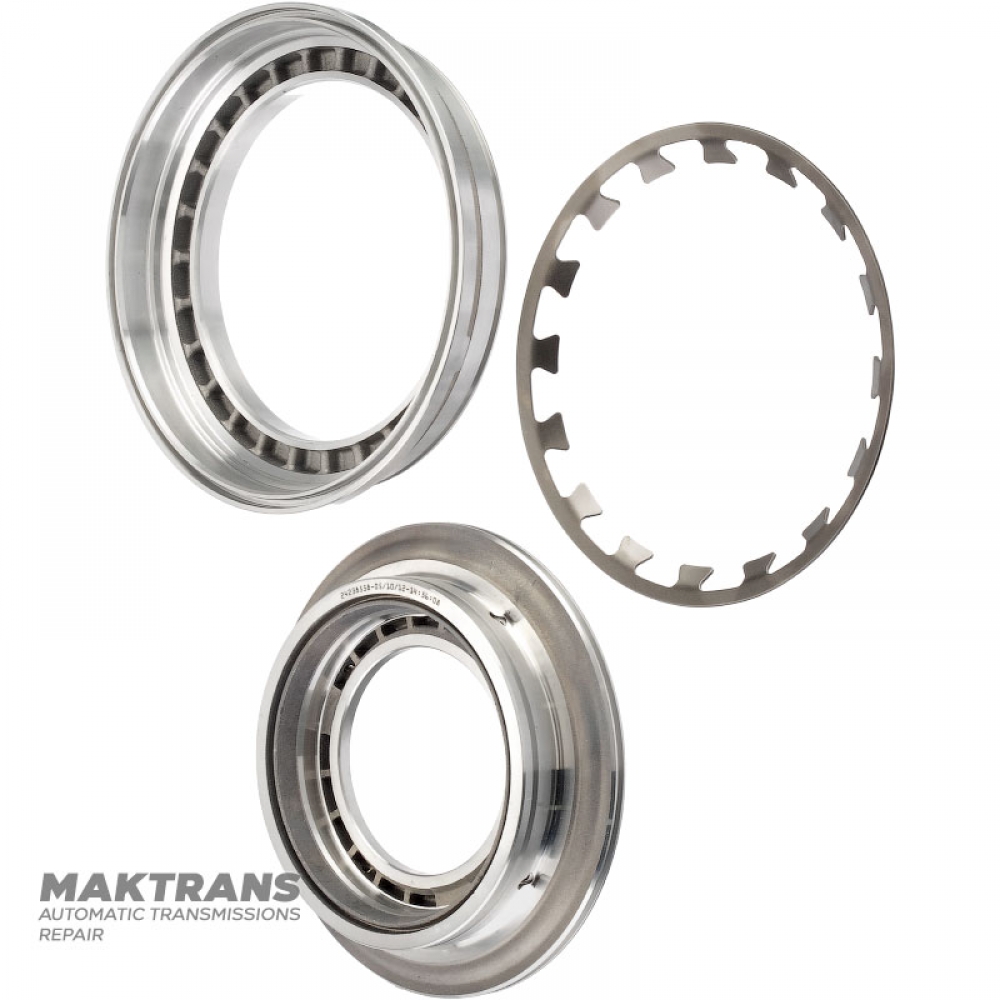

GM 6L50 3-5-R Clutch / 1-2-3-4 Clutch Piston Kit - 24242878, 24238560, 24236051, 24262872, 24238559, 24238558, 24241073, 24225748

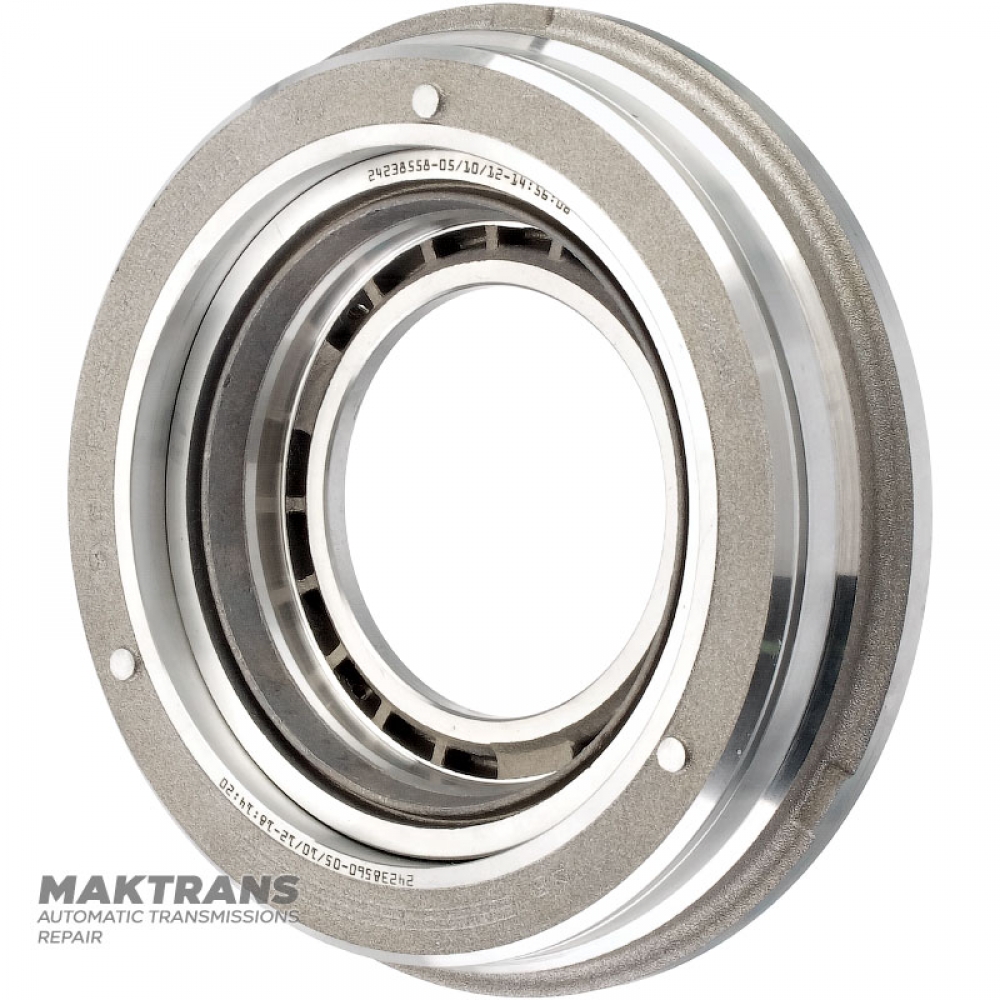

Piston 1-2-3-4 Clutch:

• Overall height - 40.35 mm;

O.D:

• 132.80 mm;
• 168.25 mm;
• 130.50 mm;
• Inner diameter - 80.10 mm;

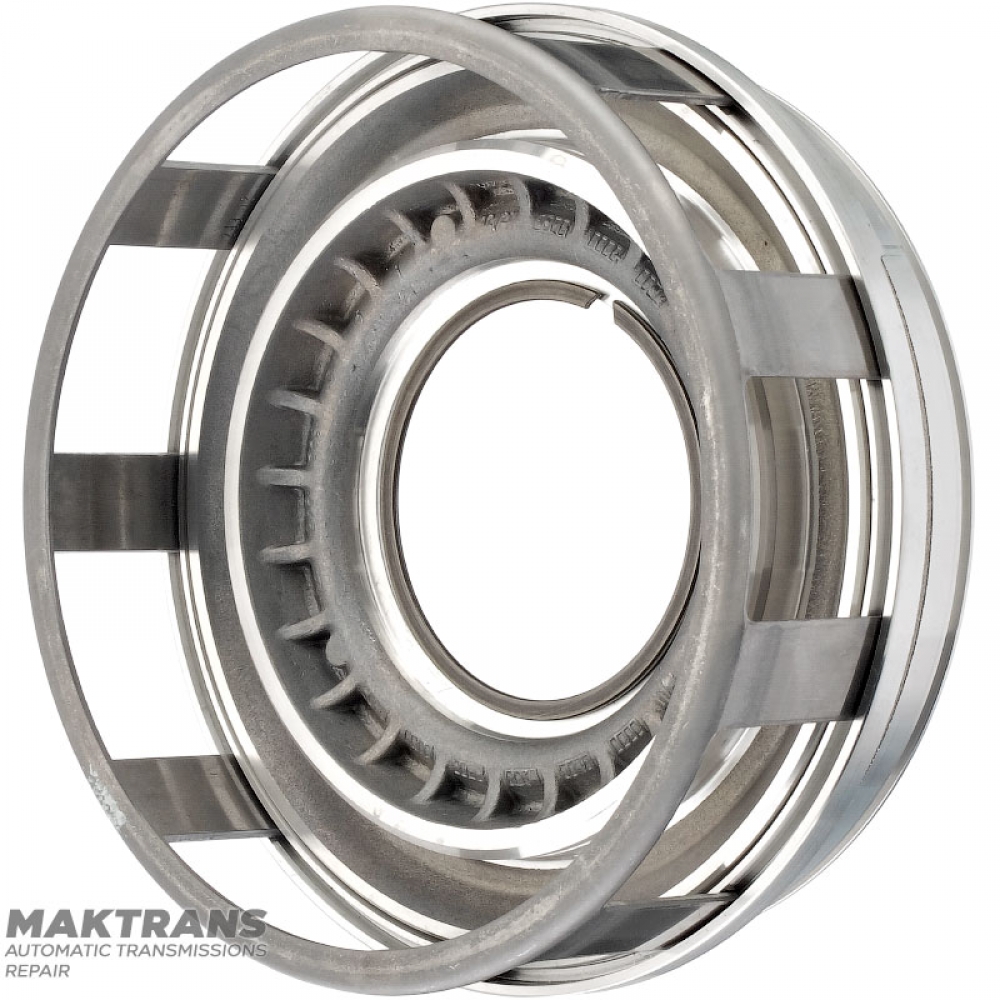

1-2-3-4 Clutch Piston Return Spring:

• Thickness - 1.30 mm;
• Outer diameter - 161.20 mm;

Piston 3-5-R Clutch:

• Overall height - 36 mm;
• Outer diameter - 184.40 mm / 168.20 mm;
• Inner diameter - 130.35 mm / 168.25 mm;

Pressure Plate (Crown) 3-5-R Clutch:

• Height - 45.85 mm;
• Outer diameter - 178.80 mm;

Tags: 24242878, 24238560, 24236051, 24262872, 24238559, 24238558, 24241073, 24225748
