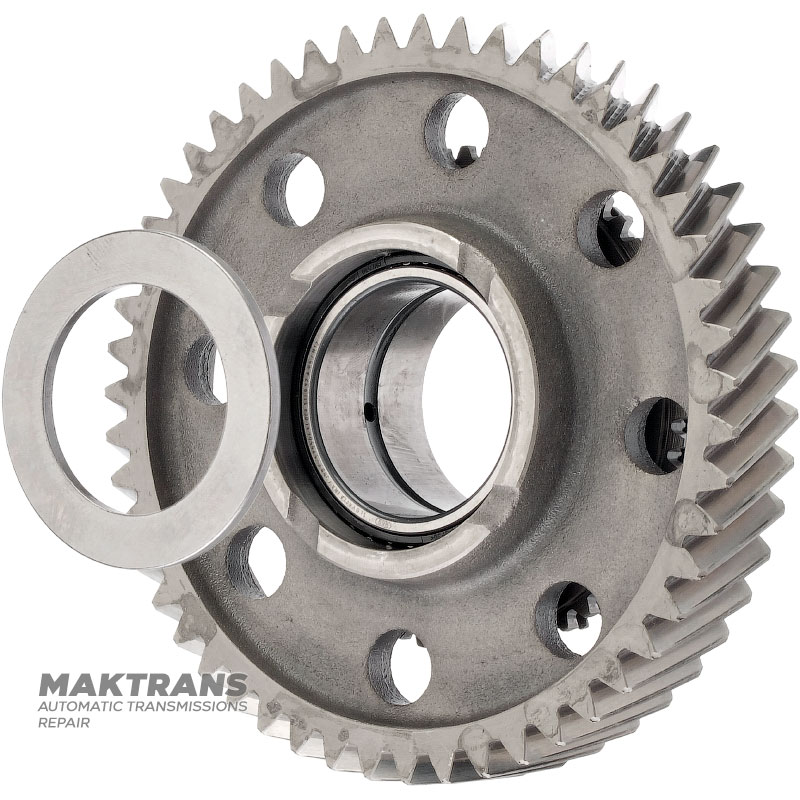

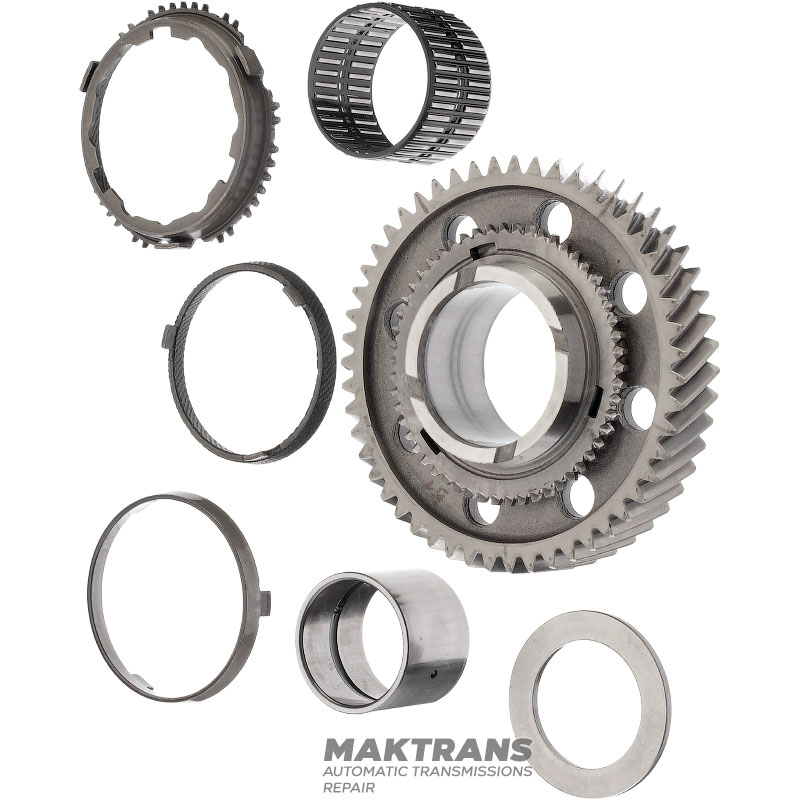

Helical gear 1st gear (with blocking ring) VAG DSG 0CK 0CL 0CJ (DL382) 0CK311250K, 0CK311250H — 51 teeth (outer Ø 134.25 mm, inner Ø 52 mm)

• Overall gear height - 37.75 mm;
• Number of teeth - 51 pcs.;
• Gear outer diameter - 134.10 mm;
• Inner diameter of gear - 52 mm;

Needle bearing:

• Width - 34.65 mm;
• Outer diameter - 51.65 mm;
• Inner diameter - 41.85 mm;

Inner bearing race:

• Width - 35 mm;
• Outer diameter - 47 mm;
• Inner diameter - 41 mm;
• Marking - INA / JN8 F-575504.KI 0CK311937A;

Distance washer:

• Outer diameter - 61.20 mm;
• Inner diameter - 41.15 mm;
• Thickness - 3 mm;

Synchronizer locking ring (consists of 3 elements):

• Number of teeth - 30 pcs.;
• Outer diameter of the gear ring - 90.15 mm;
• Marking - 0CK311247;

Tags: 0CK311937A, 0CK311283
