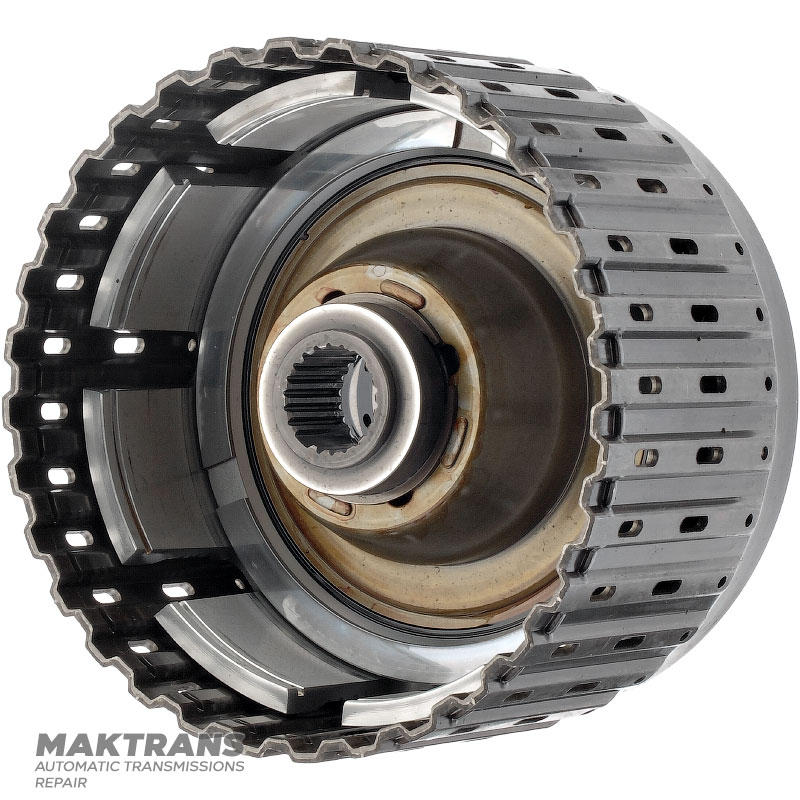

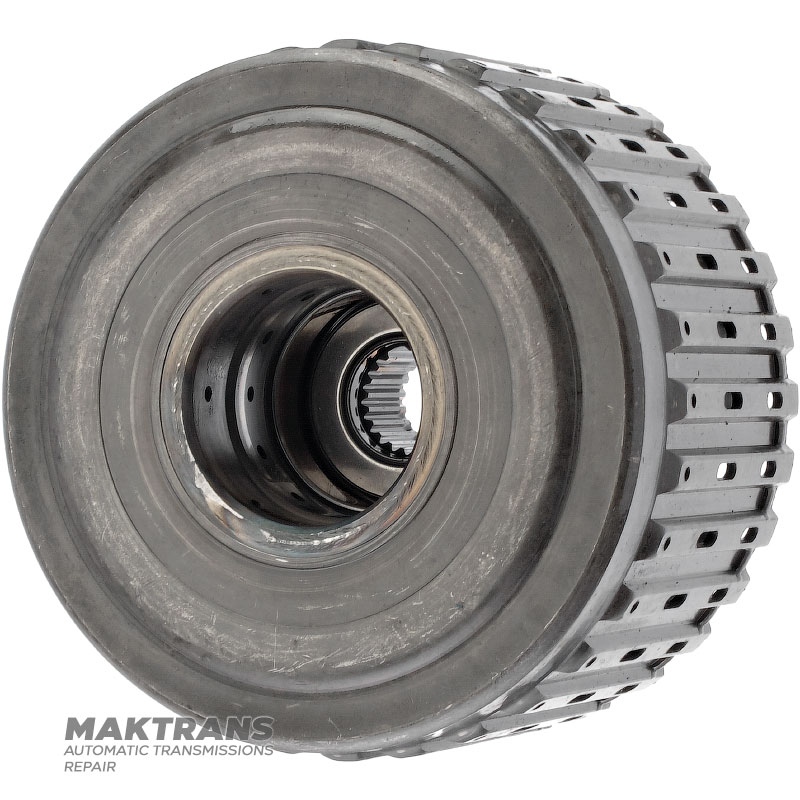

High Clutch Drum (6 friction discs) / Reverse Clutch (2 friction discs) JATCO (ISUZU / MAZDA) JR405E — 8973309780, 8973577990, 8973310070, 8973310060

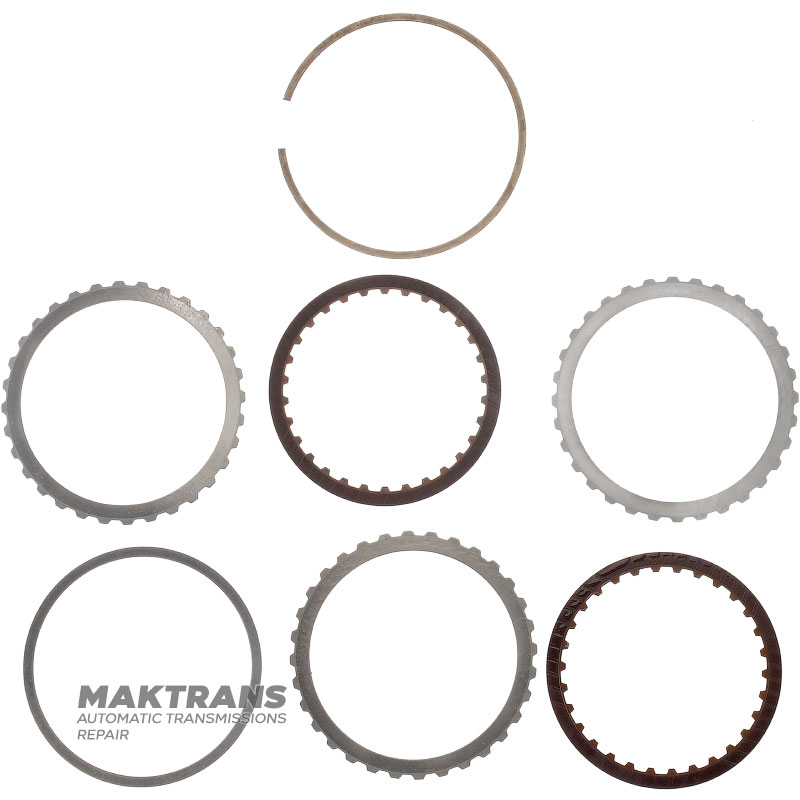

Reverse Clutch Steel and Friction Disc Kit:

• Height from piston to retaining ring - 19 mm;
• The total thickness of the set is 11.45 mm;

Support disk:

• Thickness - 5 mm;
• Inner diameter - 124.85 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 142.05 mm;
• Number of teeth - 30 pcs.;
• Number of teeth in the set - 2 pcs.;

Steel disk:

• Thickness - 1.60 mm;
• Inner diameter - 124.90 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 2 pcs.;

Spring disc:

• Thickness - 1.40 mm;
• Outer diameter - 144.40 mm;
• Inner diameter - 131.30 mm;
• Number of discs in the set - 1 pc.;

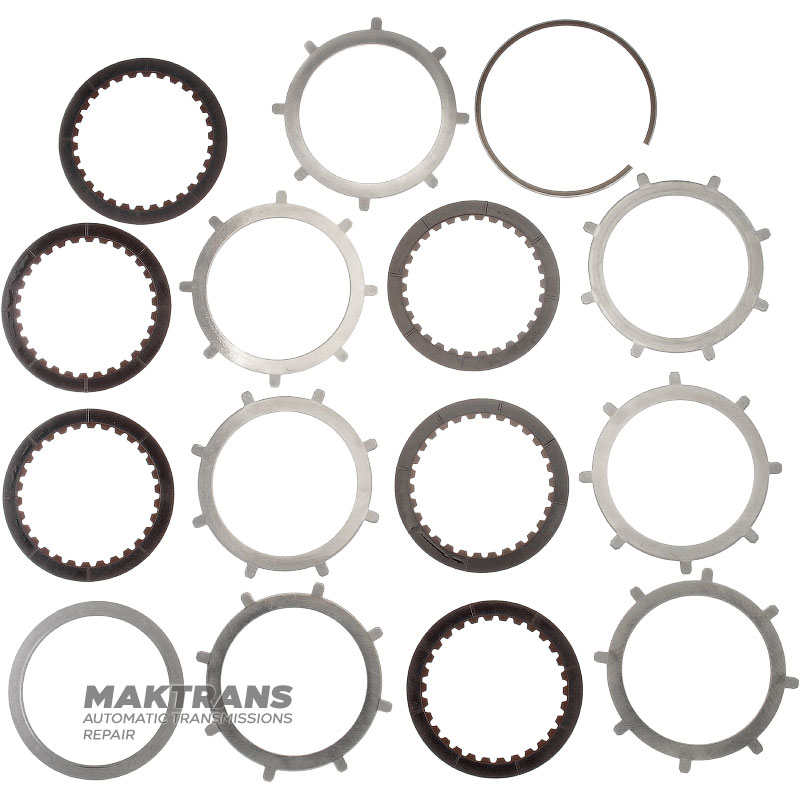

High Clutch Steel and Friction Disc Kit:

• Height from piston to retaining ring - 29.50 mm;
• The total thickness of the set is 26.60 mm;

Support disk:

• Thickness - 4.80 mm;
• Inner diameter - 107.05 mm;
• Number of teeth - 8 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 129.25 mm;
• Number of teeth - 30 pcs.;
• Number of teeth in the set - 6 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 106.80 mm;
• Number of teeth - 8 pcs.;
• Number of discs in the set - 6 pcs.;

Spring disc:

• Thickness - 1.50 mm;
• Outer diameter - 131 mm;
• Inner diameter - 108.15 mm;
• Number of discs in the set - 1 pc.;
