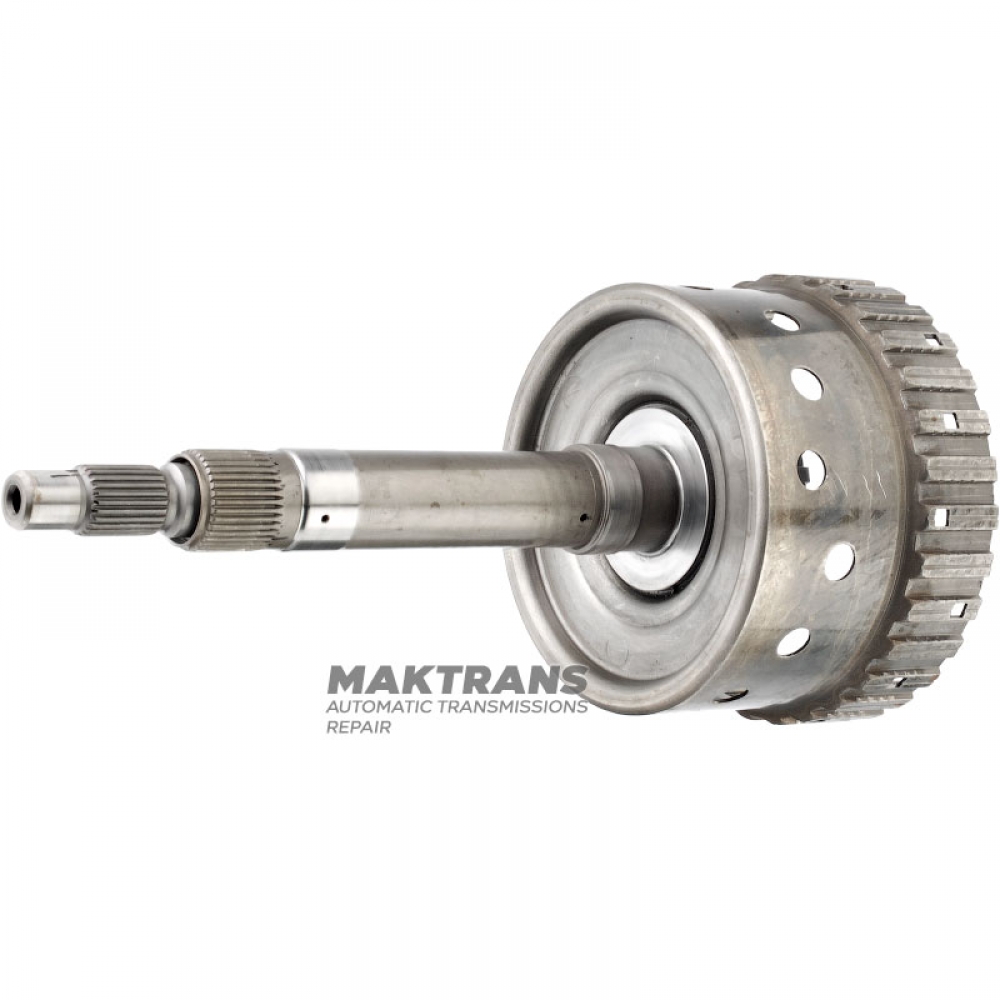

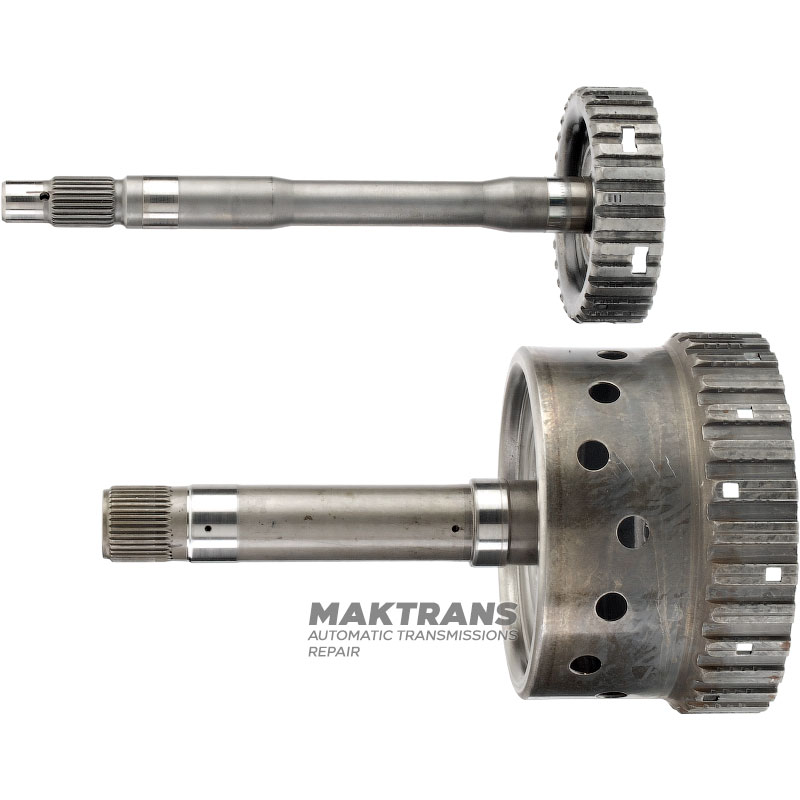

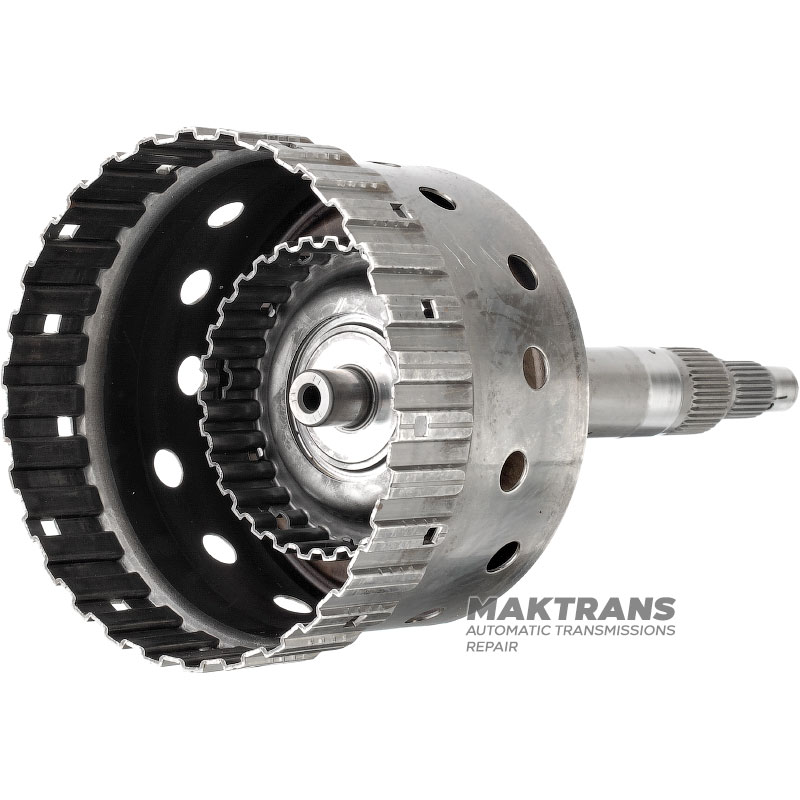

Hub kit A Clutch / E Clutch ZF 6HP19 6HP19A 6HP21

A Clutch Hub:

• Overall height - 258 mm;
• Inner diameter of the sleeve - 22.05 mm;
• Number of splines - 37 pcs.;
• The outer diameter of the splined part is 30 mm;
• The outer diameter of the working parts of the shaft is 30.95 mm;
• Hub height - 95 mm;
• The outer diameter of the hub is 150.85 mm;

E Clutch Hub:

• Overall height - 259 mm;
• Number of splines on the shaft - 25 pcs.;
• The outer diameter of the splined part is 20.50 mm;

External diameters of the working parts of the shaft:

• 16.90 mm;
• 21.60 mm;
• 22.75 mm;
• 16.90 mm;

• Hub height - 27.45 mm;
• The outer diameter of the hub is 95.10 mm;
