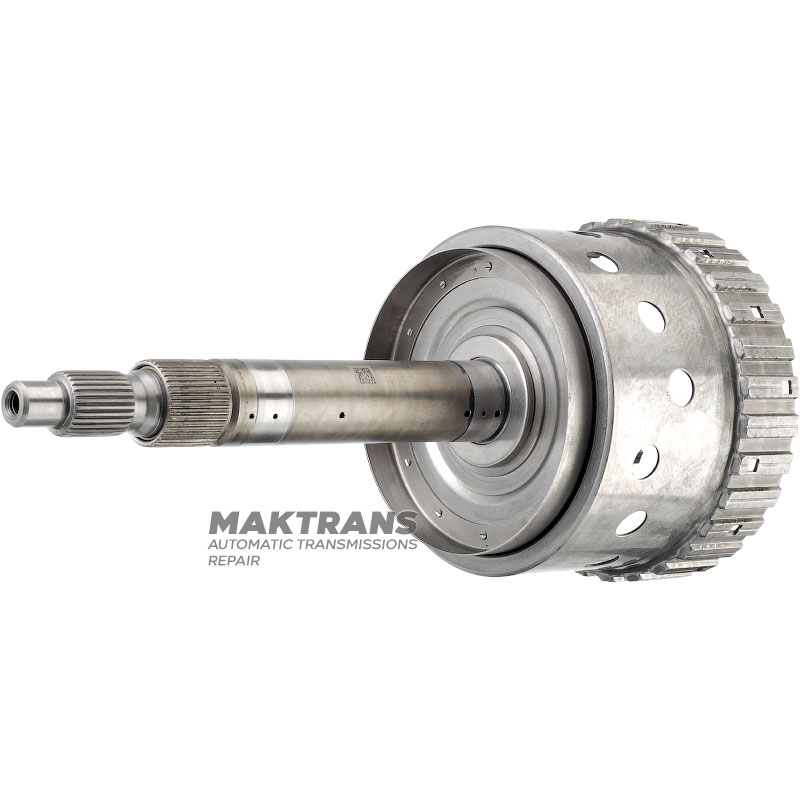

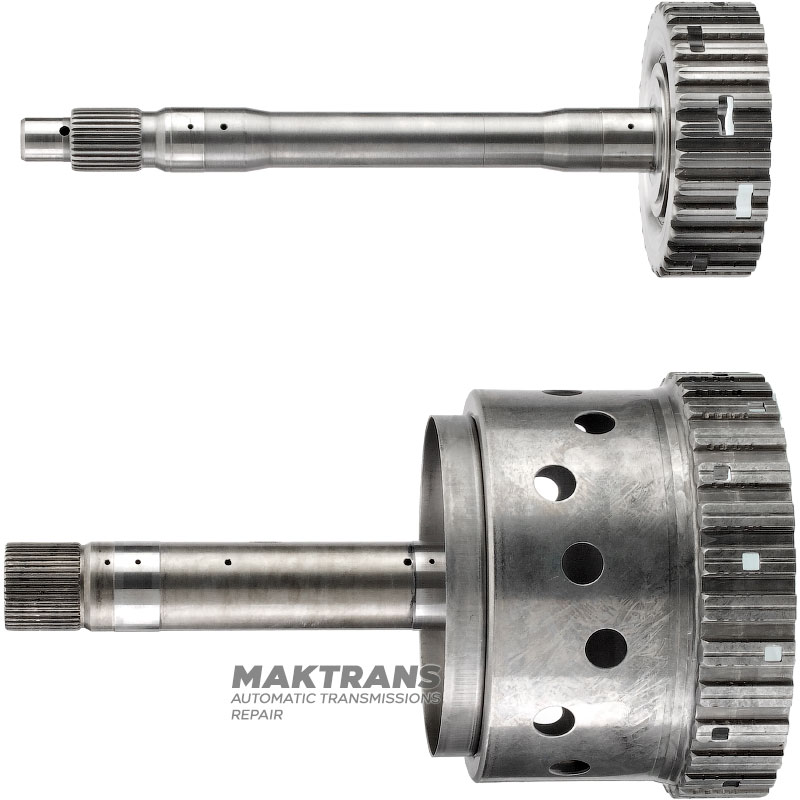

Hub set A Clutch / E Clutch ZF 6HP26 1068 271 122 — (ext. Ø hub E Clutch 25.15 mm)

A Clutch Hub:

• Overall height - 283 mm;
• Inner diameter of the sleeve - 25.35 mm;
• Number of splines - 41 pcs.;
• The outer diameter of the splined part is 33.05 mm;
• The outer diameter of the working parts of the shaft is 33.95 mm;
• Hub height - 124 mm;
• The outer diameter of the hub is 160.05 mm;

E Clutch Hub:

• Overall height - 278 mm;
• Number of splines on the shaft - 29 pcs.;
• The outer diameter of the splined part is 23.45 mm;

External diameters of the working parts of the shaft:

• 17 mm;
• 25.15 mm;
• 25.15 mm;
• 17 mm;

• Hub height - 37.70 mm;
• The outer diameter of the hub is 105.25 mm;
