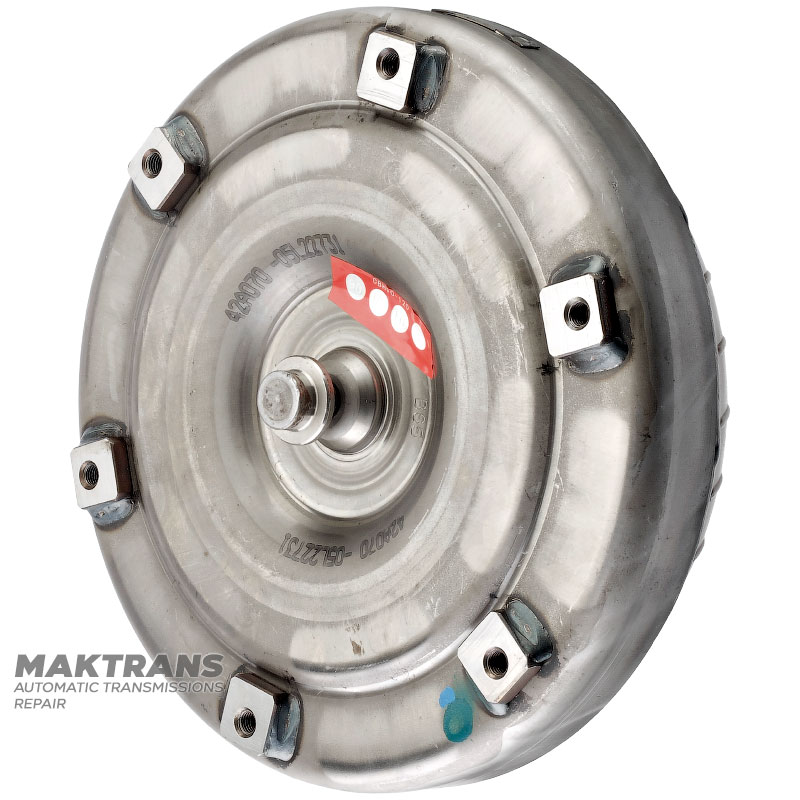

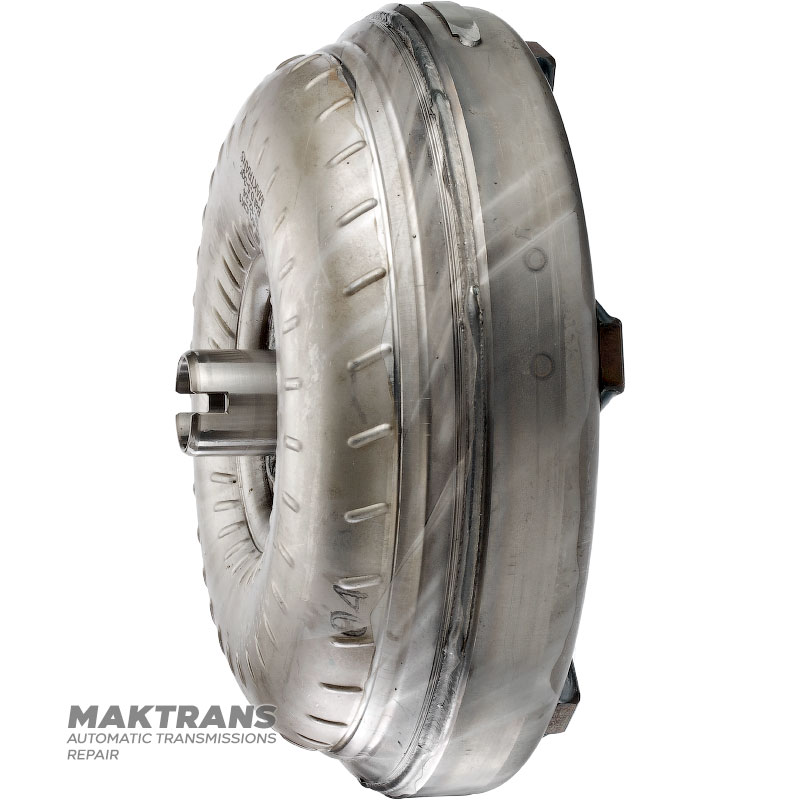

Hydraulic Converter (Rebuilt) TOYOTA A960E, A760E 42A070 32000-50050 — Lexus GS300 3.0L (2005 - 2012)

• Overall height - 137 mm;
• Neck height - 40 mm;
• Outer diameter of the neck - 38.05 mm;
• Outer body diameter - 283.50 mm;
• Number of mounting holes - 6 pcs.;
• Pilot height - 36.50 mm;
• Pilot outer diameter - 32 mm (20.95 mm);
• The inner diameter of the mounting hole is 7.75 mm;
• The radius from the center of the pilot to the center of the mounting hole is 122 mm;
• The distance between the centers of the mounting holes is 122 mm;

Markings on the torque converter housing:

On the pump wheel:

• 42A070;

On the front cover (pilot side):

• green dot;
• stamp - B65;

Tags: 32000-30390, 32000-30420, 32000-50040, 32000-50050
