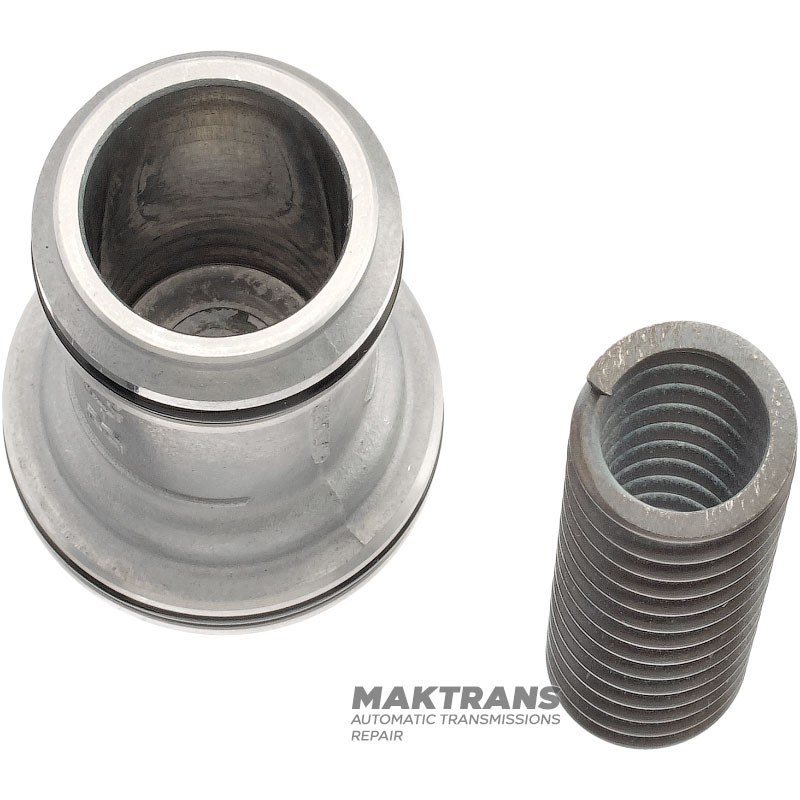

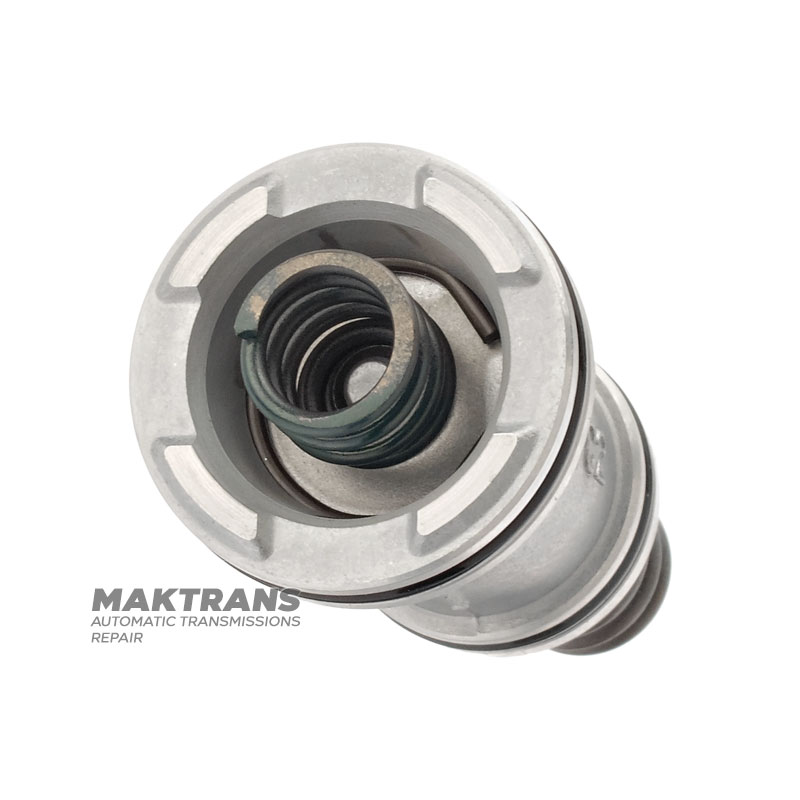

Hydroaccumulator housing (aluminum) C2 Clutch TOYOTA A750E, A750F, A760E, A760F — 9030128008, 9030120008, 9050122062

Hydroaccumulator housing (aluminum) C2 Clutch TOYOTA A750E, A750F, A760E, A760F — 9030128008, 9030120008, 9050122062
Hydroaccumulator housing (aluminum) C2 Clutch TOYOTA A750E, A750F, A760E, A760F — 9030128008, 9030120008, 9050122062
Hydroaccumulator housing (aluminum) C2 Clutch TOYOTA A750E, A750F, A760E, A760F — 9030128008, 9030120008, 9050122062

Worldwide Shipping 🌎

Product Code:
AL-C3-WS
Product model copied to clipboard
Brand
TOYOTA
Availability: 1
Weight (kg): 0.2
€11.61

Shipping Icon Shipping to United States from €47.27

Main Specifications
Condition (used, new): used and inspected
Type: Hydraulic accumulator C2
Installation location: Transmission housing
Available Options
Stock Place: Availability: Price: Qty:
Ukraine 1 pcs. €11.61
Add to cart
Add to cart
  • Product overview
  • Shipping & Payment
  • Questions - Answers (0)

Piston body:

  • Height - 52.40 mm;
  • Outer diameter - 26.15 mm / 33.85 mm;




Return springs:

Spring (installed in the piston):

  • Length - 16.60 mm;
  • Outer diameter - 14 mm;
  • Rod diameter - 1.90 mm;




Return spring (removable):

  • Length - 61.25 mm;
  • Spring outer diameter - 16 mm;
  • Rod diameter - 2.25 mm;



Tags: 3520722010, 9052122004, 3542550020, 3542560060, 9030120008, 9030128008, 9050122062
